E series Planetary Gearbox Replacement of Brevini Riduttori E10 E16 E25 E30 E50 E80 E120 E160 E260

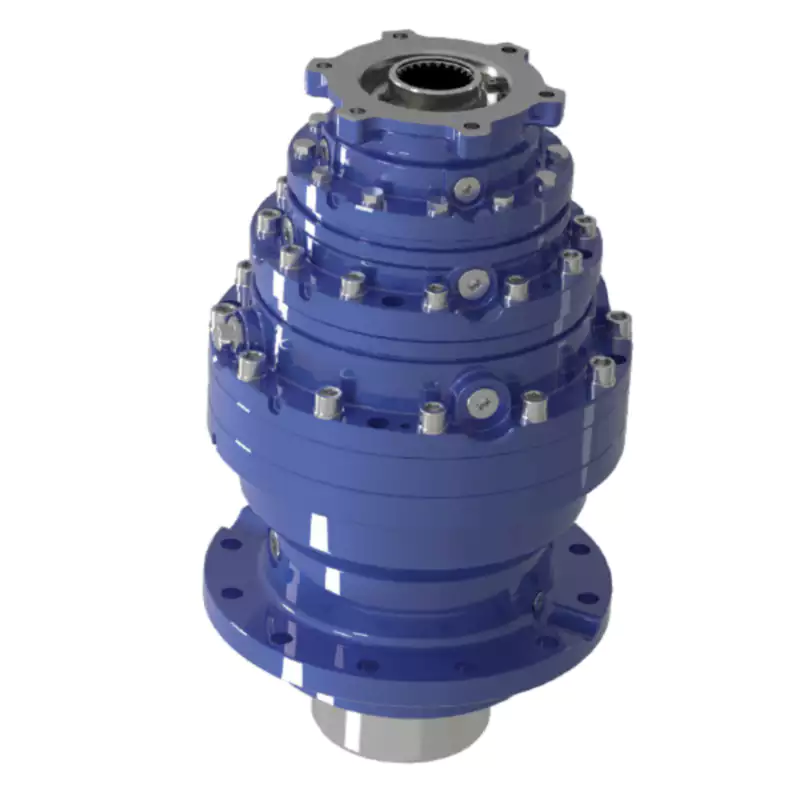

E series Planetary Gearbox
This innovative planetary gear mechanism suits industrial applications with medium power and torque. It is the response of Power-trans to the needs of global customers, who require higher performance in compact and limited space.
The new E Series relaunches the modularity concept advocated by Power-trans for half a century and has been enhanced through many technological innovations.
Interchangeable models
Our planetary gear unit, wheel drive gearbox, winch drive gearbox, and track drive unit can be interchangeable with the following models produced by Brevini Riduttori
EM1010 | ED2010 | ET3010 | EQ4010 | EC2010 | EC3010 | EC4010 |
EM1020 | ED2020 | ET3020 | EQ4020 | EC2020 | EC3020 | EC4020 |
EM1030 | ED2030 | ET3030 | EQ4030 | EC2030 | EC3030 | EC4030 |
EC4040 | ED2040 | ET3040 | EQ4040 | EC2040 | EC3040 | EC4040 |
EM1045 | ED2045 | ET3045 | EQ4045 | EC2045 | EC3045 | EC4045 |
EM1046 | ED2046 | ET3046 | EQ4046 | EC2046 | EC3046 | EC4046 |
EM1065 | ED2065 | ET3065 | EQ4065 | EC2065 | EC3065 | EC4065 |
EM1067 | ED2067 | ET3067 | EQ4067 | EC2067 | EC3067 | EC4067 |
EM1090 | ED2090 | ET3090 | EQ4090 | EC2090 | EC3090 | EC4090 |
EM1091 | ED2091 | ET3091 | EQ4091 | EC2091 | EC3091 | EC4091 |
EM1150 | ED2150 | ET3150 | EQ4150 | EC2150 | EC3150 | EC4150 |
EM1155 | ED2155 | ET3155 | EQ4155 | EC2155 | EC3155 | EC4155 |
EM1250 | ED2250 | ET3250 | EQ4250 | EC2250 | EC3250 | EC4250 |
EM1255 | ED2255 | ET3255 | EQ4255 | EC2255 | EC3255 | EC4255 |
EM1320 | ED2320 | ET3320 | EQ4320 | EC2320 | EC3320 | EC4320 |
Parameter of E series planetary gearbox
Size | Torque n₂ x h [10.000] [Nm] |
Max Torque [Nm] |
---|---|---|
E10 | 1.480 | 2.200 |
E16 | 2.365 | 3.400 |
E25 | 3.970 | 5.200 |
E30 | 4.880 | 6.500 |
E50 | 6.300 | 7.500 |
E80 | 11.200 | 12.500 |
E120 | 16.800 | 20.000 |
E160 | 24.200 | 34.000 |
E260 | 36.600 | 45.000 |
Features of E series planetary gearbox
- Flange, shaft, and base mounting options
- Cylindrical keyed output shaft: external thread and internal thread for flange installation, internal thread for shaft installation, and external thread for base installation
- Splined output shaft, male and female, for flange mounting
- Cylindrical internal thread output shaft with shrink disc for shaft installation
- The modular composition of 1 to 6 reduction stages (2-6 with bevel gears)
- Various adapters for hydraulic and electric motors
- Solid input shaft
- Spring applied hydraulic release (Sahr) brake
- Spline male output shaft accessory
- Fluororubber seals for high-temperature environments
- Particular painting cycle according to EN ISO 12944
