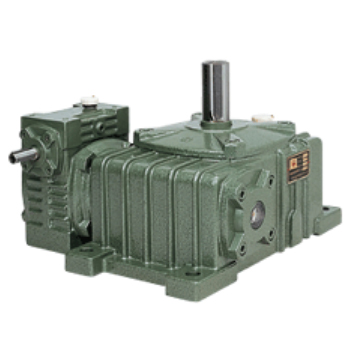

EO Series Double Worm Gear Reducer
EO Series Double Worm Gear Reducer

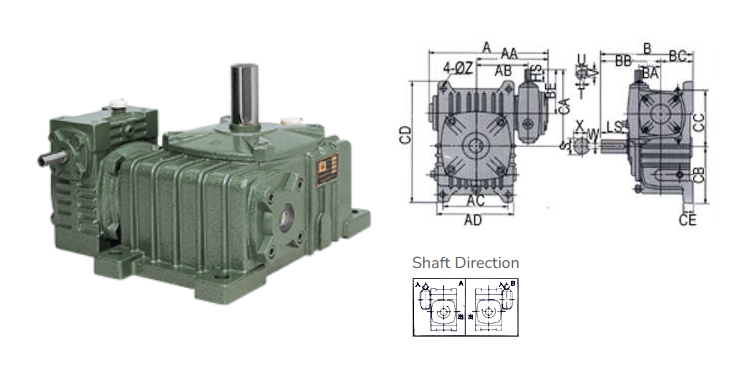

SIZE | RATIO | A | AA | AB | AC | AD | B | BA | BB | BC | BE | CA | CB | CC | CD | CE | Z | INPUT SHAFT | OUTPUT SHAFT | |||||||
HS | U | T | V | LS | S | W | X | |||||||||||||||||||
50-80 | 1/200 1/300 1/400 1/500 1/600 1/800 1/900 | 289 | 184 | 132 | 140 | 176 | 210 | 50 | 140 | 70 | 105 | 185 | 130 | 150 | 320 | 20 | 15 | 30 | 12 | 4 | 9.5 | 65 | 32 | 10 | 27.5 | |
60-100 | 352 | 219 | 161 | 190 | 226 | 245 | 60 | 155 | 90 | 120 | 220 | 155 | 180 | 375 | 30 | 15 | 40 | 15 | 5 | 12 | 75 | 38 | 10 | 33.5 | ||
70-120 | 417 | 258 | 195 | 220 | 266 | 285 | 70 | 185 | 100 | 140 | 260 | 185 | 215 | 450 | 30 | 18 | 40 | 18 | 5 | 15 | 85 | 45 | 12 | 40.5 | ||
80-135 | 462 | 287 | 211 | 260 | 306 | 320 | 80 | 210 | 110 | 160 | 295 | 210 | 235 | 495 | 35 | 18 | 50 | 22 | 7 | 18 | 95 | 55 | 15 | 50 | ||
100-155 | 542 | 349 | 257 | 290 | 350 | 392 | 100 | 252 | 140 | 190 | 345 | 245 | 295 | 590 | 40 | 20 | 50 | 25 | 7 | 21 | 110 | 60 | 15 | 55 | ||
120-175 | 585 | 376 | 275 | 320 | 394 | 412 | 120 | 262 | 150 | 230 | 405 | 267 | 323 | 640 | 45 | 20 | 65 | 30 | 7 | 26 | 110 | 65 | 18 | 59 |
