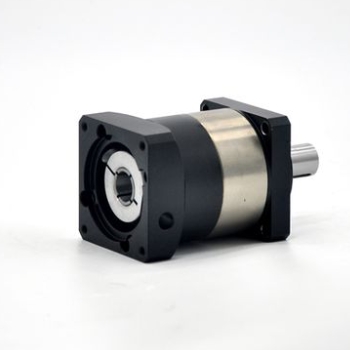

F Economy Flange Output Planetary Gearbox Reducer
Overview of F Economic Planetary Gearboxes
- Good adoptability, which could match with all brands servo motors
- Two multinational patents on the lubrication structure
- High transmission efficiency, which is up to 97%
- Low backlash is 3 arc-min
- Any installation direction
- Smooth operating and low noise

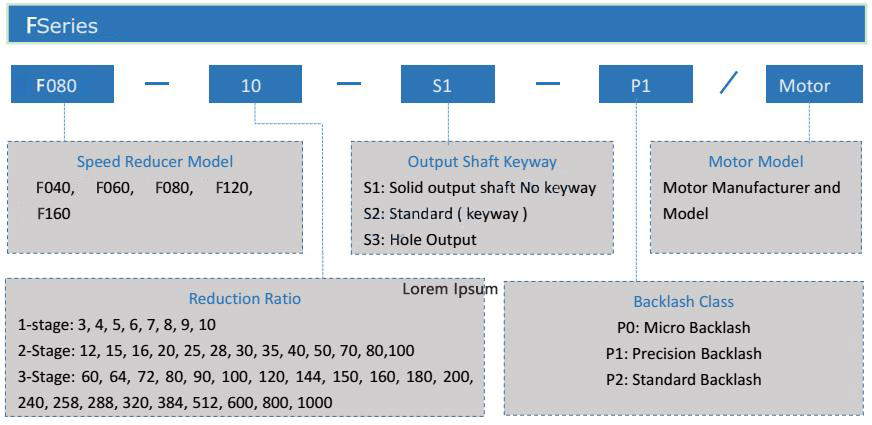

Indication of Model Numbers of F Planetary Reducers
Descriptions of F Series Economic Planetary Gearbox
Our company’s famous F series standard planetary gearbox(F Planetary Reducers) is a precision in-line gearbox or coaxial reducer with a square flange to ensure the stability of the reducer. Our famous brand reducer planet carrier is designing with a double support structure, and the front and rear bearings are distributing in the box with a large span, forming a stable overall structure to ensure higher rigidity and precision. The main transmission structure of the planetary reducer consists of a sun gear, three planetary gears and a ring gear, all of which are keeping in constant mesh. The working principle of the reducer is to reduce the motor speed and increase the transmission torque.
Features of F Series Economic Planetary Gearbox
- High rigidity & high torque
The F series standard planetary gearbox is equipped with a compact structure with the use of a high-quality alloy steel shell and uncaged needle roller bearings, which guarantee the high rigidity and high torque of the VRL planetary speed reducer.
- High positioning accuracy
The gear of F economic planetary gearbox is working with the imported helical gear by high processing technology from Germany. Besides, the backlash is lower to 3 arcmins.
- Good sealing and no leakage
The F gearbox adopts full synthetic lubricating oil with high viscosity, which makes the speed reducer runs smoothly.
- Excellent wear resistance
The gear material is making of high-quality alloy steel and carbonitriding to obtain the best wear resistance and impact toughness.
Applications
F economical planetary gearboxes are widely used in CNC machine tools, cutting and welding equipment, textile printing, and dyeing machinery, packaging machinery, food machinery, medical machinery, data communication systems, robots, robotic arms, composite material equipment, precision testing instruments, testing machines, plastics Machinery, glass machinery, coal mining machinery, lifting machinery, metallurgical machinery, construction machinery, and other industries.

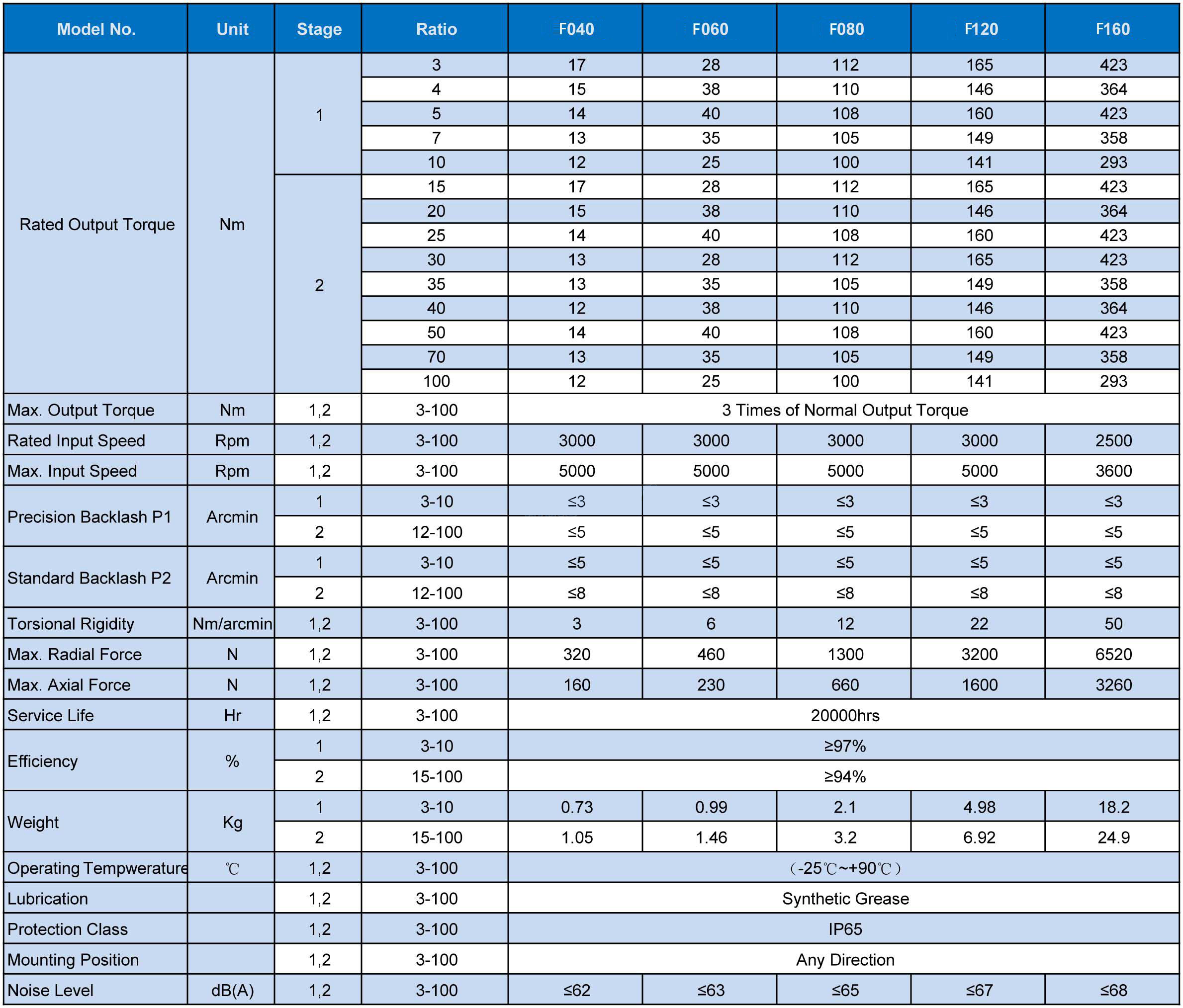

Specification Table of F Planetary Gear Reducer

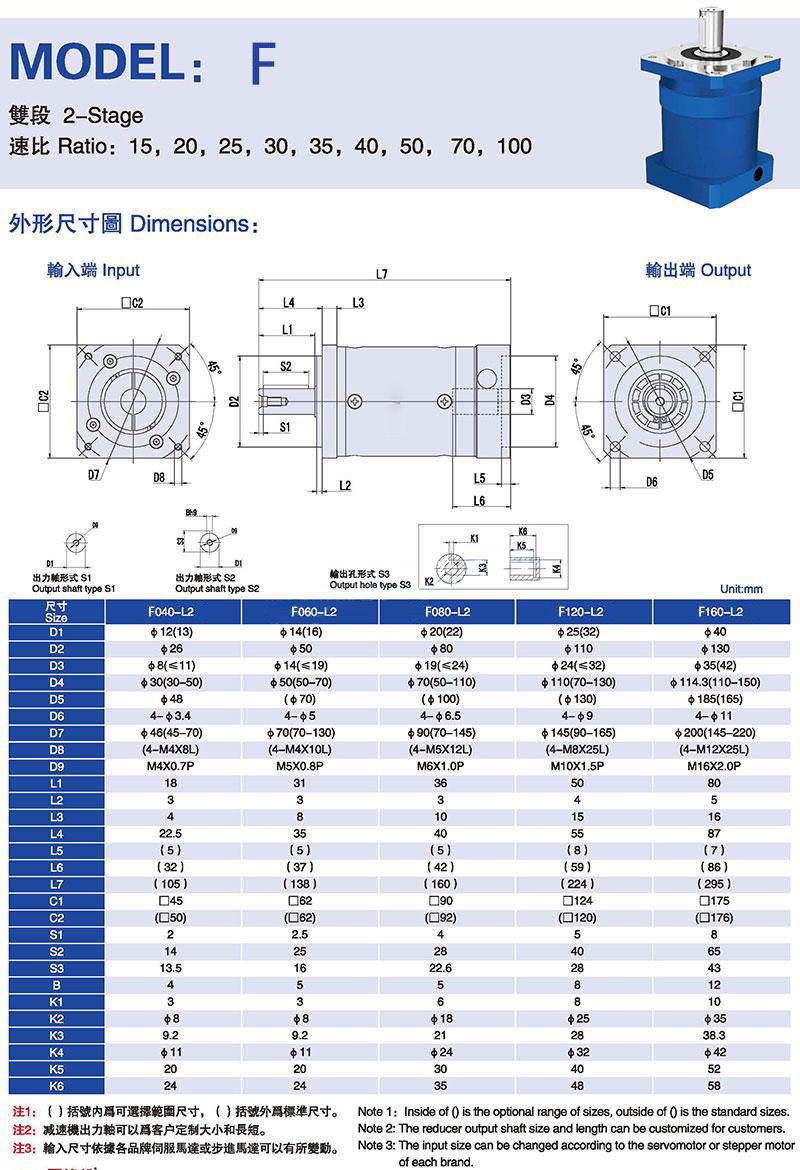

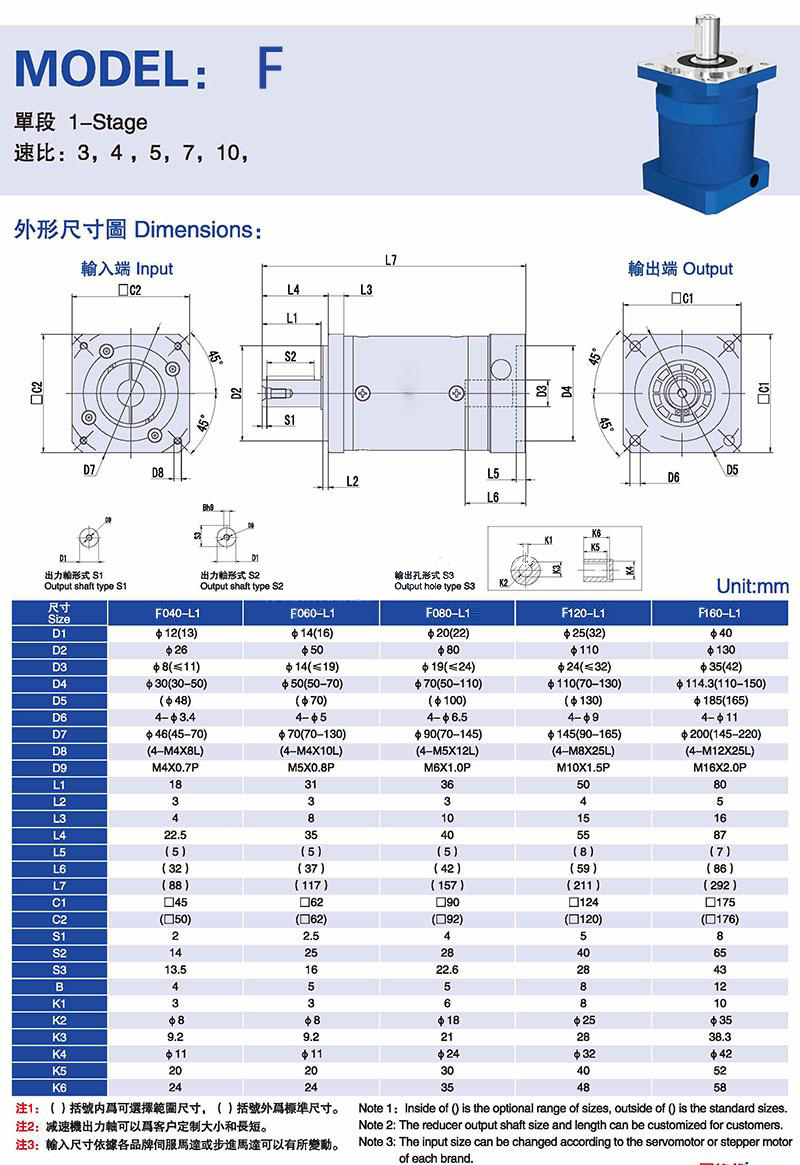

Catalog of F Precision Speed Reducer
Packing Shipping Delivery
  |
 |
|
 |
 |
|
How to choose power transmissions parts and industrial products which meet our requirement
| Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
| Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
| Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
| Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
| Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
| Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
| Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
| Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
Can you give me discount on Power Transmissions Parts and Industrial parts?
-Yes, of course. Pls. send me your Email, you'll get more
Q: Are You a trading company or a manufacturer?
A: We Are the factory and have our Own trading company
Q: How Can I get an offer?
A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.
Q: What is your minimum order size?
A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't pay the freight.
Q: What is the lead time for mass production?
A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.
Q: What if the parts don't Work?
A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.
Q: What are your terms of payment?
A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable
