F Series Parallel Shaft Helical Gearbox
F series helical gearbox(F series Geared Motor) is a parallel shaft helical gearbox, and its input shaft and output shaft are parallel. The F series parallel shaft helical gearbox has the advantages of compact structure, large transmission torque, stable operation, low noise, and long service life. The basic two-stage input and output rotate in the same direction, while the third stage rotates in the opposite direction. It can be used in combination with R series helical gearbox. The average efficiency is 96% for the basic two-stage, 94% for three stages, and 85% for the F Series and R Series combination.

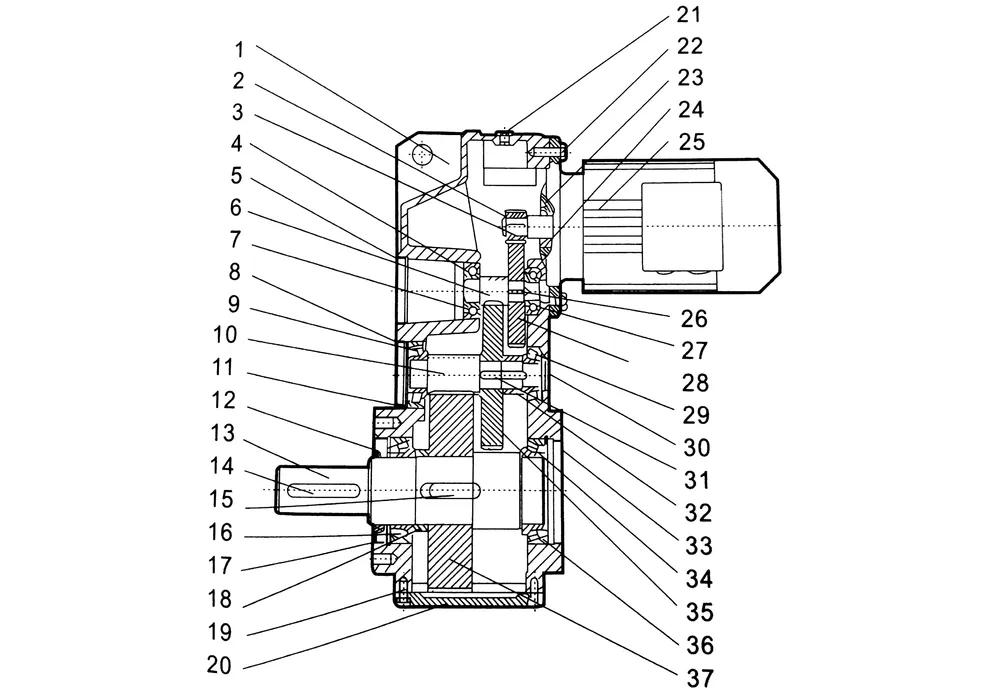

F Series Parallel Shaft Helical Gearbox Parts(F series Geared Motor) Diagram
1、Housing
|
2、Retaining Rings for Shafts I
|
3、Input Gear
|
4、Retaining Rings for Bores I
|
5、Seal I
|
6、Gear Shaft II
|
7、Bearing I
|
8、Seal II
|
9、Bearing II
|
10、Gear Shaft III
|
11、Retaining Rings for Bores II
|
12、Output Shaft Seal
|
13、Output Shaft
|
14、Flat Key I
|
15、Flat Key II
|
16、Bearing III
|
17、Retaining Rings for Shafts III
|
18、Spacer Tube III
|
19、Bolt
|
20、Cover Plate
|
21、Breather Value
|
22、Bolt
|
23、Motor Seal
|
24、Motor Bearing
|
25、Motor
|
26、Flat Key III
|
27、Bearing IV
|
28、Gear I
|
29、 Bearing V
|
30、Seal III
|
31、Flat Key IV
|
32、Spacer Tube II
|
33、Seal IV
|
34、Bearing IV
|
35、Gear II
|
36、Retaining Rings for Bores IV
|
37、Gear III
|
- F series helical gearbox housing is made of HT250 high-strength cast iron with a shot-shaped inner cavity, which effectively reduces the wear of parts, dissipates heat quickly, and increases the bearing capacity of the thickened box.
- The gears are made of low-carbon alloy steel, processed by imported gear grinding machines, with high hardness, stable performance, and vacuum carburizing treatment.
- The gear shaft is made of high-strength bearing steel, quenched and finished, with strong bearing capacity and stable transmission.
- The output shaft has undergone multiple precision machining and has passed the rigorous dynamic and static balance tests to ensure that the reducer runs smoothly and has low noise.
- For the accessories, we use high-precision bearings with imported brand oil seal, which effectively reduces friction and leakage to ensure high efficiency and stale, reliable running.
F Series Parallel Shaft Helical Gearbox Specifications
Product name: | F series parallel shaft helical gearbox |
Model: | F37/47/57/67/77/87/97/107/127/157 |
Mounting ways: | Foot mounted, flange mounted or shaft mounted |
Input ways: | Motor input, AM (IEC) flange input, and shaft input |
Output way: | Solid shaft output, hollow shaft output, output with large flange, output with small flange |
Efficiency: | 96% for basic two-stage, 94% for three-stage |
Housing material: | HT250 high-strength cast iron |
Gear material: | 20CrMnTi |
Surface hardness of gears: | HRC58-62 |
Input/Output shaft: | 40Cr steel |
Heat treatment: | Carburizing and quenching |
Bearing: | C&U or other brands |
Oil seal: | NAK or other brands |
Lubricating oil: | Gear oil |
Packing: | Plywood case |
F Series Parallel Shaft Helical Gearbox Parameters
Input power and permissible torque chart | ||||||||||
Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
Structure | F FA FF FAF FAZ | |||||||||
Input power (kW) |
0.18-3.0 | 0.18-3.0 | 0.18-5.5 | 0.18-5.5 | 0.37-11 | 0.75-22 | 1.1-30 | 2.2-45 | 7.5-90 | 11-200 |
Ratio | 3.81-128.51 | 5.06-189.39 | 5.18-199.70 | 4.21-228.99 | 4.30-281.71 | 4.12-270.68 | 4.68-280.76 | 6.20-254.76 | 4.63-172.17 | 11.92-267.43 |
Permissible torque(N.M) |
200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
F Series Parallel Shaft Helical Gearbox Features
- slim structure design to save mounting space
- high level of efficiency up to 98%
- reliability and low-noise operation
- high torque rating up to 18000N.m
- a range of wide gear ratios by multi-stage(2 or 3 stages)
- High mounting flexibility(foot-mounted, flange-mounted, shaft-mounted for selection)
- Available to combine with R series helical gear reducer
F Series Parallel Shaft Helical Gearbox Types
F series parallel shaft helical gear reducer has four basic series: F Series (foot-mounted, solid shaft output), FA Series (keyed hollow shaft output), FF Series (B5 flange-mounted, solid shaft output), FAF Series (B5 flange-mounted, hollow shaft output).

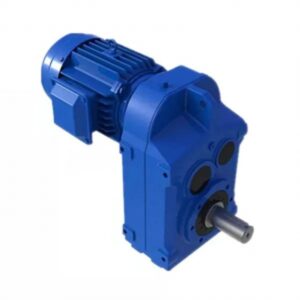

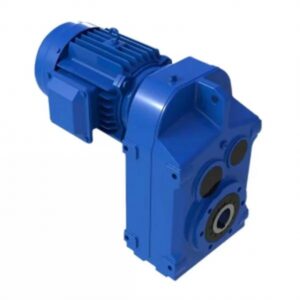

Foot-mounted Solid Shaft Output F Series Helical Gearbox | Hollow Shaft Output FA Series Helical Gearbox |

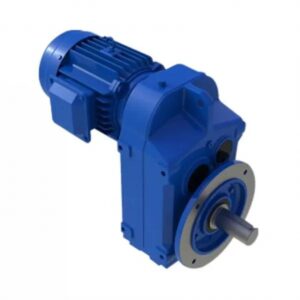

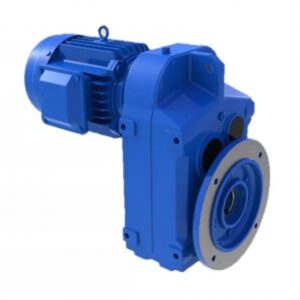

Flange-mounted Hollow Shaft Output FAF Series Helical Gearbox | Flange-mounted Solid Shaft Output FF Series Helical Gearbox |

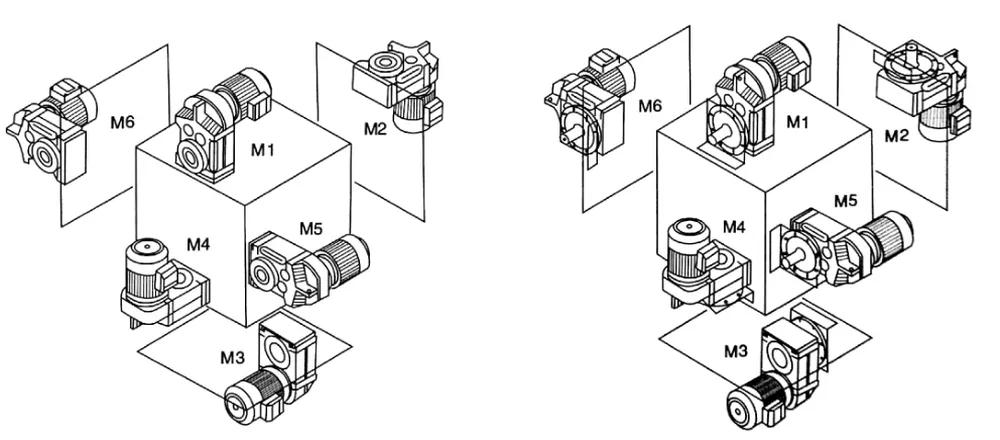

F Series Parallel Shaft Helical Gearbox Installation Position

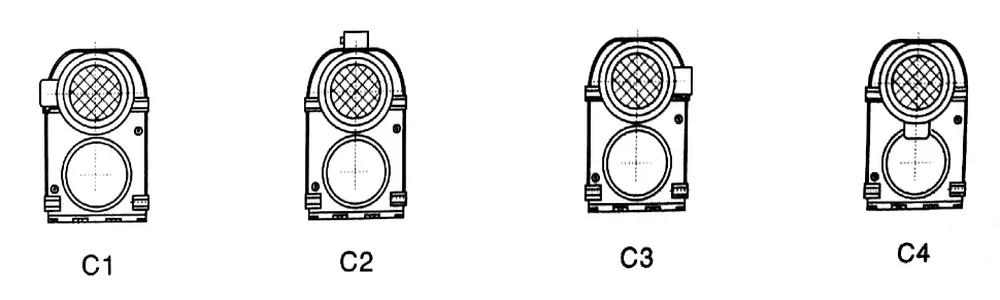

Helical Gearbox Position of Motor Terminal Box
F Series Parallel Shaft Helical Gearbox Applications
The F series helical gearboxes are widely applied in the producing equipment of all kinds of industries inside and outside China. They are the best choices for nowadays modern facilities of mechanical reducing drive control to realize large twisting distances, large gear ratio, little noise, high efficiency, and stability.
- Harbor and shipping
- Hoist and transport
- Electric power
- Coal mining
- Cement and construction
- Paper and light industry
- Chemical industry and environmental protection.
Parallel Shaft Helical Gearbox Packing and Transportation
- Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
- Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
- Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
- Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.
Helical Gearbox Manufacturer in China
Our company is located in the city of Hangzhou, Zhejiang Province of China. We handle the products of power transmission(F series Geared Motor), and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, S/R/K/F series helical gearboxes, ZQ series cylindrical gearboxes, HB series helical gearboxes, X/B series cycloidal gearboxes, ATA series shaft mounted gearboxes, SMR series shaft mounted gearboxes, associated electric motors, and other power transmission accessories.
Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.
Furthermore, the R&D investment is annually increasing for the purpose of better meeting the new demands of our customers and adapting to the new tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you.
Main Products | |||
ATA Series | SMR Series | RV Series | WP Series |
S Series | R Series | F Series | K Series |
X.B. Series | MCB Series | H Series | P Series |
