FB Double Pitch Sprockets Japanese Standard FBN2100SB
Chain | No.2100HS | (2100H) |
Pitch | (P) | 63.50 mm |
Internal width | (W) | 19.05 mm |
Roller Dia. | (Dr) | 19.05 mm |
Tooth width | (T) | 17.6 mm |

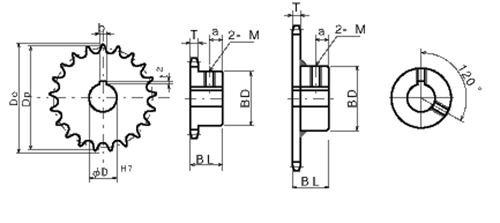

FBN2100SB sprocket
Outside dia. Do |
Pitch dia. Dp |
Hub | a | Weight (kg) |
Sprocket No. | Teeth no. | Bore dia. H7 |
||
BD | BL | Type | efected teeth | ||||||
209 | 195.57 | 107 | 50 | 16 | 5.91 | FBN2100SB | 9 1/2 | 19 | 35,40,45,50 |
Finished bore D |
Keyway bXt2 |
Setscrew M |
18~22 | 6X2.8 | 6 |
24~30 | 8X3.3 | 8 |
32~38 | 10X3.3 | 8 |
40~42 | 12X3.3 | 8 |
45~50 | 14X3.8 | 10 |
