Feeder House Drive Sprocket for Case IH

case 1970248C1 Sprocket Fits the following models

Case IH – Combine Parts: 1620, 1640, 1644, 1660, 1666, 1670, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366
International Harvester – Combine Parts: 1420, 1440, 1460, 1470, 1480, 1482, 615 (SN 12001>), 715 (SN 12001>), 815 (SN 8001>), 914, 915 (SN 8001>)

Description

Feeder House Drive Sprocket

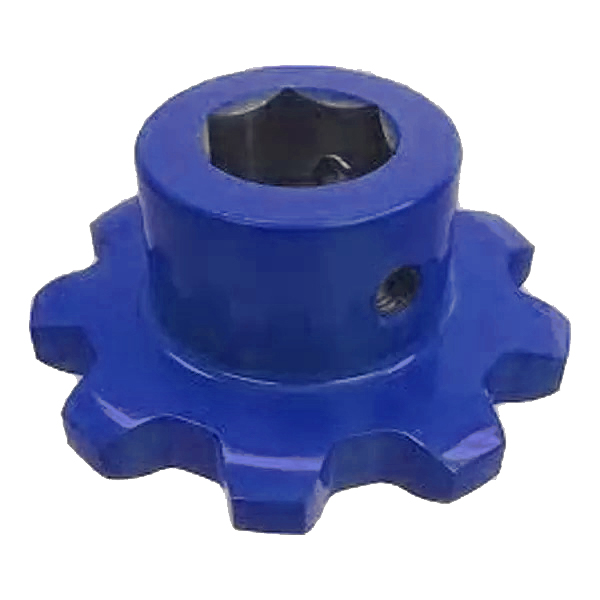

Case 1970248C1 Feeder House Drive Sprocket For Case-IH Combine

Case 1970248C1 Sprocket Fits the following models

Case IH – Combine Parts: 1620, 1640, 1644, 1660, 1666, 1670, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366
International Harvester – Combine Parts: 1420, 1440, 1460, 1470, 1480, 1482, 615 (SN 12001>), 715 (SN 12001>), 815 (SN 8001>), 914, 915 (SN 8001>)

Fits 1.50″ (38.1mm) Hex Shaft

We can provide customized services

Teeth	9T- 120T
Sprockets Type (The pictures are as below)	Type A sprockets: Plate (without Hub)
	Type B sprockets: One side with hub
	Type C sprockets: Double side with hub
	Finished bore sprockets: With the inner hole, keyway, and screw
Sprockets Size	ANSI: 25/35/41/40/50/60/80/100/120/140/160/180/200/240
	DIN/ISO:04C/06C/085/08A/10A/12A/16A/20A/24A/28A/32A/36A/40A/48A
	DIN/ISO:04B/05B/06B/08B/10B/12B/16B/20B/24B/28B/32B/36B/40B/48B/56B
Material:	Alloy Steel, Carbon Steel, Stainless Steel, Aluminum, Copper, Brass
Heat Treatment	Hardening and Tempering, High-Frequency Quenching, Carburizing Quenching
Surface Treatment	Galvanizing/Zinc Plating, chrome-plated, Black oxide Treatment
Process	Forging, Hobbing, Precision machining,

Your market leader in combine and header accessories!
Whether it’s your combine, corn head, or grain head, all the parts you need are just one click. If you have any questions about IH, grinner, John Deere, Messi Ferguson, New Holland, and white combine harvesters, please feel free to contact us.

Our sprocket can be cast or manufactured according to your requirements
Holes machined to H9 tolerance, BS 4500 Part 1 (ISO R286).
The keyway is metric, tapered, or parallel to; BS 4235 Part 1, 1972 (based on iso/r773 and r774).
Highlights:
Box conveyor chain for the food industry and washing machine
Reversible operation possible
Special materials available on request (minimum order quantity)
The sprocket is paired with keyways on the center line of the backlash, with the boss facing, and the deep end of the conical keyway is located on the side of the boss.
A single set screw is located above the keyway. The second set screw is at a 90-degree angle to the first set screw.
