Fertilizer Seeder Gearbox 35 for Fertilizer Broadcaster

The Fertilizer Seeder Gearbox 35 is a specialized gearbox designed for use in fertilizer broadcasters or spreaders. These machines are commonly used in agriculture to evenly distribute fertilizers, seeds, or other granular materials over a field. The gearbox plays a crucial role in powering and controlling the rotation of the spreading mechanism, ensuring proper and consistent distribution of the materials.

Description

Fertilizer Seeder Gearbox 35 for Fertilizer Broadcaster

The Fertilizer Seeder Gearbox 35 is a specialized gearbox designed for use in fertilizer broadcasters or spreaders. These machines are commonly used in agriculture to evenly distribute fertilizers, seeds, or other granular materials over a field. The gearbox plays a crucial role in powering and controlling the rotation of the spreading mechanism, ensuring proper and consistent distribution of the materials.

The primary function of the Fertilizer Seeder Gearbox 35 is to transmit power from the power source, such as a tractor’s PTO shaft, to the spreading mechanism of the fertilizer broadcaster. It converts the rotational motion from the power source into the necessary speed and torque required to rotate the spreading discs or agitators. The gearbox receives power from the tractor’s PTO shaft and transfers it to the spreading mechanism through a system of gears. It ensures the efficient transfer of power while allowing for speed adjustments and control over the spreading operation.

The Fertilizer Seeder Gearbox 35 typically offers adjustable speed settings, allowing operators to control the rate at which the fertilizer or seed is spread. This adjustability enables customization based on the desired application rate, field conditions, or crop requirements. We design the gearbox to withstand the demanding conditions of fertilizer spreading operations. It is built using durable materials and undergoes rigorous testing to ensure reliability and longevity. This robust construction helps minimize downtime and maintenance requirements.

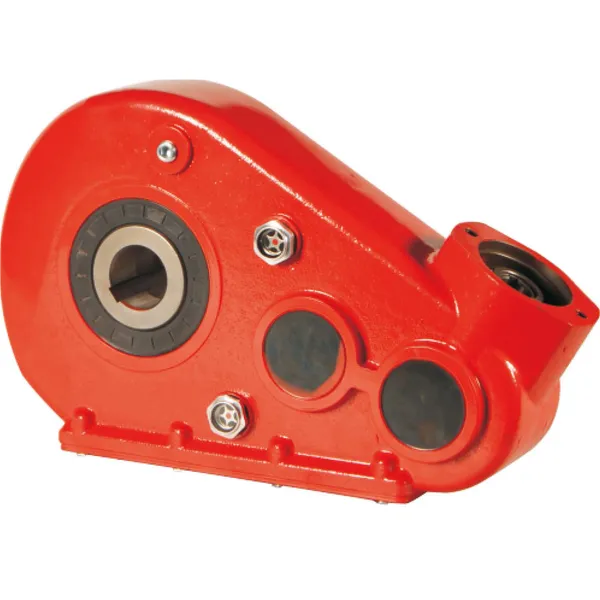

Fertilizer Seeder Gearbox 35

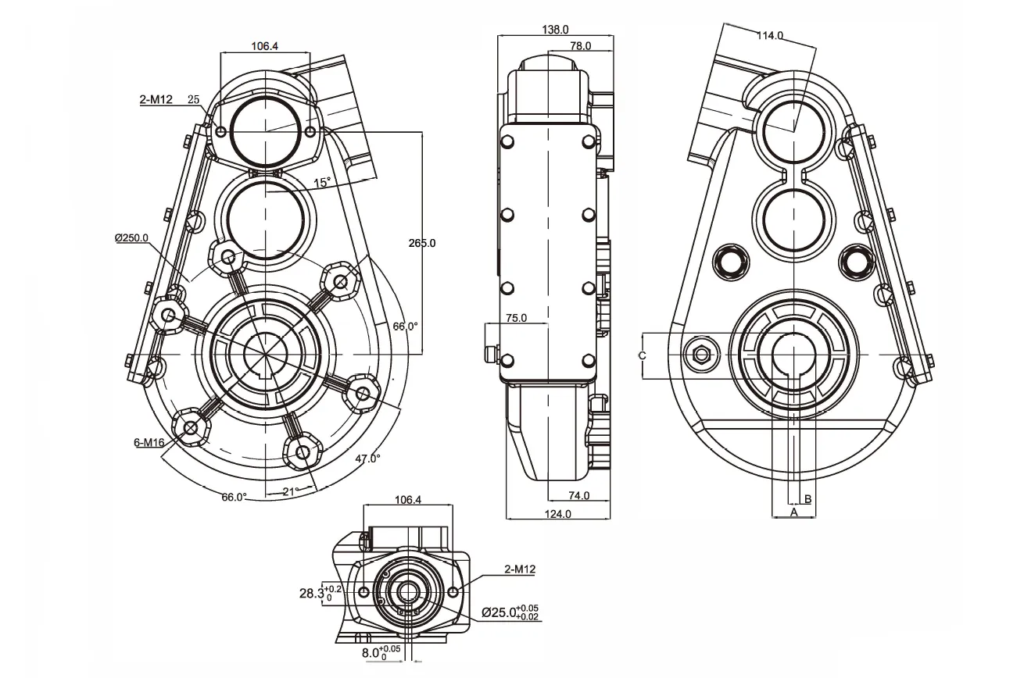

Fertilizer Seeder Gearbox 35 Dimensions

Fertilizer Seeder Gearbox 35

Fertilizer Seeder Gearbox 35 Technical Data

i Suitable Rpm input Rpm output Output torque Weight Toothing
r/min r/min N.m kg
Decelerate 24.3:1 Fertilizer broadcaster, etc 1000 41 3500 47 Gleason Helical
Teeth
Remark: If you have any special require feel free let me know, we also accept custom.
A B C
Φ45 14 48.8
Φ50 14 53.8
Φ60 18 64.4

Benefits of Fertilizer Seeder Gearbox 35 for Fertilizer Broadcaster

The Fertilizer Seeder Gearbox 35 offers several benefits when used in fertilizer broadcasters or spreaders. These benefits contribute to efficient and effective fertilizer application, ensuring even distribution and maximizing the effectiveness of the fertilization process. Here are some key benefits of the Fertilizer Seeder Gearbox 35:

1. Precise Speed Control: The adjustable speed settings of the gearbox allow operators to control the rate at which the fertilizer or seed is spread. This precision in speed control ensures accurate application rates, helping to prevent over- or under-application of fertilizers. It allows for customization based on field conditions, crop requirements, and desired application rates.

2. Consistent Distribution: The Fertilizer Seeder Gearbox 35 ensures consistent distribution of fertilizers or seeds across the entire spreading width. Its design and construction facilitate even rotation of the spreading discs or agitators, resulting in uniform coverage and preventing patchy application. This consistent distribution helps maximize the efficiency of fertilizer usage and promotes uniform crop growth.

3. Reliable Power Transmission: The gearbox efficiently transfers power from the power source, such as a tractor’s PTO shaft, to the spreading mechanism. Designed to handle the torque and rotational forces involved in spreading granular materials. The reliable power transmission ensures consistent and uninterrupted operation, minimizing downtime and maximizing productivity.

4. Durability and Longevity: The Fertilizer Seeder Gearbox 35 is built to withstand the demanding conditions of fertilizer spreading operations. Constructed using durable materials and undergoes rigorous testing to ensure longevity and reliability. This durability reduces the need for frequent repairs or replacements, saving both time and money.

5. Compatibility: We design the Fertilizer Seeder Gearbox 35 to be compatible with various types of fertilizer broadcasters and agricultural equipment, ensuring that it can be integrated seamlessly into existing farming systems.Fertilizer Seeder Gearbox 35

Applications of Fertilizer Seeder Gearbox 35

The Fertilizer Seeder Gearbox 35 specifically designed for agriculture applications, finds numerous uses in the field of crop production and soil fertility management. Here are some key agriculture applications of the Fertilizer Seeder Gearbox:

(1) Fertilizer Broadcasting: The primary application of the Fertilizer Seeder Gearbox in agriculture is for fertilizer broadcasting. It is used in fertilizer spreaders or broadcasters to evenly distribute granular fertilizers across the field during planting or top-dressing operations. The gearbox ensures consistent and precise spreading, optimizing nutrient distribution for crop growth and maximizing fertilizer efficiency.

(2) Seed Sowing: The Fertilizer Seeder Gearbox 35 can also be used for seed sowing in agricultural operations. It is employed in seeders or planters to control the rate and depth at which seeds are planted. The gearbox ensures accurate seed placement and consistent seed spacing, promoting even germination and uniform crop establishment.

(3) Cover Crop Seeding: Cover crops play a vital role in sustainable agriculture by improving soil health, preventing erosion, and suppressing weeds. The Fertilizer Seeder Gearbox is utilized in cover crop seeders to spread cover crop seeds across the field. The gearbox enables the precise and uniform distribution of cover crop seeds, facilitating effective cover cropping practices.

(4) Pasture Renovation: In pasture and forage management, the Fertilizer Seeder Gearbox is utilized for overseeding or renovating existing pastures. It is employed in pasture seeders to distribute a mixture of grass and legume seeds over the pasture area. The gearbox ensures even coverage, promoting the establishment of desired forage species and improving grazing productivity.

The Fertilizer Seeder Gearbox plays a vital role in various agricultural applications, promoting efficient nutrient management, precise seed placement, and optimal crop establishment. Its ability to ensure accurate and consistent distribution of fertilizers, seeds, and soil amendments contributes to enhanced crop yields, improved soil health, and sustainable farming practices.

Maintenance and Lubrication of Fertilizer Seeder Gearbox 35

Maintaining and lubricating the Fertilizer Seeder Gearbox 35 is vital for ensuring its optimal performance and longevity, especially when used in the demanding environment of agricultural fertilizer application. Here are some guidelines for maintaining and lubricating the 35 gearbox:

1. Regular visual inspection: Perform regular visual inspections of the gearbox to check for any signs of wear, damage, or leaking oil. Look for loose or damaged components, excessive rust, or any other issues that may require attention.

2. Cleanliness: Keep the gearbox clean and free from dirt, debris, and fertilizer residue. Use a brush or compressed air to remove any buildup that may interfere with the proper operation of the gearbox.

3. Lubrication: Lubrication is crucial for the smooth operation and longevity of the gearbox. Follow the manufacturer’s recommendations regarding the type of lubricant to use and the recommended intervals for lubrication. Typically, an EP (extreme pressure) or gear oil is working in gearboxes. Ensure that the lubricant you use meets the specifications provided by the manufacturer.

4. Oil level check: Regularly check the oil level in the gearbox to ensure it is within the recommended range. If the oil level is low, top it up with the appropriate lubricant. If the oil appears dirty or contaminated, it may be necessary to drain and replace it according to the manufacturer’s instructions.

5. Seal integrity: Inspect the seals on the gearbox for any signs of damage or leakage. Replace any worn or damaged seals promptly to prevent lubricant leaks and to maintain the integrity of the gearbox.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.

Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox. If a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position. And the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.

Feed Mixer Gearbox Post Hole Digger Gearbox Agricultural Sprayer Gearbox Flail Mower Gearbox Cutter Bars Gearbox
Gearbox For Hay Tedders Rotary Mower Gearbox Rotary Cutter Gearbox Hydraulic Drive Gearbox Lawn Mower Gearbox
Fertilizer Spreader Gearboxes Agitators Gearbox For Sewage Angular Gearbox Irrigation Reels Gearbox Manure Spreader Gearbox
Micro Tiller Gearbox Parallel Gearbox Snowblower Gearbox Round Baler Gearbox Rotary Tiller Gearbox
