Fertilizer Spreader Gearbox – Replacement of Comer Code L-150J
Fertilizer spreader gearbox L-150J is a mechanical device that helps to distribute fertilizer or other granular materials evenly across a field or garden. The gearbox is typically located on the underside of the spreader and is connected to the wheels or impellers that distribute the fertilizer.
Fertilizer Spreader Gearbox – Replacement of Comer Code L-150J
A fertilizer spreader gearbox is a mechanical device that helps to distribute fertilizer or other granular materials evenly across a field or garden. The gearbox is typically located on the underside of the spreader and is connected to the wheels or impellers that distribute the fertilizer.
The gearbox is designed to help regulate the flow of fertilizer from the hopper to the distribution mechanism. It typically includes a series of gears that help to control the speed and direction of the output shaft. The gearbox also helps to protect the distribution mechanism from damage by reducing the torque and stress on the system.
When selecting a fertilizer spreader gearbox, it is important to consider the size and capacity of the spreader, as well as the type of fertilizer or material being distributed. It is also important to choose a gearbox that is durable and easy to maintain, as it will be subject to significant wear and tear over time.

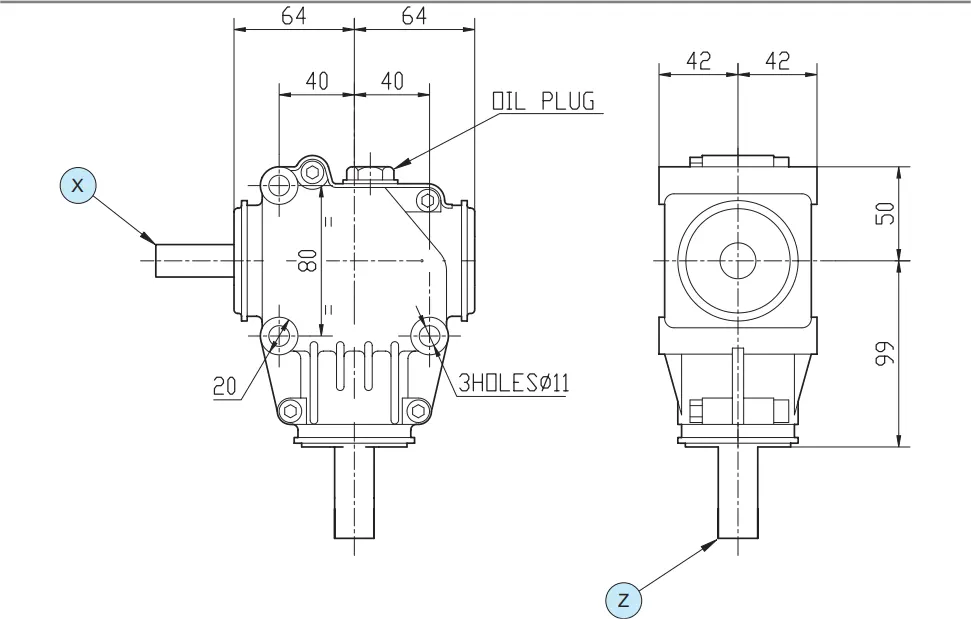

Fertilizer Speader Gearbox L-150J Specification
Technical features:
- The T-L150J gearbox ratio is 1:1.93.
- The input shaft is a 1-3/8″ round bore.
- The output shaft has tapered splines, bushing must be ordered separately.
- The gearbox is rated at 60 hp at 540 rpm and has a CCW (Counter-clockwise) rotation.
- Fits Comer Rotary Cutters.
- The output shaft has tapered splines, bushing must be ordered separately.
- The mounting pattern is 203.2mm.
- Application: Fertilizers
- Body Material: Aluminum
- Entry Shaft: ΡΤΟ Φ35/Ζ6 (1 3/8″ z6)
- Exit Shaft: Φ25mm with two vertical bores. Keyway not available.
- Entry Power at 540rpm: 8KW
- Lubrication: Grease. Not included.
| N1[rpm] | P1[kW] | M2[Nm] | Shaft Type | Input | |
| X | Z | ||||
| 540 | 8.0 | 137 | Φ25 | 1” 3/8 Z6 | Z |
| 540 | 8.0 | 137 | Φ25 | Φ25 | Z |
| 540 | 8.0 | 137 | Φ3/4” | Φ3/4” | Z |

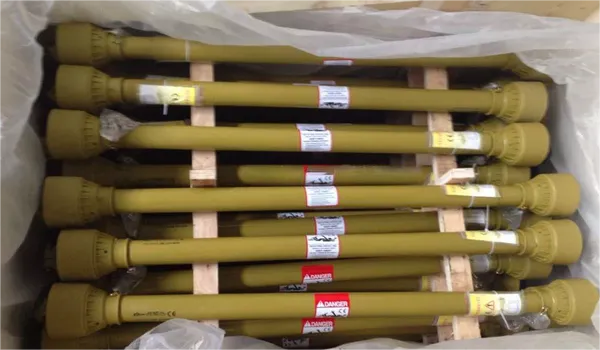

PTO Shafts for Fertilizer Spreader Gearbox
Agricultural equipment includes a variety of PTO shafts. Each one is connected by yokes at each end and rotates between 540 and 1,000 rpm. A safety shield is commonly installed on both ends of a PTO shaft to protect the operator. These protective shields are also found in tractors and agricultural implements, and they ensure maximum efficiency. Added safety is also provided by the use of internal yokes.
The agricultural PTO gearbox is designed to change the output speed of a PTO shaft. It can be used as a decreasing or increasing ratio gearbox. With the decrease ratio gearbox, it reduces the PTO shaft’s speed from 1000 rpm to 540 rpm, allowing you to use equipment designed for 540 rpm. On the other hand, an increasing ratio gearbox increases the speed of the PTO drive shaft from 540 rpm to 1000 rpm.
