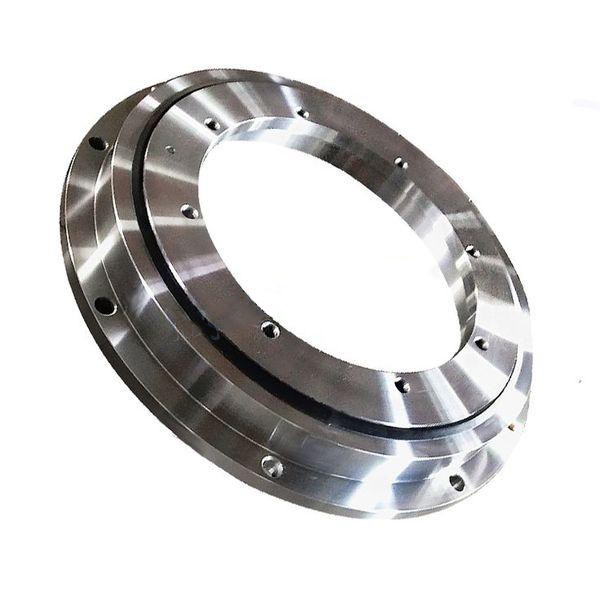

Flange Slewing Bearings
The series of turntable bearing slewing bearings with flanges on the outer wheel make axial positioning simple. The bearing seat is no longer needed, and it becomes more economical. In order to obtain the low friction torque, high rigidity, and good rotation accuracy of the bearing, a steel ball with a small outer diameter is used. The use of hollow shafts ensures lightweight and wiring space. Flanged slewing bearings mainly bear radial loads, but they can also bear radial loads and axial loads at the same time.
Flange Slewing Bearings
The series of turntable bearing flange slewing bearings with flanges on the outer wheel make axial positioning simple. The bearing seat is no longer needed and has become more economical. A steel ball with a small outer diameter is used to obtain the low friction torque, high rigidity, and good rotation accuracy of the bearing. The use of hollow shafts ensures lightweight and wiring space. Flanged slewing bearings mainly bear radial loads, but they can also handle radial and axial loads simultaneously.
Product parameters

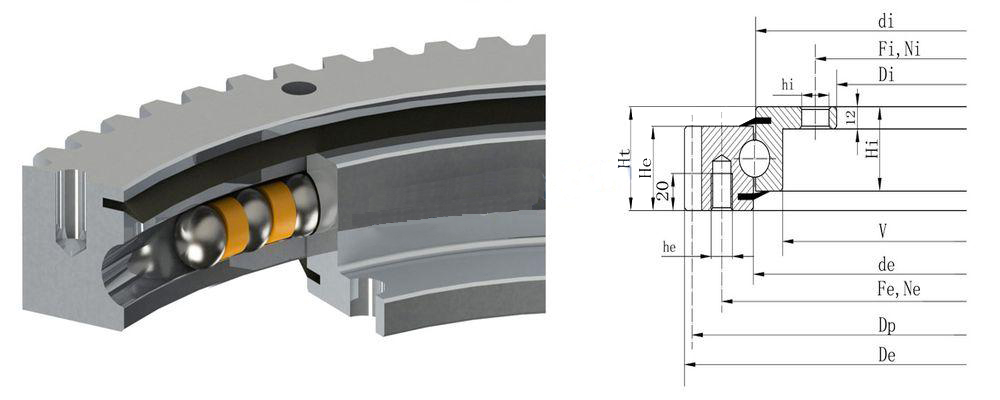

(1) Model parameters of external gear flange slewing bearing
Model Dimensions Installation Size Tooth Parameters Load Weight De de di Di He Hi Ht V Fe Fi Ne he Ni hi Dp m z k.m [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [-] [mm] [mm] [-] [mm] [kn] [kg] 1L20-E-0414 504 415.5 412.5 304 45.5 45.5 56 375 455 332 10 M12 24 18 495 5 99 -0.5 23.5 29 1L20-E-0544 640.8 545.5 542.5 434 45.5 45.5 56 505 585 462 14 M12 28 18 630 6 105 -0.6 28.4 39.2 1L20-E-0644 742.8 645.5 642.5 534 45.5 45.5 56 605 685 562 16 M12 32 18 732 6 122 -0.6 28.4 47.2 1L20-E-0744 838.8 745.5 742.5 634 45.5 45.5 56 705 785 662 18 M12 32 18 828 6 138 -0.6 28.4 53.1 1L20-E-0844 950.4 845.5 842.5 734 45.5 45.5 56 805 885 762 18 M12 36 18 936 8 117 -0.8 37.86 64.7 1L20-E-0944 1046.4 945.5 942.5 834 45.5 45.5 56 905 985 862 20 M12 40 18 1032 8 129 -0.8 37.86 69.1 1L20-E-1094 1198.4 1095.5 1092.5 984 45.5 45.5 56 1055 1135 1012 22 M12 40 18 1184 8 148 -0.8 37.86 82.5 1L30-E-0955 1096.2 953.5 956.5 805 71 71 90 893 1016 845 30 M20 30 22 1080 9 120 –0.9 66.46 165 1L30-E-1055 1198 1053.5 1056.5 905 71 71 90 993 1116 945 30 M20 30 22 1180 10 118 –1 73.84 183 1L30-E-1155 1298 1153.5 1156.5 1005 71 71 90 1093 1216 1045 36 M20 36 22 1280 10 128 –1 73.84 200 1L30-E-1255 1398 1253.5 1256.5 1105 71 71 90 1193 1316 1145 42 M20 42 22 1380 10 138 –1 73.84 216 1L30-E-1355 1498 1353.5 1356.5 1205 71 71 90 1293 1416 1245 42 M20 42 22 1480 10 148 –1 73.84 234 1L30-E-1455 1598 1453.5 1456.5 1305 71 71 90 1393 1516 1345 48 M20 48 22 1580 10 158 –1 73.84 250

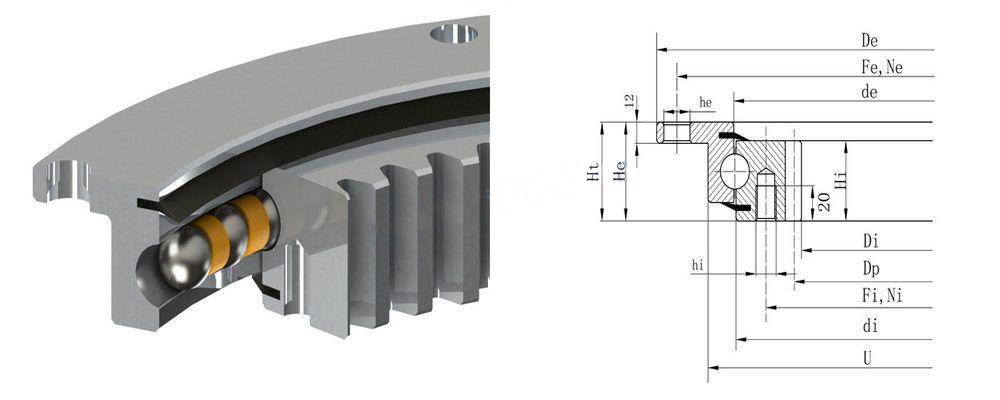

(2) Model parameters of inner gear flange slewing table bearing
Model Dimensions Installation Size Tooth Parameters Load Weight De de di Di He Hi Ht U Fe Fi Ne he Ni hi Dp m z k.m [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [-] [-] [mm] [mm] [-] [mm] [kN] [kg] 1L20-I-0414 518 415.5 412.5 326.5 45.5 45.5 56 453 490 375 16 18 12 M12 335 5 67 -0.75 27.08 26.9 1L20-I-0544 648 545.5 542.5 445.2 45.5 45.5 56 583 620 505 20 18 16 M12 456 6 76 -0.6 32 36.7 1L20-I-0644 748 645.5 642.5 547.2 45.5 45.5 56 683 720 605 24 18 18 M12 558 6 93 -0.6 31.24 43.4 1L20-I-0744 848 745.5 742.5 649.2 45.5 45.5 56 783 820 705 24 18 20 M12 660 6 110 -0.6 30.64 50.8 1L20-I-0844 948 845.5 842.5 737.6 45.5 45.5 56 883 920 805 28 18 20 M12 752 8 94 -0.8 41.6 61.3 1L20-I-0944 1048 945.5 942.5 841.6 45.5 45.5 56 983 1020 905 32 18 22 M12 856 8 107 -0.8 40.98 65.4 1L20-I-1094 1198 1095.5 1092.5 985.6 45.5 45.5 56 1133 1170 1055 32 18 24 M12 1000 8 125 -0.8 40.32 80.3 1L30-I-0955 1100 953.5 956.5 812 71 71 90 1017 1060 894 30 22 30 M20 830 10 83 –1 82.36 159 1L30-I-1055 1200 1053.5 1056.5 912 71 71 90 1117 1160 994 30 22 30 M20 930 10 93 –1 81.26 176 1L30-I-1155 1300 1153.5 1156.5 1012 71 71 90 1217 1260 1094 36 22 36 M20 1030 10 103 –1 80.3 192 1L30-I-1255 1400 1253.5 1256.5 1112 71 71 90 1317 1360 1194 42 22 42 M20 1130 10 113 –1 79.48 208 1L30-I-1355 1500 1353.5 1356.5 1212 71 71 90 1417 1460 1294 42 22 42 M20 1230 10 123 –1 78.78 226 1L30-I-1455 1600 1453.5 1456.5 1310 71 71 90 1517 1560 1394 48 22 48 M20 1330 10 133 – 78.2 243

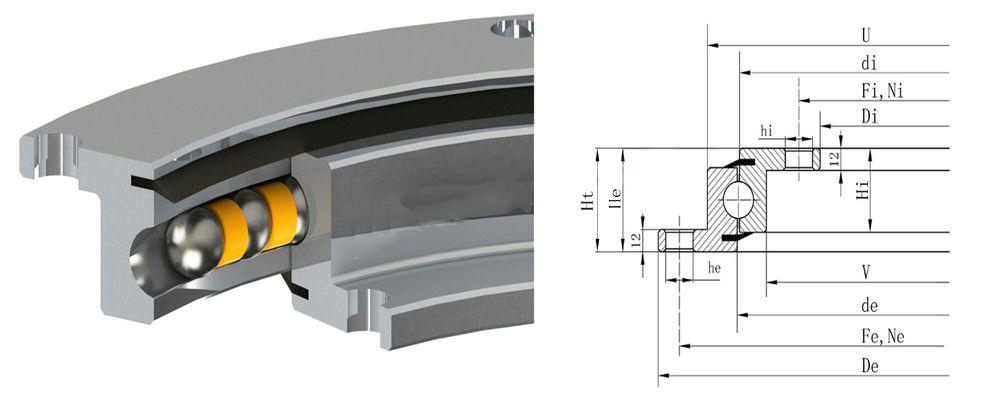

(3) Model parameters of gearless flange slewing table bearings
Model Dimensions Installation Size Weight De de di Di He Hi Ht U V Fe Fi Ne he Ni hi [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [-] [-] [kg] 1L20-U-0414 518 415.5 412.5 304 45.5 45.5 56 453 375 490 332 16 18 24 18 23 1L20-U-0544 648 545.5 542.5 434 45.5 45.5 56 583 505 620 462 20 18 28 18 30.4 1L20-U-0644 748 645.5 642.5 534 45.5 45.5 56 683 605 720 562 24 18 32 18 35.8 1L20-U-0744 848 745.5 742.5 634 45.5 45.5 56 783 705 820 662 24 18 32 18 42.2 1L20-U-0844 948 845.5 842.5 734 45.5 45.5 56 883 805 920 762 28 18 36 18 47.1 1L20-U-0944 1048 945.5 942.5 834 45.5 45.5 56 983 905 1020 862 32 18 40 18 52.3 1L20-U-1094 1198 1095.5 1092.5 984 45.5 45.5 56 1133 1055 1170 1012 32 18 40 18 61.1 1L30-U-0955 1100 953.5 956.5 805 71 71 90 1017 893 1060 845 30 22 30 22 131 1L30-U-1055 1200 1053.5 1056.5 905 71 71 90 1117 993 1160 945 30 22 30 22 145 1L30-U-1155 1300 1153.5 1156.5 1005 71 71 90 1217 1093 1260 1045 36 22 36 22 159 1L30-U-1255 1400 1253.5 1256.5 1105 71 71 90 1317 1193 1360 1145 42 22 42 22 172 1L30-U-1355 1500 1353.5 1356.5 1205 71 71 90 1417 1293 1460 1245 42 22 42 22 186 1L30-U-1455 1600 1453.5 1456.5 1305 71 71 90 1517 1393 1560 1345 48 22 48 22 200

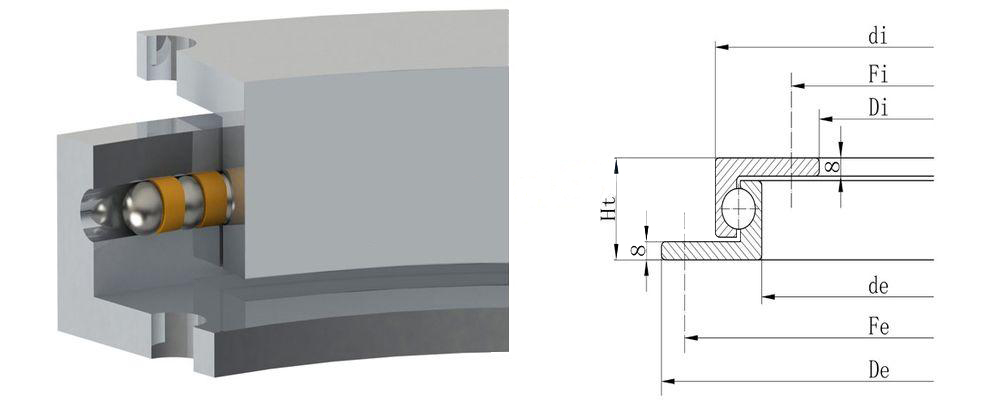

(4) Reverse flange slewing table bearings model parameters
| Model | Dimensions | Installation Size | Weight | |||||
| De | di | de | Di | Ht | Fe | Fi | Weight | |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | kg | |
| 1O09-U-0400 | 400 | 342 | 292 | 230 | 45 | 375 | 260 | 11 |
| 1O09-U-0500 | 500 | 442 | 392 | 330 | 45 | 475 | 360 | 15 |
| 1O09-U-0650 | 650 | 592 | 542 | 480 | 45 | 625 | 510 | 20 |
| 1O09-U-0750 | 750 | 692 | 642 | 580 | 45 | 725 | 610 | 23 |
| 1O09-U-0850 | 850 | 792 | 742 | 680 | 45 | 825 | 710 | 27 |
| 1O09-U-0950 | 950 | 892 | 842 | 780 | 45 | 925 | 810 | 30 |
| 1O09-U-1050 | 1050 | 992 | 942 | 880 | 45 | 1025 | 910 | 34 |
| 1O12-U-0500 | 500 | 437 | 384 | 315 | 52 | 475 | 340 | 17 |
| 1O12-U-0650 | 650 | 587 | 534 | 465 | 52 | 625 | 490 | 23 |
| 1O12-U-0750 | 750 | 687 | 634 | 565 | 52 | 725 | 590 | 28 |
| 1O12-U-0850 | 850 | 787 | 734 | 665 | 52 | 825 | 690 | 32 |
| 1O12-U-0950 | 950 | 887 | 834 | 765 | 52 | 925 | 790 | 36 |
| 1O12-U-1050 | 1050 | 987 | 934 | 865 | 52 | 1025 | 890 | 40 |
The flange slewing bearing has the same structure with four points contact ball slewing bearing, but the weight is lighter; the outer or inner ring of the flanged slewing bearing has the “L” edge, like a flange. That’s why we called it flange type bearing. A flange light slewing bearing ring is also working in some applications which have a weight limit for the bearing. The weight for the flange type slewing ring is much lower than the standard type. The materials of the flange slewing ring are mainly 50Mn, 42CrMo, and C45.
The flange slewing bearing rings has been widely used in many applications:
- Food machinery
- Canning machinery
- Environmental machinery
- Car parking systems, etc.
