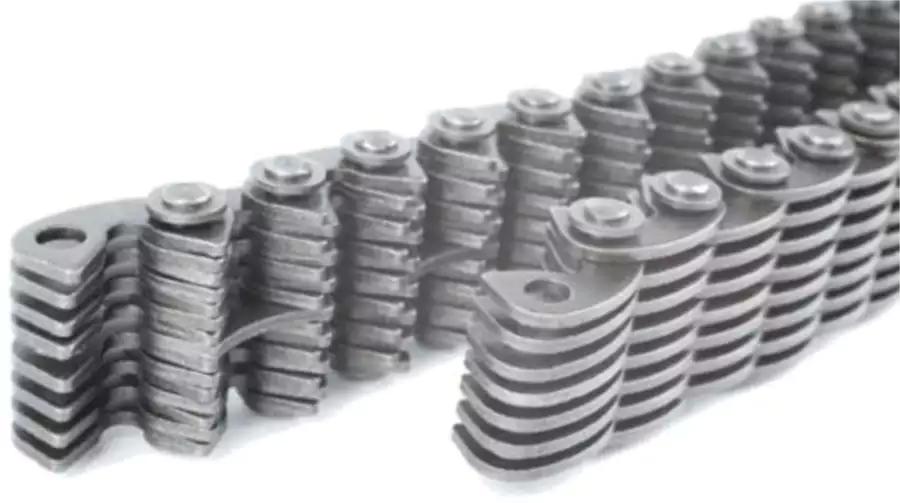

Flank / Croch Contact Inverted Tooth Stainless Steel Silent Chain
Constructed from hardened carbon steel or corrosion-resistant, 304 stainless steel, Power-trans chains and sprockets are designed to bring the smooth, quiet operation to fractional horsepower applications. Chains are available in 10 standard widths, with special widths and attachment chains available upon request. All Power-trans 3/16″ pitch chains feature a round pin joint, which allows the chain to backbend, and are manufactured to be fully compatible with sprockets made to ASME standard B29.2M-2007. Power-trans 3/16″ pitch chains and sprockets are well-suited for original or replacement applications.

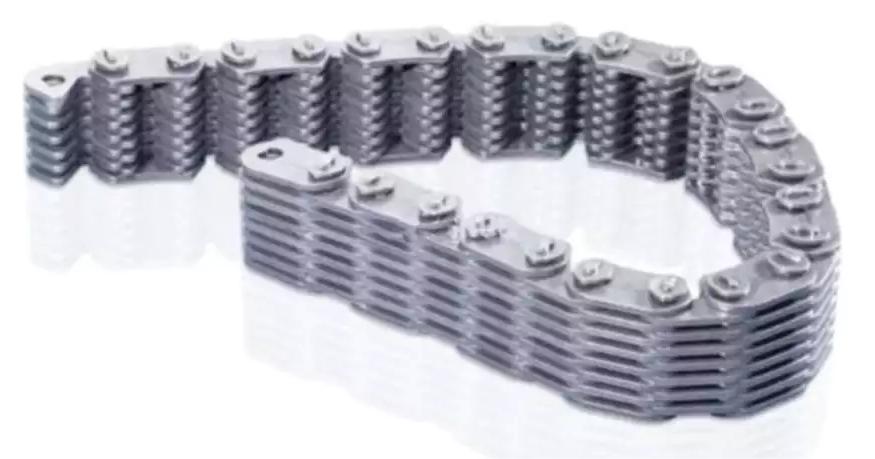

Flank / Croch Contact Inverted Tooth Stainless Steel Silent Chain
(inverted Tooth Silent Chain) Constructed from hardened carbon steel or corrosion-resistant, 304 stainless steel, chains and sprockets are designed to bring the smooth, quiet operation to fractional horsepower applications. Chains are available in 10 standard widths, with special widths and attachment chains available upon request. All Power-trans tech 3/16″ pitch chains feature a round pin joint, which allows the chain to backbend, and are manufactured to be fully compatible with sprockets made to ASME standard B29.2M-2007. Power-trans tech 3/16″ pitch chains and sprockets are well-suited for original or replacement applications.
Typical applications include food processing equipment, packaging machinery, weighing machinery, check weigher replacement parts, postage meters, sorting machinery.
Note: The power capacity of stainless steel chains is less than comparable width carbon steel chains.
Advantages of Stainless Steel Silent Chain
Stainless steel silent chain offers numerous advantages for glass conveying and general industrial conveying.
Higher Temperature Capability: Allows conveyors to operate at significantly higher average temperatures than carbon steel chains will tolerate.
Improved Thermal Properties: Reduces the rate of heat transfer from the chain and may reduce bottle checking.
Superior Corrosion Resistance: Provides tolerance to chemicals and atmospheres which are unsuitable for carbon steel chains.

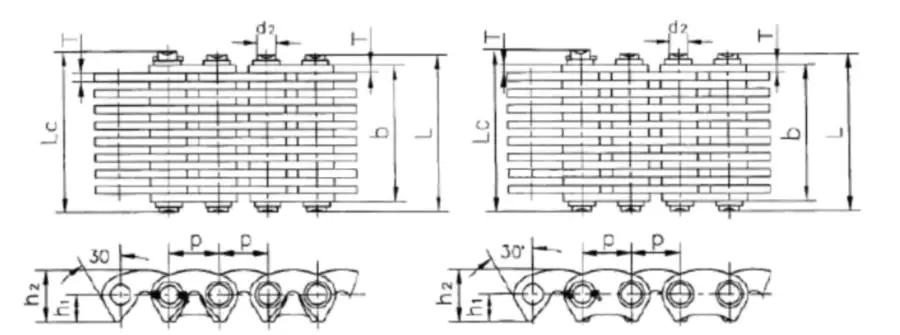

Flank contact Stainless Steel Silent chains
GB Chain No. Pitch Chain width Pin diameter Pin length Distance from hole center to tooth Plate depth Plate thickness Guide form number of plates Ultimate tensile strength Average tensile strength Weight per meter P b(min) d2(max0 L(max) Lc(max) h1 h2(max) T(max) Q(min) Q0 q mm mm mm mm mm mm mm mm n kN kN kg/m CL06SS 9.525 13.5 3.95 18.5 20 5.3 10 1.5 outside 9 6 6.72 0.6 16.5 21.5 23 outside 11 7.5 8.4 0.73 19.5 24.5 26 outside 13 9 10.08 0.85 22.5 27.5 29 outside 15 10.5 11.76 1 28.5 33.5 35 inside 19 13.5 15.12 1.26 CL08SS 12.7 19.5 5.08 24.5 26 7 13.4 1.5 outside 13 14.01 15.72 1.15 22.5 27.5 29 outside 15 16.44 18.36 1.33 25.5 30.5 32 outside 17 18.78 21 1.5 28.5 33.5 35 inside 19 21.12 23.64 1.68 34.5 39.5 41 inside 23 25.8 28.86 2.04 40.5 45.5 47 inside 27 30.48 34.08 2.39 46.5 51.5 53 inside 31 35.16 39.36 2.74 52.5 57.5 59 inside 35 39.84 44.58 3.1 CL10SS 15.875 30 5.92 37 38.2 8.7 16.7 2 inside 15 27.36 30.36 2.21 38 45 46.2 inside 19 35.16 39 2.8 46 53 54.2 inside 23 43.02 47.7 3.39 54 61 62.4 inside 27 50.82 56.4 3.99 3.3762.0 69 70.4 inside 31 58.62 65.04 4.58 CL12SS 19.05 38 6.9 45 46.5 10.5 20 2 inside 19 42 46.56 3.37 46 53 54.5 inside 23 51.6 57.24 4.08 54 61 62.8 inside 27 61.2 67.92 4.78 62 69 70.8 inside 31 70.2 77.88 5.5 70 77 78.8 inside 35 79.8 88.56 6.2 CL16SS 25.4 45 8.9 52 53.5 14 26.7 3 inside 15 66.6 73.92 5.31 51 58 59.5 inside 17 75 83.22 6.02 57 64 95.5 inside 19 84.6 93.9 6.37 69 76.2 77.7 inside 23 103.2 114.54 8.15 81 88.2 89.7 inside 27 121.8 135.18 9.57 93 100.2 101.7 inside 31 144 156.48 10.98 CL20SS 31.75 57 10.84 66.6 69.9 17.5 33.4 3 inside 19 99 109.86 8.42 69 78.6 81.6 inside 23 120.6 133.86 10.19 81 90.6 93.6 inside 27 142.2 157.92 11.96 93 102.6 105.6 inside 31 163.8 181.8 13.73 105 114.6 117.6 inside 35 186 204.6 15.5 117 126.6 129.6 inside 39 207.6 228.36 17.27

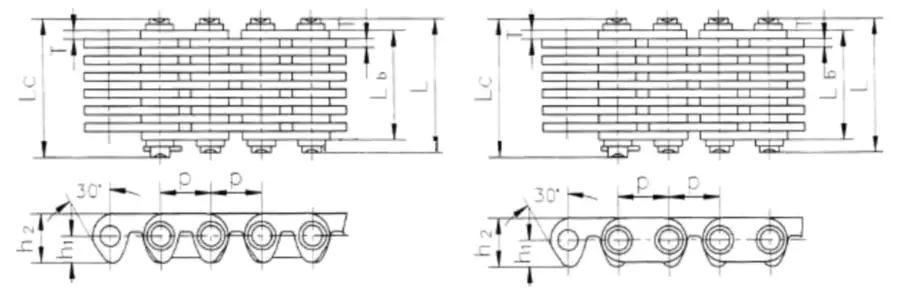

Croch Contact Stainless Steel Silent Chains
ANSI Chain No. Pitch Chain width Pin diameter Pin length Distance from hole center to tooth plate depth plate thickness Guide form Plate number Ultimate tensile strength Average tensile strength Weight per meter P b(min) d2(max) L(max) Lc(max) h1 h2(max) T(max) Q(min) Q0 q mm mm mm mm mm mm mm mm n kN kN kg/m C4-120SS 12.7 19.5 5.08 24.5 26 6.62 12.1 1.5 Inside 13 12 13.32 1.2 C4-123SS 22.5 27.5 29 Inside 15 13.8 15.3 1.37 C4-129SS 28.5 33.5 35 Inside 19 17.1 18.96 1.72 C4-132SS 31.5 36.5 38 Inside 21 18.9 20.94 1.89 C4-138SS 37.5 42.5 44 Inside 25 22.8 25.26 2.22 C4-150SS 49.5 54.5 56 Inside 33 30 33.3 2.9 C4-320SS 19.5 24.5 26 Outside 13 12 13.32 1.21 C4-323SS 22.5 27.5 29 Outside 15 13.8 15.3 1.38 C4-329SS 28.5 33.5 25 Outside 19 17.1 18.96 1.73 C4-332SS 31.5 36.5 38 Outside 21 18.9 20.94 1.9 C4-338SS 37.5 42.5 44 Outside 25 22.8 25.26 2.23
