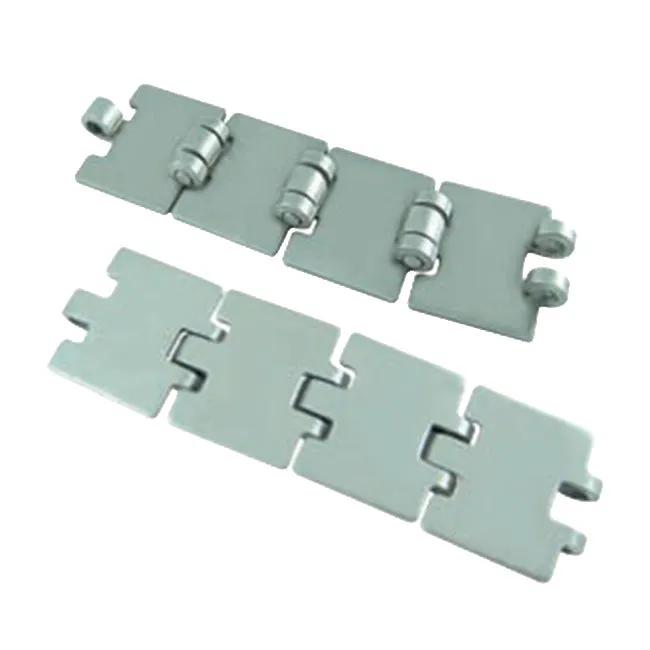

Flat Top Chain SS812/815 Mini Single Hinge Straight Running

Flat Top Chain SS812/815

Description

SS812/815 Mini Single Hinge Straight Running Stainless Steel Flat Top Chain For bottle factory production

Single Hinge Straight Running Flat Top Chain Description

Single Hinge Straight Running Flat Top Chain Suggestion: lubricant
The longest distance: 15M
Max. speed: lubricant 90M/min dryness 60M/min
Working load: 1300N
Material: austenitic stainless steel (non-magnetic) ferritic stainless steel (magnetic)
Packing: 10 feet = 3.048 M/box 26pcs/M

Steel and Stainless Steel Flat Top Chains are produced in straight running and side flexing versions and the range are covered by a broad selection of raw materials and chain link profiles to provide solutions for all conveying applications. These Flat Top Chains are characterized by high working loads, highly-resistant to wear and extremely flat and smooth conveying surfaces. The chains can be used in many applications and are not just confined to the Beverage Industry.
Widely used in all kinds of conveyor of the bottle and heavy load such as metal. Especially applied to the beer industry.

Chain No.
Width ( W )
Weight
Plate Gap (PG)
mm
inch
kg/m
lbs/ft
mm
SS812/815 mini – K125
32
1.25
1.2
0.81
1.8
SS812/815 mini – K175
45
1.75
1.6
1.08
1.8
