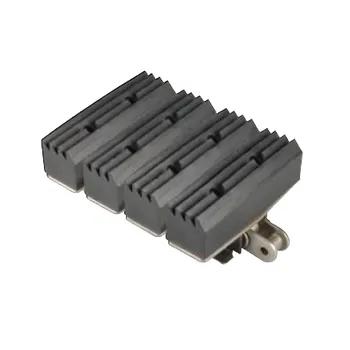

Flat Top Chains Sideflexing with Snap-on Gripper 1874TAB-G
1874TAB-G Flat top chains are side-flexing snap-on chains. It is designed with plastic flights assembled on a steel roller chain with extended pins.1874 series chains are 1.5-inch pitch, have a top plate thickness of 0.12 inches, and utilize a 63 base chain. The chains have a smooth top and are versatile enough to convey everything from individual units to packaged and cased goods. Features TAB curve retention. Chain is available with carbon & stainless steel top plates on carbon and stainless steel base chains for different characteristics. The chain operates on standard #60 series sprockets for true chain/sprocket interaction.
1874TAB-G Flat Top Chains Sideflexing with Snap-on Gripper
1874TAB-G Flat top chains are side-flexing snap-on chains(Snap-on Gripper Chain). It is designed with plastic flights assembled on a steel roller chain with extended pins.1874 series chains are 1.5-inch pitch, have a top plate thickness of 0.12 inches, and utilize a 63 base chain. The chains have a smooth top and are versatile enough to convey everything from individual units to packaged and cased goods. Features TAB curve retention. Chain is available with carbon & stainless steel top plates on carbon and stainless steel base chains for different characteristics. The chain operates on standard #60 series sprockets for true chain/sprocket interaction.
|
|
 |

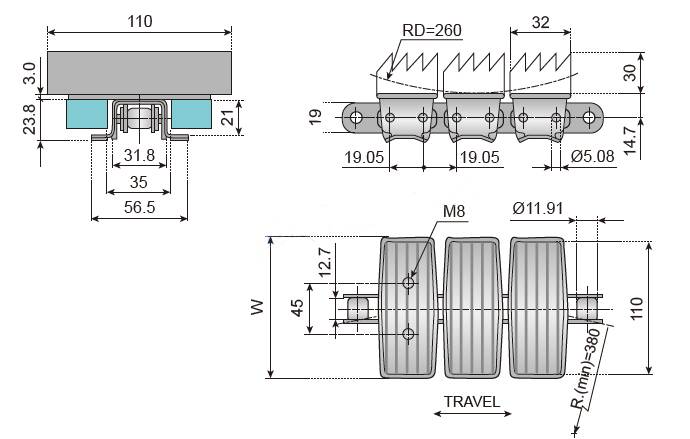

Chain specification
| Chain No. | Width ( W ) | Weight | Working load | ||
| mm | inch | kg/m | lbs/ft | N | |
| STEEL TOP PLATE / STEEL BASE CHAIN | |||||
| 1874 TAB – K325 | 82.6 | 3.25 | 3.33 | 2.24 | 4500 |
| 1874 TAB – K450 | 114.3 | 4.50 | 4.00 | 2.69 | 4500 |
| 1874 TAB – K600 | 152.4 | 6.00 | 4.40 | 2.95 | 4500 |
| 1874 TAB – K750 | 190.5 | 7.50 | 4.80 | 3.22 | 4500 |
| STAINLESS STEEL TOP PLATE / STAINLESS STEEL BASE CHAIN | |||||
| 1874 TAB SS- K325 | 82.6 | 3.25 | 3.33 | 2.24 | 3400 |
| 1874 TAB SS – K450 | 114.3 | 4.50 | 4.00 | 2.69 | 3400 |
| 1874 TAB SS – K600 | 152.4 | 6.00 | 4.40 | 2.95 | 3400 |
| 1874 TAB SS – K750 | 190.5 | 7.50 | 4.80 | 3.22 | 3400 |

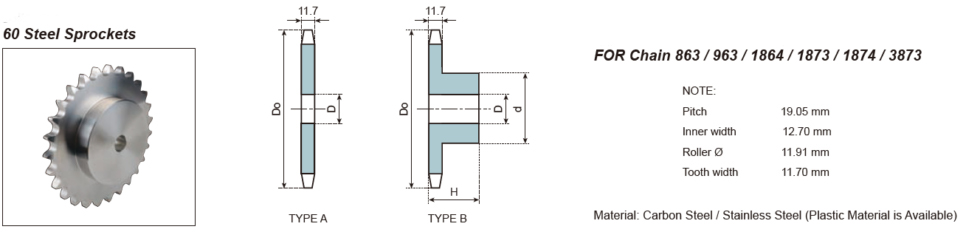

We can also provide matching 60 Steel sprockets(link).
