Flat Top Chains SS512/515 Single Hinge Pitch 25.4 mm
Flat Top Chains SS512/515

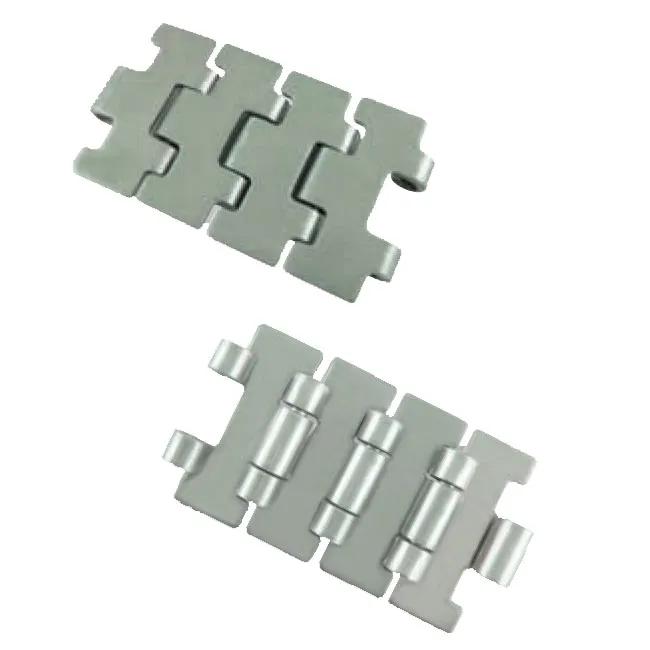

SS512/515 Single Hinge Pitch 25.4 mm Straight running Flat Top Chains For beer industry bottle conveyor
Product Description
Steel and Stainless Steel Flat Top Chains(Single Hinge Pitch Flat Top Chains) are produced in straight running and side flexing versions and the range are covered by a broad selection of raw materials and chain link profiles to provide solutions for all conveying applications. These Flat Top Chains are characterized by high working loads, highly-resistant to wear and extremely flat and smooth conveying surfaces. The chains can be used in many applications and are not just confined to the Beverage Industry.
|
Suggestion: lubricant The longest distance: 15M Max. speed: lubricant 90M/min, dryness 60M/min Working load: 2600N Material: austenitic stainless steel (non-magnetic) ferritic stainless steel (magnetic) Packing: 10 feet = 3.048 M/box 39pcs/M |
Widely used in all kinds of conveyor to bottle and heavy load such as metal. Especially applied to the beer industry.
|
Chain No.
|
Width (W)
|
Weight
|
Plate Gap (PG)
|
||
|
mm
|
inch
|
kg/m
|
lbs/ft
|
mm
|
|
|
SS512/515 – K217
|
55
|
2.17
|
2.1
|
1.42
|
1.6
|
|
SS512/515 – K250
|
63.5
|
2.50
|
2.3
|
1.55
|
1.6
|
|
SS512/515 – K283
|
72
|
2.83
|
2.4
|
1.62
|
1.6
|
|
SS512/515 – K325
|
82.6
|
3.25
|
2.5
|
1.68
|
1.6
|
|
SS512/515 – K350
|
88.9
|
3.50
|
2.6
|
1.75
|
1.6
|
|
SS512/515 – K385
|
98
|
3.85
|
2.7
|
1.81
|
1.6
|
|
SS512/515 – K400
|
101.6
|
4.00
|
3.2
|
2.15
|
1.6
|
Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to the high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.
