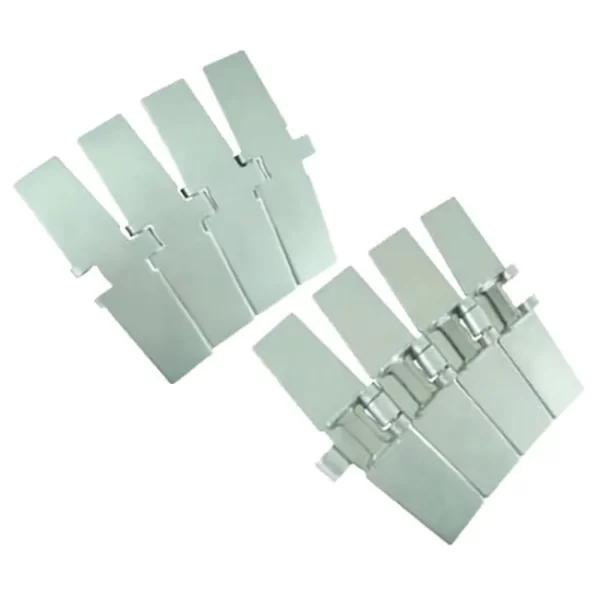

Flat Top Chains SS881 Bevel Sideflexing
Flat Top Chains SS881
SS881 Bevel Sideflexing Stainless Steel Flat Top Chains for beer industry bottle conveyor
Steel and Stainless Steel SS881 Flat Top Chains are produced in straight running and side flexing versions and the range are covered by a broad selection of raw materials and chain link profiles to provide solutions for all conveying applications. These Flat Top Chains are characterized by high working loads, highly-resistant to wear and extremely flat and smooth conveying surfaces. The chains can be used in many applications and are not just confined to the Beverage Industry.
Widely used in all kinds of conveyor of the bottle and heavy load such as metal. Especially applied to the beer industry.
Corner tracks or turning disks can be selected for curved transportation.
Suggestion: lubricant
The longest distance: 12M
Working load: 2250N
Material: austenitic stainless steel (non-magnetic) ferritic stainless steel (magnetic)
Packing: 10 feet = 3.048 M/box 26pcs/M
|
Chain No.
|
Width ( W )
|
Weight
|
||
|
mm
|
inch
|
kg/m
|
lbs/ft
|
|
|
SS881 – K325
|
82.6
|
3.25
|
2.9
|
1.95
|
|
SS881 – K450
|
114.3
|
4.50
|
3.8
|
2.56
|
|
SS881 – K600
|
152.4
|
6.00
|
4.3
|
2.89
|
|
SS881 – K750
|
190.5
|
7.50
|
5.1
|
3.43
|
