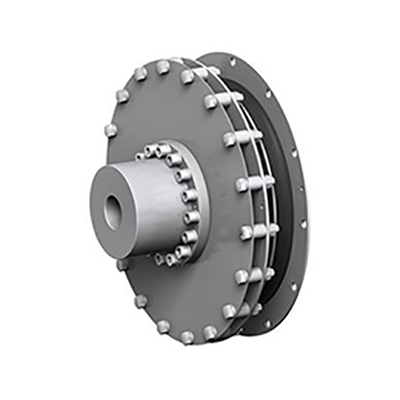

Flexible Couplings

Description

Flexible Couplings

Flexible Shaft Couplings provide torque transmission while helping to improve machine performance and life, but using a low performance coupling or the wrong type of coupling can impede mechanical performance, reduce throughput, and even cause downtime. Products that are too rigid or used outside their recommended ratings can create excessive bearing loads that can impact performance and lifespan.

Diameter

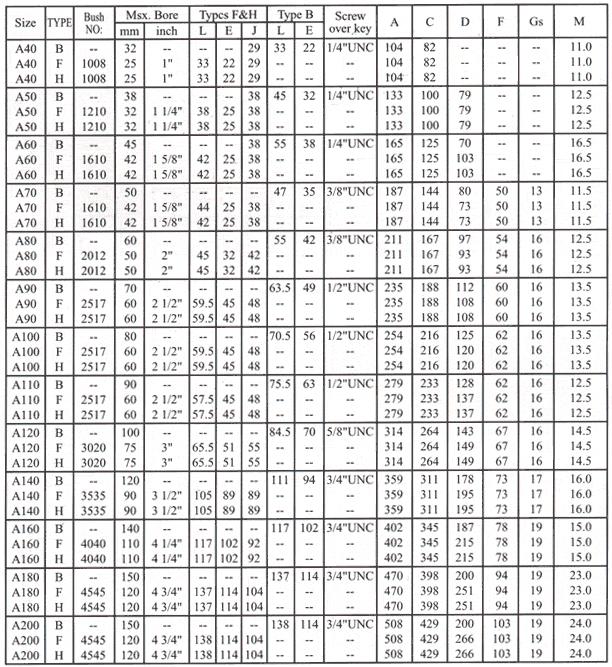

Size	TYPE	Bush NO:	Msx.Bore		Types F&H			Type B		Screw over key	A	C	D	F	Gs	M
Size	TYPE	Bush NO:	mm	nch	L	E	J	L	E	Screw over key	A	C	D	F	Gs	M
A40 A40 A40	B F H	1008 1008	32 25 25	– 1” 1”	– 33 33	22 22	29 29 29	33	22	1/4″UNC	104 104 104	82 82 82		–		11.0 11.0 11.0
A50 A50 A50	B F H	– 1210 1210	38 32 32	– 11/4″ 11/4″	38 38	25 25	38 38 38	45	32	1/4″UNC	133 133 133	100 100 100	79 79 79			12.5 12.5 12.5
A60 A60 A60	B F H	1610 1610	45 42 42	— 15/8” 15/8″	42 42	25 25	38 38 38	55	38	1/4″UNC	165 165 165	125 125 125	70 103 103			16.5 16.5 16.5
A70 A70 A70	B F H	– 1610 1610	50 42 42	— 15/8″ 15/8″	44 42	25 25	38 38	47	35 –	3/8″UNC	187 187 187	144 144 144	80 73 73	50 50 50	13 13 13	11.5 11.5 11.5
A80 A80 A80	B F H	2012 2012	60 50 50	– 2” 2°	45 45	32 32	42 42	55	42	3/8″UNC	211 211 211	167 167 167	97 93 93	54 54 54	16 16 16	12.5 12.5 12.5
A90 A90 A90	B F H	2517 2517	70 60 60	– 21/2″ 21/2″	59.5 59.5	45 45	48 48	63.5	49	1/2″UNC	235 235 235	188 188 188	112 108 108	60 60 60	16 16 16	13.5 13.5 13.5
A100 A100 A100	B F H	2517 2517	80 60 60	— 21/2″ 21/2″	59.5 59.5	45 45	48 48	70.5	56	1/2″UNC	254 254 254	216 216 216	125 120 120	62 62 62	16 16 16	13.5 13.5 13.5
A110 A110 A110	B F H	2517 2517	90 60 60	21/2″ 21/2″	57.5 57.5	45 45	48 48	75.5	63 –	1/2″UNC	279 279 279	233 233 233	128 137 137	62 62 62	16 16 16	12.5 12.5 12.5
A120 A120 A120	B F H	3020 3020	100 75 75	3″ 3”	65.5 65.5	51 51	55 55	84.5	70	5/8″UNC	314 314 314	264 264 264	143 149 149	67 67 67	16 16 16	14.5 14.5 14.5
A140 A140 A140	B F H	3535 3535	120 90 90	31/2″ 31/2″	105 105	89 89	89 89	111	94	3/4″UNC	359 359 359	311 311 311	178 195 195	73 73 73	17 17 17	16.0 16.0 16.0
A160 A160 A160	B F H	4040 4040	140 110 110	41/4” 41/4″	17 117	102 102	92 92	117	102	3/4″UNC	402 402 402	345 345 345	187 215 215	78 78 78	19 19 19	15.0 15.0 15.0
A180 A180 A180	B F H	4545 4545	150 120 120	43/4″ 43/4″	137 137	114 114	104 104	137	114 – –	3/4″UNC –	470 470 470	398 398 398	200 251 251	94 94 94	19 19 19	23.0 23.0 23.0
A200 A200 A200	B F H	4545 4545	150 120 120	43/4″ 43/4″	138 138	114 114	104 104	138	114 –	3/4″UNC –	508 508 508	429 429 429	200 266 266	103 103 103	19 19 19	24.0 24.0 24.0
