Folding Spring Bolts – CL Series

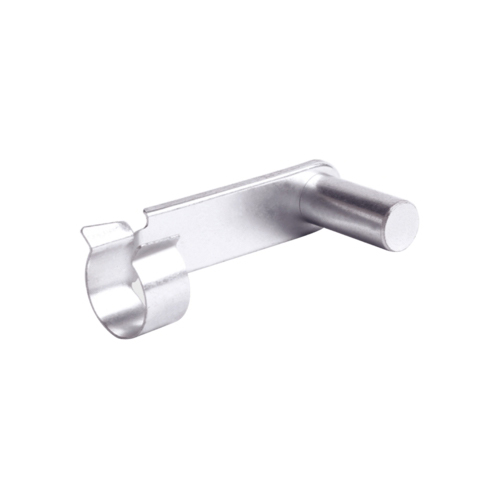

CL Series Folding Spring Bolts
Material and surface treatments:
Bolt: low carbon steel Q235A; Spring: spring steel, hardness approx. 430-500HV. Coated with rust-proof oil, zinc plating or nickel plating. |

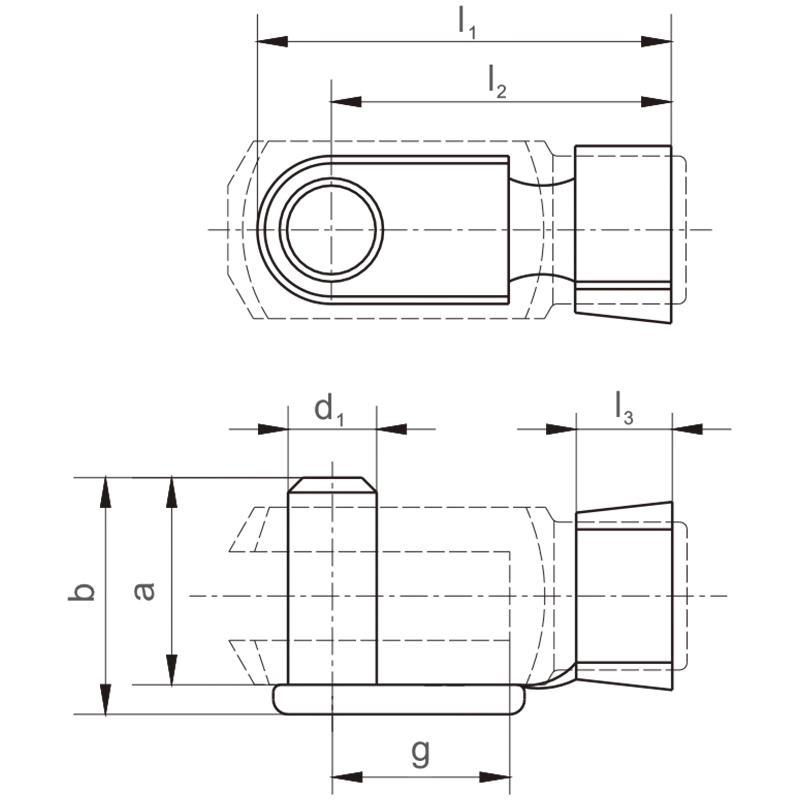

CL Series Folding Spring Bolts Specifications
Part No. | Suitable for clevis | Dimensions | Weight | ||||||
d
h11 |
g | a | b | l1
≈
|
l2
≈
|
l3
≈
|
Kg/100 pieces
|
||
CL 4X8 | FK4X8 | 4 | 8 | 9.5 | 11.0 | 19.0 | 15.0 | 4.5 | 0.145 |
CL 4X16 | FK4X16 | 4 | 16 | 9.5 | 11.0 | 26.0 | 23.5 | 4.5 | 0.174 |
CI 5X10 | FK5X10 | 5 | 10 | 12.0 | 13.5 | 23.0 | 19.0 | 5.5 | 0.254 |
CL 5X20 | FK5X20 | 5 | 20 | 12.0 | 13.5 | 33.0 | 29.0 | 5.5 | 0.310 |
CL 6X12 | FK6X12 | 6 | 12 | 14.0 | 16.0 | 28.0 | 23.0 | 6.5 | 0.458 |
CL 6X24 | FK6X24 | 6 | 24 | 14.0 | 16.0 | 40.0 | 35.0 | 6.5 | 0.516 |
CL 8X16 | FK8X16 | 8 | 16 | 19.0 | 21.5 | 37.0 | 30.0 | 8.0 | 1.059 |
CL 8X32 | FK8X32 | 8 | 32 | 19.0 | 21.5 | 52.0 | 46.0 | 8.0 | 1.155 |
CL 10X20 | FK10X20 | 10 | 20 | 23.0 | 26.0 | 46.0 | 38.0 | 10.0 | 1.938 |
CL 10X40 | FK10X40 | 10 | 40 | 23.0 | 26.0 | 66.0 | 58.0 | 10.0 | 2.046 |
CL 12X24 | FK12X24 | 12 | 24 | 28.0 | 31.0 | 53.0 | 45.0 | 12.0 | 3.306 |
CL 12X48 | FK12X48 | 12 | 48 | 28.0 | 31.0 | 78.0 | 69.0 | 12.0 | 3.500 |
CL 14X28 | FK14X28 | 14 | 28 | 31.0 | 34.0 | 62.0 | 52.0 | 14.0 | 4.722 |
CL 14X56 | FK14X56 | 14 | 56 | 31.0 | 34.0 | 92.0 | 82.0 | 14.0 | 5.076 |
CL 16X32 | FK16X32 | 16 | 32 | 36.0 | 39.0 | 73.0 | 62.0 | 16.0 | 6.940 |
CL 16X64 | FK16X64 | 16 | 64 | 36.0 | 39.0 | 103.0 | 92.0 | 16.0 | 7.440 |
CL 20X40 | FK20X40 | 20 | 40 | 45.0 | 50.0 | 87.5 | 71.5 | 16.0 | 13.00 |
