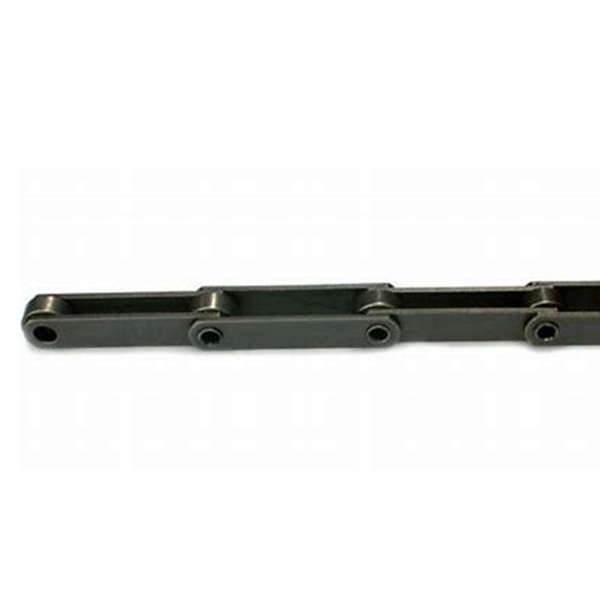

FVC series hollow pin conveyor chains
Hollow pin chains are used for a wide variety of conveying applications in industry. Since the chains are used as double strand chains, we offer the option of pair-matching.

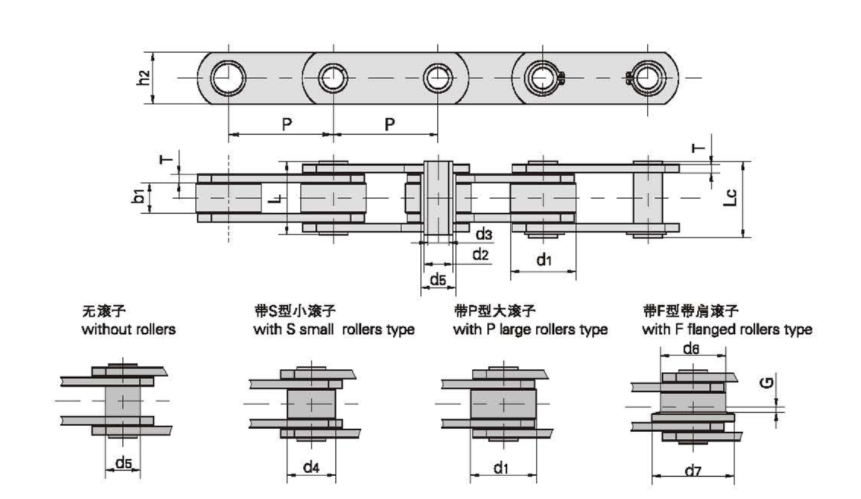

Dimensional parameters
DIN
链号 DIN Chain No. |
节距
Pitch |
滚子尺寸 Roller dimension | ||||||||||
P | d1
max |
d4
max |
d6
max |
d7
max |
G | |||||||
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
FVC63 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 40.0 | 26.0 | 50.0 | 63.0 | 5.0 | ||
FVC90 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 48.0 | 30.0 | 63.0 | 78.0 | 6.5 |
FVC112 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 55.0 | 32.0 | 72.0 | 90.0 | 7.5 | ||
FVC140 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 60.0 | 36.0 | 80.0 | 100.0 | 9.0 | ||
FVC180 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 70.0 | 42.0 | 100.0 | 125.0 | 13.0 | ||
FVC260 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 80.0 | 50.0 | 125.0 | 155.0 | 15.0 | ||
FVC315 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 90.0 | 60.0 | 140.0 | 175.0 | 18.0 |
DIN
链号 DIN Chain No. |
内节内宽 Width between inner plates | 销轴直径
Pin diameter |
套简直径
Bush diameter |
销轴长度
Pin length |
链板厚度
Plate thickness |
链板高度
Plate depth |
极限拉伸载荷 Ultimate tensile strength | ||
b1
min |
d2
max |
d3
min |
d5
max |
L max | Lc
max |
T max | h2
max |
Q
min |
|
mm | mm | mm | mm | mm | mm | mm | mm | kN | |
FVC63 | 22.0 | 12.0 | 8.0 | 18.0 | 45.0 | 50.5 | 4.0 | 30.0 | 46.0 |
FVC90 | 25.0 | 14.0 | 10.0 | 20.0 | 53.0 | 56.5 | 5.0 | 35.0 | 73.0 |
FVC112 | 30.0 | 16.0 | 11.0 | 22.0 | 62.0 | 63.0 | 6.0 | 40.0 | 90.0 |
FVC140 | 35.0 | 18.0 | 12.0 | 26.0 | 67.0 | 68.5 | 6.0 | 45.0 | 110.0 |
FVC180 | 45.0 | 20.0 | 14.0 | 30.0 | 86.0 | 88.0 | 8.0 | 50.0 | 145.0 |
FVC250 | 55,0 | 26.0 | 18.0 | 36.0 | 97.0 | 103.5 | 8.0 | 60.0 | 215.0 |
FVC315 | 65.0 | 30.0 | 20.0 | 42.0 | 117.0 | 121.5 | 10.0 | 70.0 | 295.0 |
