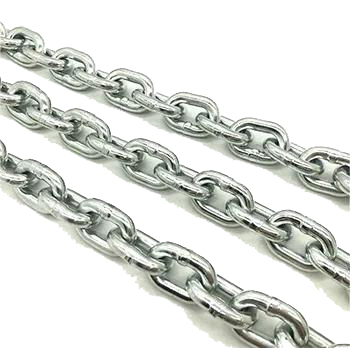

G30 Din766 Electro Gavanized Short Link Chain

  • Material: Low Carbon Steel
  • Surface Treatment: Mainly Polishing, Electro-Galvanized
  • Tension Grade: G25/G30
  • In Short/Mid/Long Link Series
Category:
Description

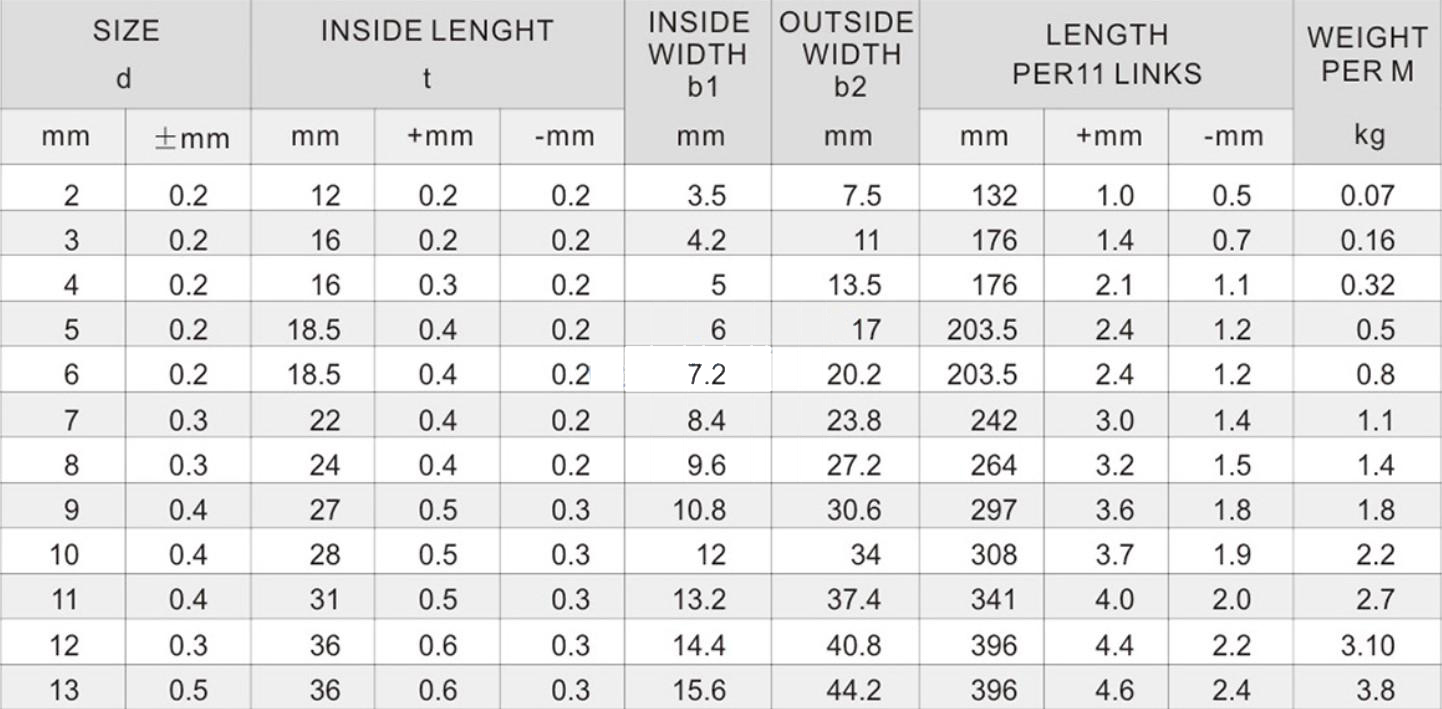

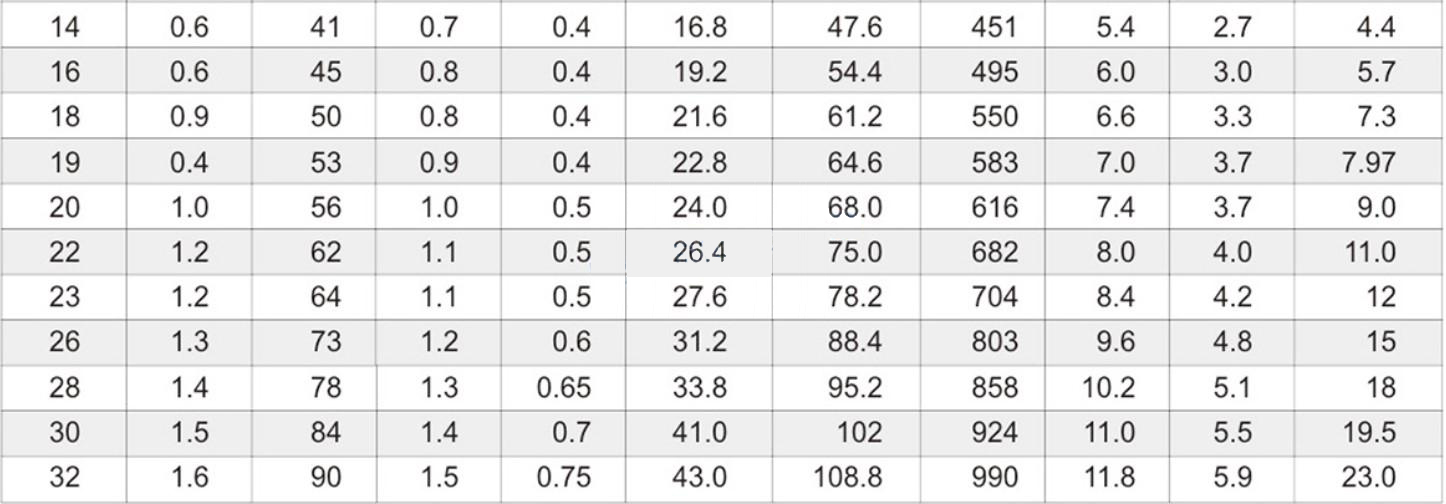

G30 Din766 Electro Galvanized Short Link Chain

G30 Din766 Short Link Chain is a premium quality chain made from mild steel, hot-dip galvanized. It provides a precise pitch for each chain link. The G30 chain is designed to be universal and has four times the breaking load of the G43. Unlike the G43 chain, which is fragile and breaks at higher speeds, the G30 chain is highly durable.

Our company also provides many conveyor chain types. If you need to know more product types and information, such as conveyor chain, you can contact us by email or communicate with our online staff. Looking forward to working with you. G30 Din766 Short Link Chain

Link chain applications

Link chains are mechanical links that carry loads on a flat surface. The active action of the links on the sprocket allows the chain to carry large weights with minimal stretch. Due to the internal mechanical advantage of the chain link, the efficiency of the chain link bypassing the sprocket is close to 100%. The links are made of high hardness bearing surfaces that resist wearing. They are also available in special steel to suit specific environments.
There are two types of link chains. One is a flat top, and the other is an articulated one. Both types are used for lifting and balancing applications. Blade chains are beneficial for varying loads and can withstand shocks. Additionally, they are available in many different sizes, making them suitable for many applications.
The inner link plate is 5/16 of the link pitch, while the outer link plate is one-eighth the diameter of the rollers. For a chain to work properly, it must have a specific spacing and width. This is because the links have to line up and fit over the teeth of the sprocket.
Chainrings come in many shapes and sizes but are made from interlocking rings. Typically, a straight chain consists of two or three interlocking rings. These are used in all industries.

One-stop Supplier of Chain Transmission Products
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “G30 Din766 Electro Gavanized Short Link Chain”

Your email address will not be published. Required fields are marked *

Packing&Shipping & Delivery

china Packing Shipping Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.
We also can custom color package according to your demand
