GE coupling
GE coupling
 |
 |
BENEFITS INCLUDE
High Torque Transmission: Capable of transmitting torque in the range from 2 to 270 kNm, with special designs available for even higher torques up to 450 kNm.
Simple Flange Connection: Facilitates easy connection of components like flywheels to shafts, simplifying assembly and maintenance procedures.
Flexible Design: Utilizes radially arranged rubber elements to transmit torque from input to output. The number of rubber elements can be adjusted to achieve different stiffness levels, ensuring an optimal match for specific application requirements.
Maintenance Convenience: Allows for radial replacement of rubber elements without the need to disassemble the coupled machines. This feature minimizes downtime and maintenance costs.
Shock Absorption: Particularly suited for applications with high torque shock loads, where the coupling effectively absorbs and dampens these shocks, thereby protecting connected machinery.

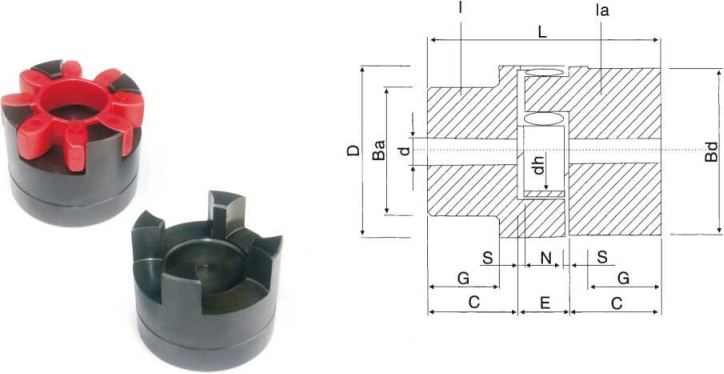

Diameter Data
| SIZE | Component | Splder(part2)rated rorqe(NM) Std bore 92 Sh A 98 Sh A 64 Sh D (d) | Finish bore (d)min-max | L | C | E | N | S | D | dh | ba:bd | G | weight
(kg) |
|||
| 14 | 4-16 | 35 | 11 | 13 | 10 | 1.5 | 30 | 10 | 045 | |||||||
| 19/24 | 1 | 10 | 17 | 21 | 6 | 6-16 | 66 | 25 | 16 | 12 | 2 | 40 | 18 | 32 | 20 | |
| la | 6 | 6-24 | 40 | – | 0.55 | |||||||||||
| 24/32 | 1 | 35 | 60 | 75 | 9 | 9-24 | 78 | 30 | 18 | 14 | 2 | 55 | 27 | 40 | 24 | 0.95 |
| la | 9 | 9-32 | 55 | – | 1.17 | |||||||||||
| 28/38 | 1 | 95 | 160 | 200 | 10 | 10-28 | 90 | 35 | 20 | 15 | 2.5 | 65 | 30 | 48 | 28 | 1.6 |
| la | 10 | 10-38 | 65 | – | 1.95 | |||||||||||
| 38/45 | 1 | 190 | 325 | 405 | 12 | 12-38 | 114 | 45 | 24 | 18 | 3 | 80 | 38 | 66 | 37 | 3 |
| la | 12 | 12-45 | 78 | 3.8 | ||||||||||||
| 42/55 | 1 | 265 | 450 | 560 | 12 | 12-42 | 126 | 50 | 26 | 20 | 3 | 95 | 46 | 75 | 40 | 4.45 |
| la | 12 | 12-55 | 94 | 6 | ||||||||||||
| 48/60 | 1 | 310 | 525 | 655 | 12 | 12-48 | 140 | 56 | 28 | 21 | 3.5 | 105 | 51 | 85 | 45 | 6.15 |
| la | 12 | 12-60 | 104 | 8 | ||||||||||||
| 55/70 | 1 | 410 | 685 | 825 | 15 | 15-55 | 160 | 65 | 30 | 22 | 4 | 120 | 60 | 98 | 52 | 9.5 |
| la | 15 | 15-70 | 118 | 12.35 | ||||||||||||
| 65/75 | 1 | 625 | 940 | 1175 | 15 | 15-65 | 185 | 75 | 35 | 26 | 4.5 | 135 | 68 | 115 | 61 | 14.5 |
| la | 15 | 15-75 | 133 | 18.25 | ||||||||||||
| 75/90 | 1 | 1280 | 1920 | 2400 | 15 | 15-75 | 210 | 85 | 40 | 30 | 5 | 160 | 80 | 135 | 69 | 22.5 |
| la | 15 | 15-90 | 158 | 28 | ||||||||||||
| 90/100 | 1 | 2400 | 3600 | 4500 | 38 | 38-90 | 245 | 100 | 45 | 34 | 5.5 | 200 | 100 | 160 | 81 | 38.1 |
| la | 38 | 38-100 | 198 | 52 | ||||||||||||
