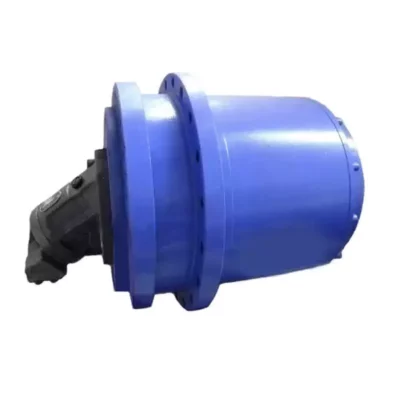

GFT Series Planetary Gearbox for Vehicle Replace Bosch Rexroth GFT09T2 GFT13T2 GFT17T2 GFT17T3 GFT24T3 GFT26T2 GFT36T3
The hydrostatic drive series 20 consists of a three-stage or four-stage planetary gearbox combined with a hydraulic axial piston motor to form a compact drive unit. The entire unit is a drive component for chain drive vehicles, cranes, and other mobile applications.
The Models We Can Replace
The hydrostatic drive series 20 consists of a three-stage or four-stage planetary gearbox combined with a hydraulic axial piston motor to form a compact drive unit. The entire unit is a drive component for chain drive vehicles, cranes, and other mobile applications.
BOSCH Model GFT09T2 GFT13T2 GFT17T2 GFT17T3 GFT24T3 GFT26T2 GFT36T3 Our Model Powertrans-GFT09T2 Powertrans-GFT13T2 Powertrans-GFT17T2 Powertrans-GFT17T3 Powertrans-GFT24T3 Powertrans-GFT26T2 Powertrans-GFT36T3 BOSCH Model GFT40T2 GFT50T3 GFT60T2 GFT60T3 GFT80T3 GFT110T4 GFT160T3 Our Model Powertrans-GFT40T2 Powertrans-GFT50T3 Powertrans-GFT60T2 Powertrans-GFT60T3 Powertrans-GFT80T3 Powertrans-GFT110T4 Powertrans-GFT160T3 BOSCH Model GFT220T3 GFT260T3 GFT330T3 GFT450T3 Our Model Powertrans-GFT220T3 Powertrans-GFT260T3 Powertrans-GFT330T3 Powertrans-GFT450T3 BOSCH Model GFT13W2 GFT17W2 GFT17W3 GFT24W2 GFT26W2 GFT36W3 GFT40W2 Our Model Powertrans-GFT13W2 Powertrans-GFT17W2 Powertrans-GFT17W3 Powertrans-GFT24W2 Powertrans-GFT26W2 Powertrans-GFT36W3 Powertrans-GFT40W2 BOSCH Model GFT50W3 GFT60W3 GFT80W3 GFT110W3 GFT160W3 GFT220W3 GFT330W3 Our Model Powertrans-GFT50W3 Powertrans-GFT60W3 Powertrans-GFT80W3 Powertrans-GFT110W3 Powertrans-GFT160W3 Powertrans-GFT220W3 Powertrans-GFT330W3 BOSCH Model GFB09T2 GFB17T2 GFB17T3 GFB24T3 GFB26T2 GFB36T3 GFB40T2 Our Model Powertrans-GFB09T2 Powertrans-GFB17T2 Powertrans-GFB17T3 Powertrans-GFB24T3 Powertrans-GFB26T2 Powertrans-GFB36T3 Powertrans-GFB40T2 BOSCH Model GFB50T3 GFB60T2 GFB60T3 GFB80T3 GFB110T3 GFB110T4 Our Model Powertrans-GFB50T3 Powertrans-GFB60T2 Powertrans-GFB60T3 Powertrans-GFB80T3 Powertrans-GFB110T3 Powertrans-GFB110T4
The modular and flexible design of the GFT series means that it can be supplied almost from stock with a short delivery time. In addition, it offers a wide range of nominal sizes and ratios, combined with simple and fast configurations. The product portfolio in the GFT series includes 12 nominal sizes for open-loop or closed-loop hydraulic circuits. Starting from the hydro track gft09t2, the rated output torque is 10000 nm, to the gft450t3 is 130000 nm. In each case, there are several different transmission ratios.
GFT series(Planetary Gearbox for Vehicle) can choose to install a dynamic multi-disc brake. For example, combined with Power-trans’s high-level braking HLB, self-propelled equipment can meet the strict safety standards of driving speed up to 50 kph required by many regions (such as Germany (StVZO) or the United States (ASAE). According to their regulations, a series of manufacturing machines equipped with Power-trans transmission (including multi-disc brakes) have been approved in both countries. A unique function: the multi-disc brake is located inside the transmission to prevent dust and wet weather. This contributes to the compactness of the entire transmission while leading to low maintenance operations. In this way, the multi-disc brake in the hydro track GFT provides an advanced alternative to the conventional disc or drum brake and is also 75% lighter than these conventional reducers.
Feature of Planetary Gearbox for Vehicle
- Compact, space-saving three or four-stage planetary gears
transmission case - Robust design
- Integrated static multi-disc parking brake
- It may be a different series to assemble variable plug-in and fixed plug-in motors.
- Easy to assemble
- Easy oil change
- Disconnect mechanism (optional, only applicable to size GFT 220 / 260 / 330)
- For travel drives in tracked and wheeled vehicles
- Also suitable for other rotary motion sequences, e.g., drum drives, milling drum drives, etc.
- Two-, three- or four-stage planetary gearbox
- For attachment of fixed or variable motors (A2FM/E, A6VM/E, A10VE)
- Torque output 9500 … 450000 Nm
Parameters of Planetary Gearbox for Vehicle
Take GFT 9 T2 as an example;
GFT indicates Travel drive GFT;
9 indicates:Size (Size = Output torque T2 [kNm]
T indicates: T = Track laying / R = Wheel drive
2 indicates: Number of gear stages
| Type/design variant GFT |
Output torque T2 max Nm |
Gear ratio from/to i |
| GFT 9 T2 | 9000 | 47.6 – 55.3 |
| GFT 13 T2 | 13000 | 22.6 – 37.6 |
| GFT 17 T2 | 17000 | 37.6 – 54 |
| GFT 17 T3 | 17000 | 77.9 – 88.2 |
| GFT 24 T3 | 24000 | 90.1 – 137.2 |
| GFT 26 T2 | 26000 | 42.9 – 62 |
| GFT 34 T2 | 34000 | 42.9 – 50,5 |
| GFT 36 T3 | 36000 | 115 – 138.8 |
| GFT 40 T2 | 40000 | 35.9 – 59.1 |
| GFT 50 T3 | 50000 | 73.9 – 177.5 |
| GFT 60 T3 | 60000 | 94.8 – 169,9 |
| GFT 65 T2 | 65000 | 55.4 |
| GFT 80 T3 | 80000 | 99 – 215 |
| GFT 110 T3 | 110000 | 87.6 – 173.9 |
| GFT 160 T3 | 160000 | 210.8 – 251 |
| GFT 220 T3 / R3 | 220000 | 67.7 – 365 |
| GFT 330 T3 | 330000 | 168.9 – 302.4 |
| GFT 330 T4 | 330000 / 380000 | 451.7 – 826.6 |
| GFT 450 T4 | 450000 | 421.7 |
