GFT-W Series Planetary Gearbox Replace Bosch Rexroth GFT13W2 GFT17W2 GFT17W3 GFT24W2 GFT26W2 GFT36W3 GFT40W2GFT50W3 GFT60W3 GFT80W3 GFT110W3 GFT160W3 GFT220W3
We’re a professional manufacturer of planetary reducers/gearboxes. Currently, we have developed tens.
Thousands of specifications of planetary reducer/gearbox, travel drive, swing drive, and winch drive. The ratio range is 3.3 ~ 9000, and the output torque range is 500 ~ 1200000n. M. Installation, size, and performance parameters of reducer.
It is identical to famous European brands and can be replaced entirely and interchanged.
The Models We Can Replace GFT-W Series Planetary Gearbox

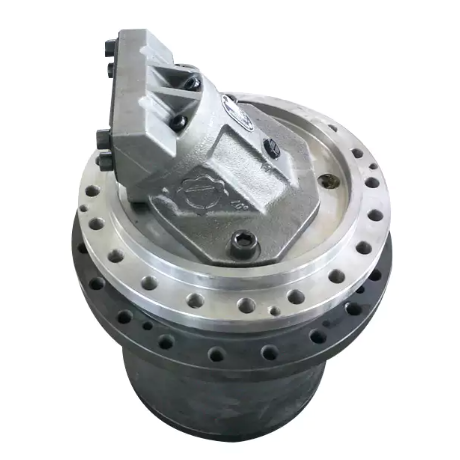

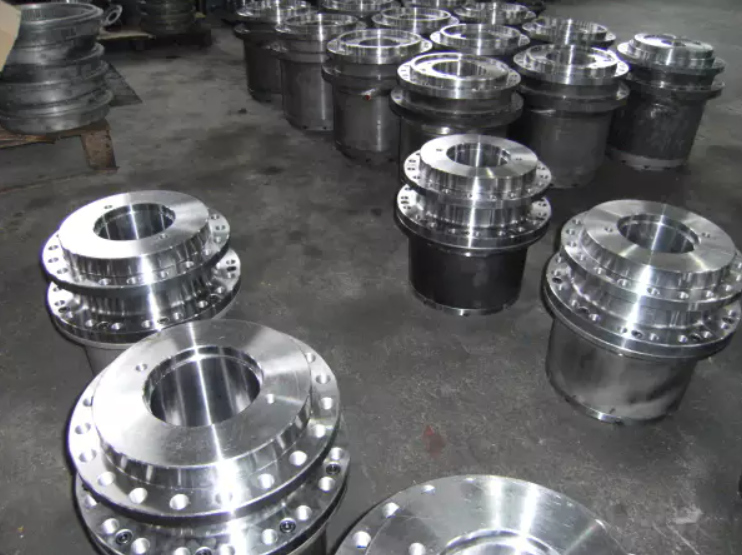

GFT-W Series Planetary Gearbox
| BOSCH REXROTH | GFT13W2 | GFT17W2 | GFT17W3 | GFT24W2 | GFT26W2 | GFT36W3 | GFT40W2 |
| / | GFT13W2 | GFT17W2 | GFT17W3 | GFT24W2 | GFT26W2 | GFT36W3 | GFT40W2 |
| BOSCH REXROTH | GFT50W3 | GFT60W3 | GFT80W3 | GFT110W3 | GFT160W3 | GFT220W3 | GFT330W3 |
| / | GFT50W3 | GFT60W3 | GFT80W3 | GFT110W3 | GFT160W3 | GFT220W3 | GFT330W3 |
The hydraulic winch driving mobile GFT-W is an ideal driving part of the winch. They work perfectly in the most demanding applications and under harsh operating conditions. Mobile GFT-W winch drives are used for various winches – Mobile and crawler cranes, railway cranes, shipboard, dock, and container cranes. Due to its compact design, the gear unit can be installed in the wire rope drum in a space-saving manner. They are designed to facilitate installation and maintenance. The high-quality manufacturing process and case hardened gears and hardened tempered. Case hardened gear rings ensure excellent load-carrying capacity, operational safety, and low noise operating characteristics.
The gear teeth are designed according to the standard specifications, and our strength calculations are developed based on our comprehensive technical knowledge and best adapted to our manufacturing process. Our hydraulic motors provide the best working efficiency for the driving device.
Features of GFT-W Series Planetary Gearbox
- For direct installation in winch drums, e.g., for crane applications
- Two- or three-stage planetary gearbox
- Rope pull force 50 … 684 kN
- Torque output 9500 … 325000 Nm
- Compact and space-saving planetary gearbox design
- The planetary gear adopts a complete set of bearings
- Robust bearing system to absorb the force exerted by the bearing, the rope broke
- Easy to assemble, Easy oil change
- Integrated static multi-disc parking brake
- Low noise operation
Parameter of GFT-W Series Planetary Gearbox
| Type/design GFT-W |
Output torque 1) T2 max Nm |
Rope pull max. 2) kN |
Gear ratio from/to i |
| GFT 17 W2 | 14000 | 67 | 37,6 – 54 |
| GFT 17 W3 | 14000 | 74 | 77,9 – 102,6 |
| GFT 24 W3 | 19000 | 99 | 90,1 – 137,2 |
| GFT 26 W2 | 18000 | 84 | 42,9 – 62 |
| GFT 36 W2 | 26000 | 118 | 67 – 138,8 |
| GFT 40 W2 | 27000 | 108 | 35,9 – 59,1 |
| GFT 50 W2 | 37500 | 150 | 84,2 – 125,6 |
| GFT 60 W2 | 42500 | 164 | 63,8 – 94,8 |
| GFT 80 W2 | 67000 | 231 | 61,3 – 215 |
| GFT 110 W2 | 100000 | 300 | 79,5 – 173,9 |
| GFT 160 W2 | 140000 | 373 | 133 – 251 |
| GFT 220 W2 | 200000 | 471 | 97,7 – 293 |
| GFT 330 W2 | 275000 | 595 | 168,9 – 252 |
| GFT 450 W2 | 325000 | 684 | 293,4 • 421,7 |
About Us
We’re a professional manufacturer of planetary reducers/gearboxes. Currently, we have developed tens.
Thousands of specifications of planetary reducer/gearbox, travel drive, swing drive, and winch drive. The ratio range is 3.3 ~ 9000, and the output torque range is 500 ~ 1200000n. M. Installation, size, and performance parameters of reducer.
It is identical to famous European brands and replacement them entirely and interchanged.
Details are as follows:
Bonfiglioli (300 series, 700C series, 700T series, 600W Series)
Brevini (EM, ED, et, EQ, EC, PD, PDA, CTD, CTU, SL type)
Dinami oil (re, GB, RA, GBA type)
Regiana ridutori (RR, RA type)
Angle (PG, PGA, PGR, PGW type)
Rexroth (GFT, gft-w, GFB type)
Rossi (R2E, R3E, r4e, rce, rc2e, rc3e, mr2e, mr3e, Mr 4E, MRCE, mrc2e, mrc3e)
Zolen (zhp3.13, zhp3-15, zhp1.19, zhp2.20, zhp4.22, zhp6.24, zhp5.25, zhp8.26, zhp7.27, zhp9.29, zhp31, zhp13.32)
FAIRFIELD、AUBURN GEAR、OMNI GEAR、O& K et al. Therefore, our planetary reducers/gearboxes can be used to replace the gearboxes of these brands.
Packing Shipping Delivery
  |
 |
|
 |
 |
|
How to choose power transmissions parts and industrial products which meet our requirement
| Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
| Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
| Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
| Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
| Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
| Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
| Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
| Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

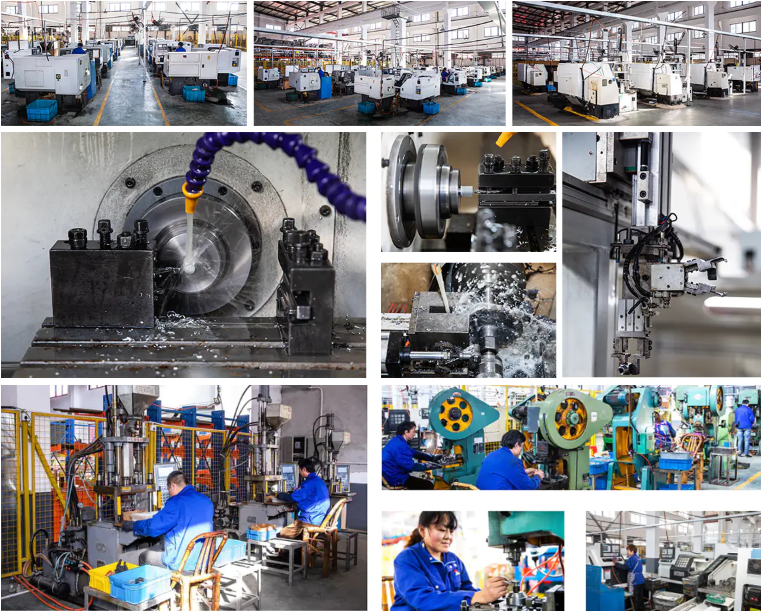

What is the producing process?
