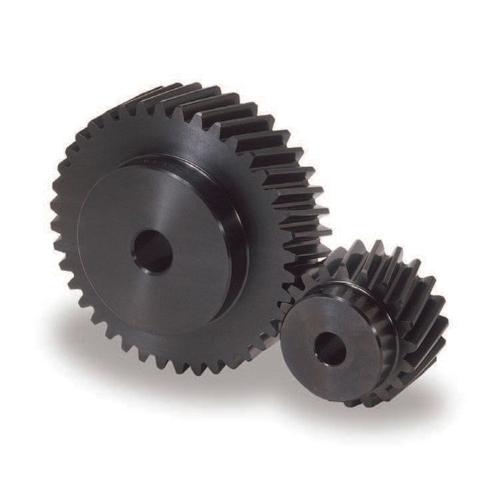

Ground Helical Gears

Ground helical gears have excellent strength and wear resistance, allowing your designs to be more compact.

Description

The ground helical gears are an advanced version of the spur gear design. The teeth of a ground helical gear are not parallel to the axis of rotation like spur gear but are set at an angle. This allows the teeth to mesh more slowly, resulting in smoother and quieter operation. Our produces ground 15° helical gears and ground 19° 31′ helical gears for high precision applications. We offer left-hand helical gears and right-hand helical gears – a pair of reversed helical gears will rotate parallel shafts in opposite directions. A set of left-hand and right-hand 15° helical gears can be used in place of spur gears. The slight helix angle of the gears provides smoother motion while applying only a small axial force on the shaft and bearings. We design Our 19°31′ gears to run with racks with the same helix angle.
Module 1, 100 Tooth, Left Hand, Helical Gears
Bore Type: Ground
Transverse Module: 1
No. of teeth: 100
The direction of Helix: Left Hand
Shape: S1
Bore (A): 15.0 (mm)
Hub Diameter (B): 50.0 (mm)
Pitch Diameter (C): 100.00 (mm)
Outer Diameter (D): 102.00 (mm)
Face Width (E): 8.0 (mm)
Hub Width (F): 10.0 (mm)
Total Length (G): 18.00 (mm)
Helix Angle: 21°30′
Pressure Angle: 20°

Advantages

More accurate finish: Precision helical gears feature a more precise tooth finish than machined or cut gears, providing a better, smoother gear teeth mesh for more controlled operation.
More material options: While machining, stamping, and other manufacturing processes may limit material options, nearly any metal or alloy can be made into gear via grinding. You can improve performance by selecting the best-suited material for your application rather than the “best available option.”
Higher loads & better performance: The helical gears can handle higher loads and higher stresses than gears produced via other means. Our gears are beneficial in large amounts of torque applications.

Thanks to these unique advantages, precision helical gears can outperform gears manufactured through other means in most applications. Helical gears deliver smoother performance and greater longevity.
