GS HS series forging scraper chain

Description

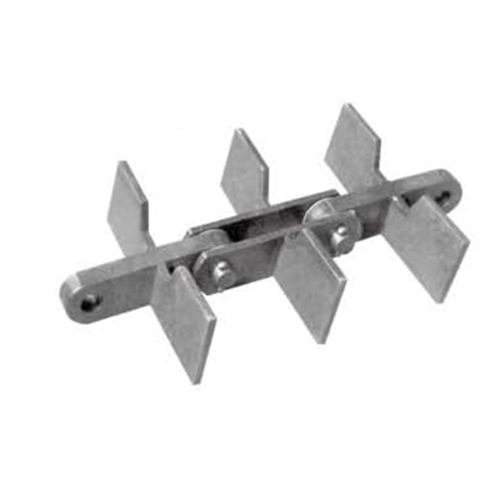

GS HS series forging scraper chain

Forging a scraper chain involves several steps, including designing the chain, selecting materials, forging, and then finishing. Here’s a high-level overview of the process:

Design and Planning:

Design the Chain: Create detailed drawings or CAD models of the scraper chain, including the dimensions and the shape of each link.
Material Selection: Choose a suitable material based on the application’s requirements, such as carbon steel for high strength or alloy steel for enhanced durability.

Material Preparation:

Cutting: Cut the raw material (steel bars or billets) into appropriate lengths for forging.
Heating: Heat the material to a temperature where it becomes malleable, typically between 1,000 and 1,200 degrees Celsius (1,832 to 2,192 degrees Fahrenheit) for steel.

Forging:

Forming Links: Use a forge to shape the heated material into the desired link shapes. This can be done using a hammer or a press.
Precision: Ensure that each link is forged to the precise dimensions and shape required. Forging usually involves hammering or pressing the material into the rough shape of the chain links.

Heat Treatment:

Hardening: Heat the forged links to a high temperature and then rapidly cool them (quenching) to increase hardness.
Tempering: Reheat the hardened links to a lower temperature and then cool them slowly to reduce brittleness and improve toughness.

Finishing:

Machining: Machine the links to ensure they meet precise dimensions and have smooth surfaces.
Assembly: Assemble the links into chains, which may involve welding or mechanical fastening depending on the design.

Testing and Quality Control:

Inspection: Conduct thorough inspections to ensure that the scraper chain meets all specifications and quality standards.
Testing: Perform any necessary tests, such as tensile strength tests or fatigue tests, to confirm the chain’s performance under real-world conditions.

Final Processing:

Coating or Plating: Apply coatings or plating to protect the chain from corrosion and wear, if necessary.
Packaging: Package the finished scraper chains for shipping and use.

Diameter Data

Chain	Pitch	Inner Width	Diameter	Height of	Thickness ofSidebar		Dimensions of Scraper				Tensile
No.		of Outer Link	of Pin	Sidebar							Strength

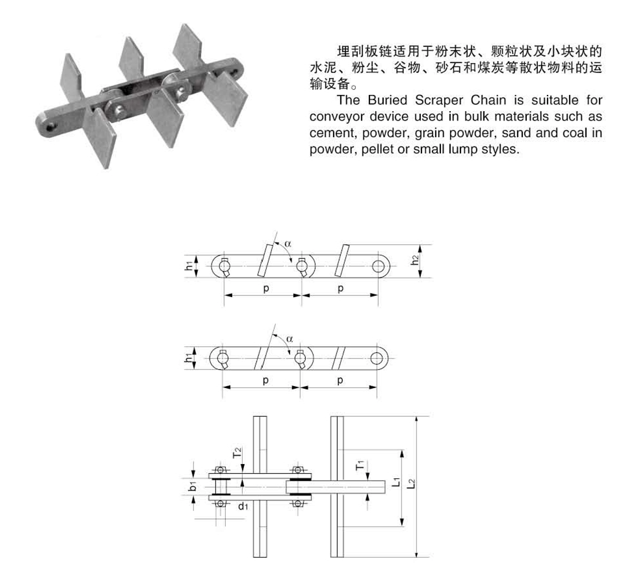

	P	b1(min)	d2	h1	Inner Sidebar	outer Sidebar	L1	L2	h2	a	Q(min)
	mm	mm	mm	mm	T1(mm)	T2(mm)	mm	mm	mm	mm	KN
GS31F	152.4	32.5	22	45	25.4	10	106	280	65.5	75°	224.0
GS43F	152.4	34.0	22	45	28	12	115	400	80.5	90°	224.0
HS200	152.4	32.5	22	45	25.4	10	–	160	–	75°	224.0
HS250	152.4	32.5	22	45	25.4	10	106	210	65.5	75°	224.0
HS310	152.4	32.5	22	45	25.4	10	106	270	65.5	75°	224.0
HS450	200.0	41.0	35	80	35.0	14	150	400	121.3	75°	600.0
HS250A	152.4	32.5	22	45	25.4	10	—	210	—	75°	224.0
HS310A	152.4	32.5	22	45	25.4	10	–	270	–	75°	224.0
