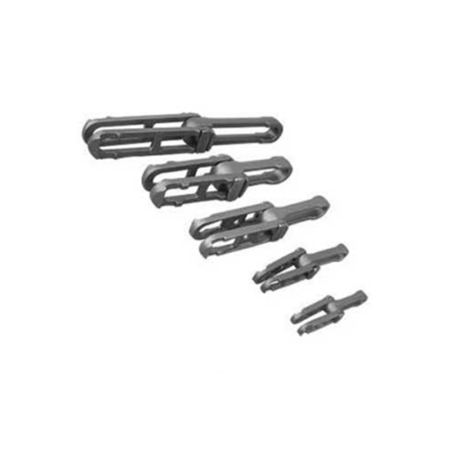

H S X series drop forged rivetless chain
H S X series drop forged rivetless chain
- Precise pitch control provides consistency and reliability.
- Smooth forged bearing areas allow for extended wear life.
- Proprietary heat treatment allows for a premium balance of strength, toughness, and durability.
- Easy assembly/disassembly – no tools required.

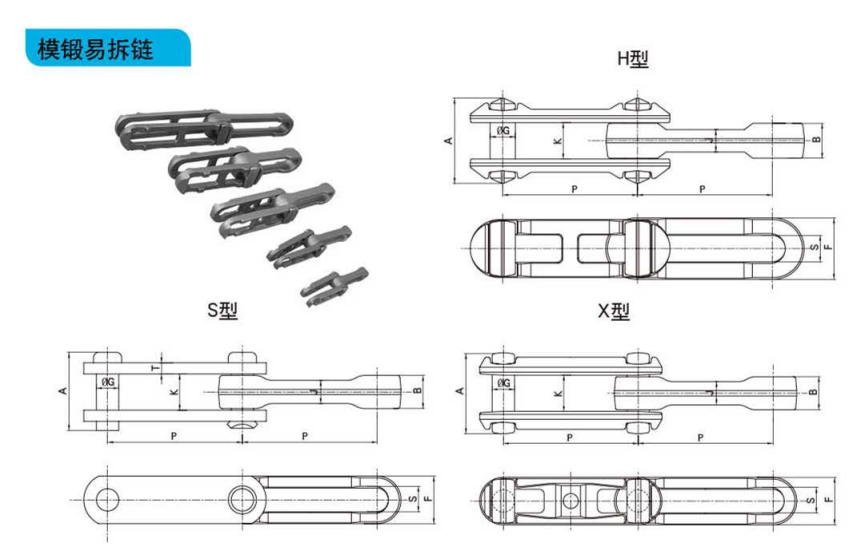

Diameter Data
chain No. | pitch | (mm) | Lateral angle | Standard reclamation length | mm | KN | Kg/m | ||||||
A | F | G | J | K | S | ||||||||
Imperial | 80H | 80 | 73 | 42 | 18.4 | 20 | 34.5 | 19.5 | 7 | 38 | 3032/3058 | 250 | 7.8 |
X348 | 76.6 | 46 | 27 | 12.7 | 12.7 | 20.6 | 13.5 | 9 | 40 | 3050.5/3095.2 | 110 | 3.2 | |
X458 | 102.4 | 57 | 37 | 16 | 16 | 26.5 | 17.5 | 9 | 30 | 3063.1/3090.2 | 210 | 5.2 | |
468H | 102.4 | 84.1 | 47.8 | 18 | 29.5 | 42.9 | 22.2 | 9 | 30 | 3063.1/3090.2 | 318 | 11.5 | |
X658 | 153.2 | 55.6 | 35 | 16 | 16 | 57.2 | 17.5 | 7 | 20 | 305 5.1/3082.8 | 210 | 4 | |
X678 | 153.2 | 77 | 50.8 | 22.2 | 21 | 34.2 | 25 | 7 | 20 | 3055.1/3082.8 | 320 | 9.5 | |
678 | 153.2 | 77 | 50.8 | 22.2 | 21 | 34.2 | 25 | 7 | 20 | 3055.1/3082.8 | 320 | 9.5 | |
698 | 153.2 | 95.25 | 64 | 28 | 25.4 | 41.3 | 32 | 5 | 20 | 3055.1/3082.8 | 515 | 17 | |
998 | 229.4 | 95.25 | 67.5 | 28 | 25.4 | 41 .3 | 32 | 5 | 13 | 3205/3232.4 | 515 | 14.8 | |
9118 | 229.4 | 123.8 | 76.2 | 35 | 33.5 | 52 | 38.1 | 5 | 13 | 3205/3232.4 | 832 | 24.2 | |
S348 | 76.6 | 38.9 | 28.6 | 12.7 | 12.7 | 20.6 | 13.5 | 9 | 40 | 3050.5/3095.2 | 110 | 3.2 | |
S458 | 102.4 | 52.1 | 35 | 16 | 16 | 26.5 | 17.5 | 9 | 30 | 3063.1/3090.2 | 210 | 5.2 | |
S678 | 153.2 | 69.8 | 50.8 | 22.2 | 21 | 34.2 | 25 | 7 | 20 | 3055.1/3082.8 | 320 | 9.5 | |
S698 | 153.2 | 73 | 68.3 | 28 | 25.4 | 41 .3 | 32 | 5 | 20 | 3055.1/3082.8 | 515 | 17 | |
S9118 | 229.4 | 98.4 | 77.8 | 35 | 33.5 | 52 | 38.1 | 5 | 13 | 3205/3232.4 | 832 | 24.2 | |
Metric | XT100 | 100 | 57 | 37 | 16 | 16 | 26.5 | 17.5 | 9 | 30 | 2991.3/3081.3 | 210 | 5.2 |
XT160 | 160 | 78 | 54 | 24 | 20.5 | 36 | 28 | 7 | 20 | 3190.7/3219.5 | 318 | 10.3 |
