HB series hollow pin chains
HB series hollow pin chains
Applications
Hollow pin roller chains are versatile and can be used in a wide variety of industries and applications, including:
- Bakeries:
- Usage: Conveying trays, dough, and baked goods through different stages of the production process.
- Advantages: The ability to customize with attachments helps in handling various bakery items effectively.
- Overhead Conveyors:
- Usage: Transporting items or components suspended from the chain, often in manufacturing or assembly lines.
- Advantages: The hollow pins allow for easy attachment of carriers or trolleys, which is ideal for overhead systems.
- Elevators:
- Usage: Vertical transportation of materials or products in various industries.
- Advantages: The lightweight nature of hollow pin chains helps in reducing the load on the drive mechanism.
- Poultry Processing:
- Usage: Conveying poultry through various stages of processing, such as washing, inspection, and packaging.
- Advantages: custom design with attachments to handle different types of poultry and processing requirements is acceptable.
- Agricultural Applications:
- Usage: Handling and transporting grains, seeds, and other agricultural products.
- Advantages: customized with attachments makes it suitable for various agricultural machinery.
- Other Applications:
- Examples: Packaging lines, automotive assembly lines, and general material handling systems.
- Advantages: Versatility in customization allows hollow pin roller chains to be adapted to a wide range of conveyor and handling needs.

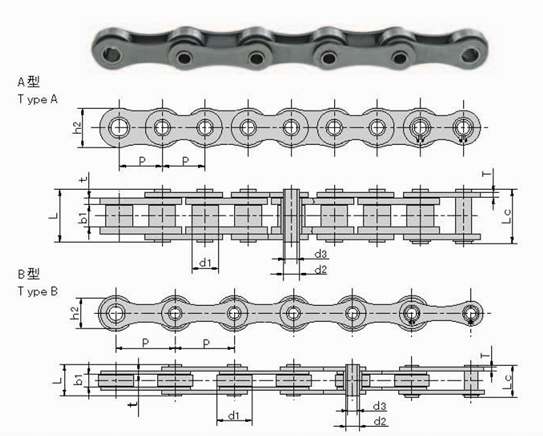

HB series hollow pin chains Diameter Data
| Chain No. | Pitch | Bush diameter | Width between inner plate | Pin diameter |
pin length | inner plate depth | Plate thickness |
Ultimate tensile strength | Average tensile strength | Weight per meter | ||
| d max | b1 mh | d2 ia | ds mh | mn | n2 max | T max |
mm | Q0 | ||||
| mm | mm | mm ____ |
mm | mm | mm | mm | mm | mm | kN/bf | kN | kgm | |
| HP12.5 | 12.500 | 8.51 | B.20 | 6.65 | 4.50 | 16.4 | 17.6 | 11.60 | 1.5/1.3 | 8.0/1819 | 8.8 | 0.61 |
| C08BHP | 12.700 | 8.51 | 7.75 | 6.55 | 4.50 | 16.4 | 17.6 | 11.80 | 1.6/1.3 | 11.0/2500 | 11.5 | 0.62 |
| C40HP | 12.700 | 7.95 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.00 | 1.50 | 11.0/2500 | 12.2 | 0.64 |
| C50H P | 15.875 | 10.16 | 940 | 7.05 | 5.15 | 20.7 | 21.9 | 15.09 | 2.03 | 20.0/4545 | 22.6 | 1.05 |
| C60HP | 19.050 | 11.91 | 12.70 | 8.31 | 6.00 | 258 | 26.8 | 18.00 | 2.42 | 24.0/5455 | 26.9 | 1.52 |
| C80HP | 25.400 | 15.88 | 15.75 | 11.40 | 8.05 | 32.5 | 33.B | 24.00 | 3.25 | 50.0/11364 | 52.0 | 2.63 |
| C2040HP | 25.400 | 7.95 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.00 | 1.50 | 11.0/2500 | 12.6 | 0.46 |
| C2040H PF1 | 25.400 | 7.95 | 7.85 | 5.63 | M4 | 16.5 | 17.6 | 12.00 | 1.50 | 9.0/2045 | 9.9 | 0.44 |
| C2050HP | 51.750 | 10.16 | 940 | 722 | 5.12 | 20.5 | 218 | 15.00 | 2.03 | 20.4/4636 | 22.8 | 0.76 |
| C2060HP | 38.100 | 11.91 | 12.70 | 8.31 | 6.00 | 258 | 26.8 | 17.00 | 2.42 | 24.0/5455 | 27.1 | 1.02 |
C2060H-HP |
38.100 | 11.91 | 12.70 | 8.31 | 600 | 292 | 30.2 | 17.00 | 3.25 | 24.0/5455 | 27.1 | 1.29 |
| HB38.1F8 | 38.100 | 10.16 | 965 | 7.10 | 5.40 | 20.4 | – | 16.00 | 2.03 | 13.0/2954 | 14.5 | 0.67 |
| HP40F1 | 40.000 | 18.00 | 22.00 | 12.00 | 8.00 | 47.5 | 48.2 | 55.00 | 5.00 | 57.0/13049 | 63.8 | 5.38 |
| HP40F 2 | 40.000 | 18.00 | 22.00 | 12.00 | 8.20 | 47.5 | 48.2 | 35.00 | 5.00 | 57.0/13049 | 63.0 | 5.37 |
| HP50F1 | 50.000 | 26.00 | 14.50 | 20.00 | 14.70 | 553 | 36.2 | 40.00 | 3.10 | 50.0/6818 | 33.6 | 3.98 |
| HP50F7 | 50.000 | 18.00 | 15.00 | 14.00 | 10.20 | 360 | 37.5 | 26.00 | 4.00 | 40.0/9091 | 43.2 | 2.56 |
| HP50F10 | 50.000 | 18.00 | 22.00 | 12.10 | 8.30 | 39.5 | 40.6 | 30.00 | 3.00 | 45.0/10227 | 48.0 | 2.73 |
| C2080HP | 50.800 | 15.88 | 15.75 | 11.40 | 8.05 | 32.5 | 33.8 | 24.00 | 3.25 | 50.0/11364 | 52.0 | 1.81 |
| HB55 | 55.000 | 18.00 | 22.00 | 14.00 | 10.00 | 43.4 | 44.5 | 30.00 | 4.00 | 50.0/11364 | 52.0 | 331 |
| HB55F1 | 55.000 | 24.00 | 24.00 | 17.00 | 12.00 | 52.0 | 53.5 | 40.00 | 5.00 | 90.0/20455 | 100.0 | 6.34 |
