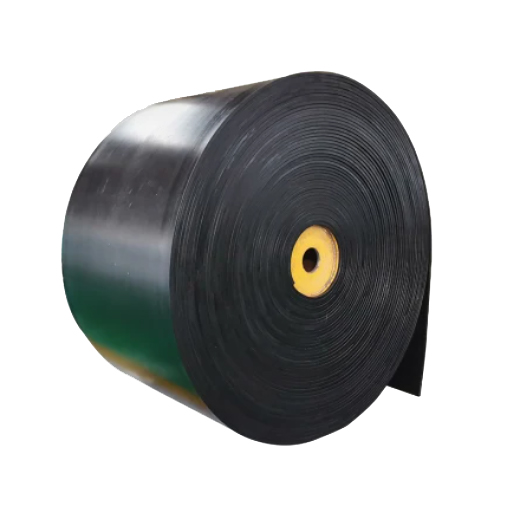

Heat resistant conveyor belt
Heat resistant conveyor belt
Characteristics
CharacteristicsAdopting cotton canvas and polyester canvas as framework materials of the belt(Heat resistant conveyor belt) core and butadiene styrene rubber or butyl chloride rubber with excellent heat resistance as cover rubber or buffer rubber.

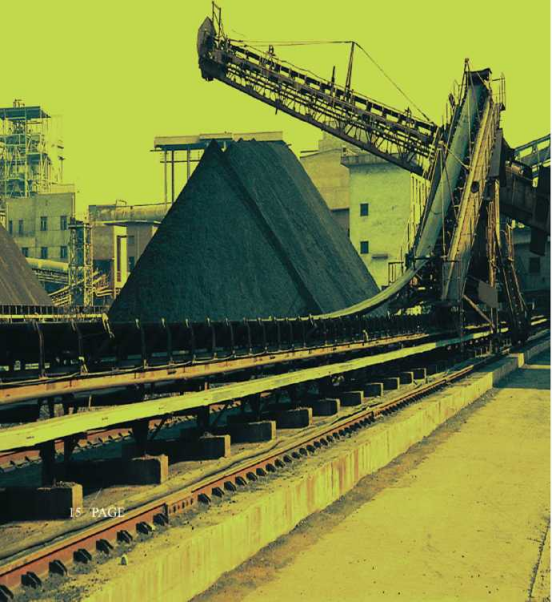

The product can be normally used at a temperature below 120℃, can convey materials which have a temperature below 120℃ and is widely applicable to such industries as cement, coking, metallurgy, iron and steel, etc.
Specification the same as common conveyor belt Heat-resistance conveyor belt can be classified into three models:
- Model I: Capable of resisting experimental temperature no more than 100 °C, in code of T1.
- Model II : Capable of resisting experimental temperature no more than 125 °C, in code of T2.
- Model III : Capable of resisting experimental temperature no more than 150 °C, in code of T3.
- Model IV ： Capable of resisting experimental temperature no more than 175 °C, in code of T4.
The physical performance of cover rubber after heat resistant test comform to the specification in the table
| Index | Model | ||||
| Model I | Model I Model III Model IV | ||||
| (variation range) | |||||
| Hardness | Difference after and before aging （（(IRHD) | 20 | ±20 | ±20 | |
| Maxmum after aging (IRHD) | 85 | ||||
| Tensile
strength |
Decrease of performance variance rate% ≤ | -25 | -30 | -40 | -40 |
| Maxmum after aging Mpa | 12 | 10 | 5 | 5 | |
| Elongation at break | Performance variance rate% | -50 | -55 | -55 | |
| Maxmum after aging% | 200 | 180 | 180 | ||
Adhesion of inter layer
| Index | Between fabric layers | Between cover layer and belt core | |
| Cover layer thickness 0.8-1.5mm | Cover layer thickness > 1.5mm | ||
| Average of all test samples, N/mm, no less than | 3.0 | 2.2 | 2.6 |
| The lowest data of all test samples, N/mm, no less than | 2.0 | 1.6 | 2.0 |
