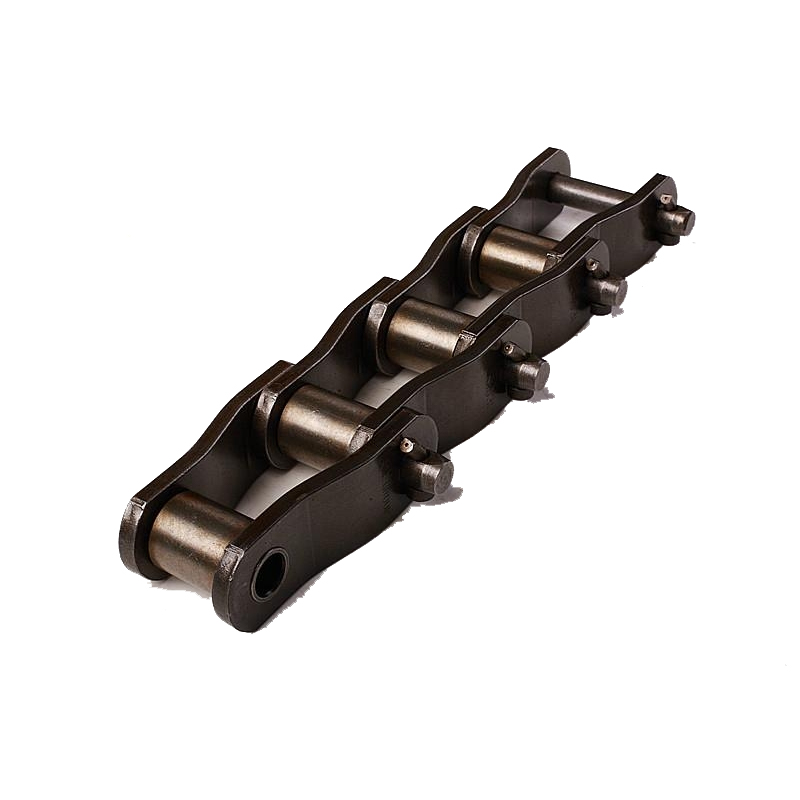

heavy duty cranked-link transmission chain
Heavy-duty cranked-link chain is famous for its high accuracy, resistance to wear and fatigue durability. Its specific cranked-link joint structure is more suitable for the work environment with larger impact load and frequently changed intermittence.
heavy duty cranked-link transmission chain
Heavy duty cranked-link chain offered by us are manufactured from high quality special heat treated steel alloys. Durable in quality, these heavy duty cranked link chains have long service life. These chains are offered with the facility of length tolerances and lateral clearances that helps it to operate over flame cut or cast tooth sprockets.

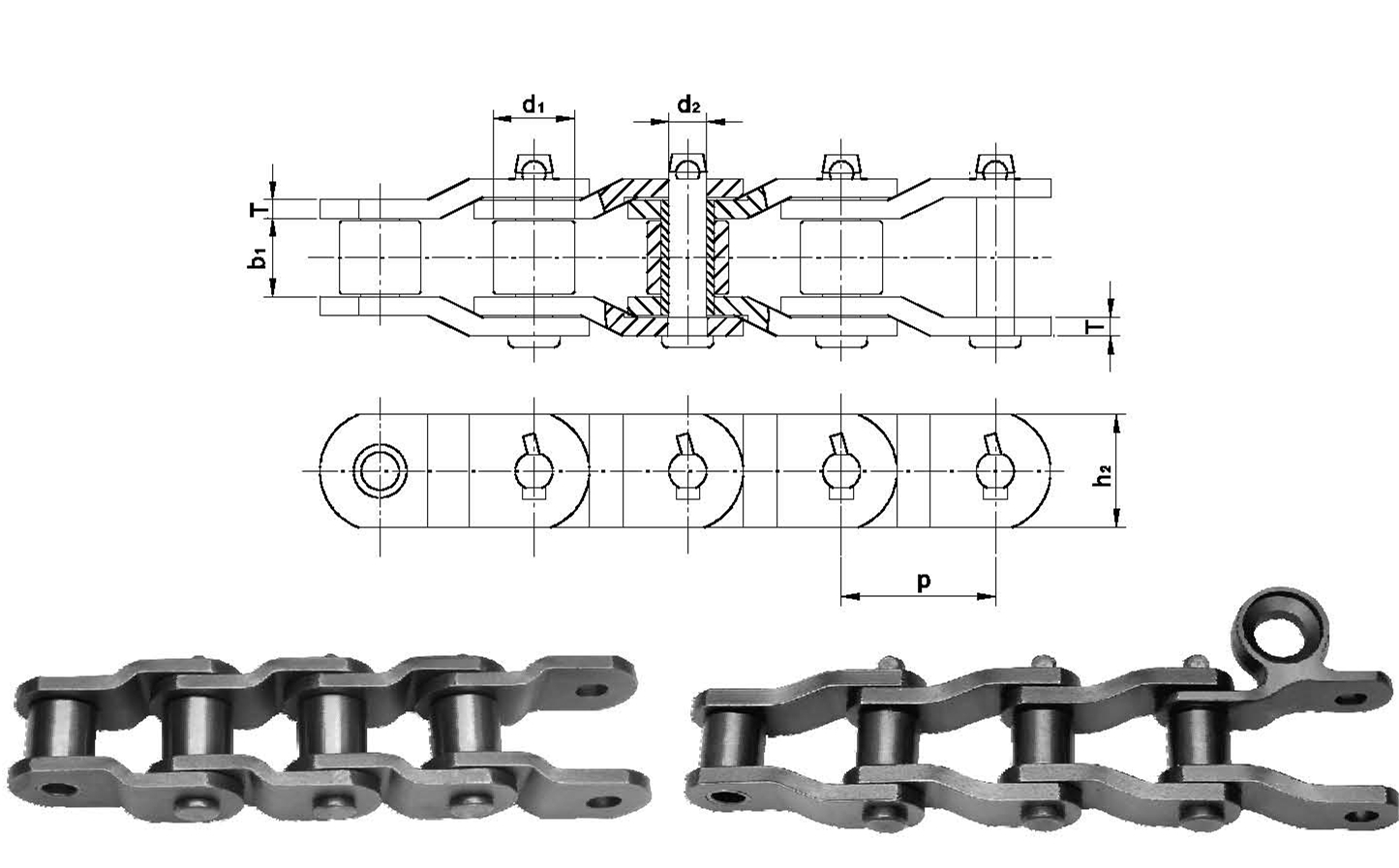

Dimensional parameters
| CHAIN NO. | PITCH | ROLLER DIAMETER | WIDTH BETWEEN INNER PLATES | PIN DIAMETER | PIN LENGTH | INNER PLATE DEPTH | CHAIN PLATE THICKNESS | TEST FORCE | ULTIMATE TENSILE STRENGTH | WEIGHT PER METER |
| P | D1 MAX | B1 MIN | D2 MAX | L MAX | H2 MAX | T MAX | Q MIN | Q | ||
| MM | MM | MM | MM | MM | MM | MM | N | KN | KG/M | |
| 2010 | 63.5 | 31.75 | 38.1 | 15.9 | 90.7 | 47.8 | 7.9 | 900 | 250 | 14 |
| 2512 | 77.9 | 41.28 | 39.6 | 19.08 | 100 | 60.5 | 9.7 | 1300 | 340 | 18.4 |
| 2814 | 88.9 | 44.45 | 38.1 | 22.25 | 117.6 | 60.5 | 12.7 | 1800 | 470 | 25.1 |
| 3315 | 103.45 | 45.24 | 49.3 | 23.85 | 134.9 | 63.5 | 14.2 | 2200 | 550 | 27.3 |
| 3618 | 114.3 | 57.15 | 52.3 | 27.97 | 141.2 | 79.2 | 14.2 | 2700 | 760 | 38.2 |
| 4020 | 127 | 63.5 | 69.9 | 31.78 | 168.1 | 91.9 | 15.7 | 3600 | 990 | 52.1 |
