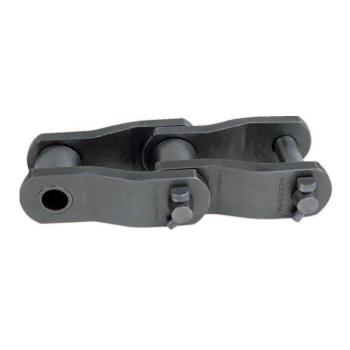

Heavy Duty Cranked-link Transmission Chains
Heavy duty cranked-link transmission chains are renowned for their high precision, wear resistance, and fatigue strength. They are ideal for transmission under heavy loads and adverse working conditions. Moreover, they are easy to repair and lengthen, making them suitable for a variety of industrial applications. They are commonly used in mining and metallurgical industries. These chains also feature a crank link design for ease of maintenance and repair.
Heavy Duty Cranked-link Transmission Chains
Heavy duty cranked-link transmission chains are renowned for their high precision, wear resistance, and fatigue strength. They are ideal for transmission under heavy loads and adverse working conditions. Moreover, they are easy to repair and lengthen, making them suitable for a variety of industrial applications. They are commonly used in mining and metallurgical industries. These chains also feature a crank link design for ease of maintenance and repair.
Heavy-Duty Cranked-Link Transmission Chains Parameters
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | d1 max |
b1 min |
d2 max |
L max |
h2 | T | Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| MXS432 | 42.01 | 22.23 | 25.40 | 11.10 | 57.9 | 28.50 | 4.8 | 80.80/18363 | 88.0 | 5.65 |
| R3112 | 50.80 | 28.70 | 31.00 | 14.20 | 73.9 | 41.40 | 6.4 | 168.90/38385 | 185.0 | 10.70 |
| R3112F1 | 50.80 | 28.70 | 31.00 | 15.06 | 79.5 | 41.40 | 7.9 | 195.60/18363 | 225.0 | 12.23 |
| SS2065 | 50.80 | 28.58 | 32.50 | 15.05 | 79.5 | 38.00 | 7.9 | 220.00/49998 | 242.0 | 12.14 |
| 2010 | 63.50 | 31.75 | 38.10 | 15.90 | 89.0 | 47.80 | 7.9 | 250.00/56818 | 275.0 | 13.53 |
| 2010H | 63.50 | 31.75 | 31.75 | 15.88 | 97.0 | 41.50 | 9.5 | 250.00/56818 | 275.0 | 11.91 |
| 2010SH | 63.50 | 31.75 | 38.10 | 15.88 | 97.0 | 41.50 | 9.5 | 300.00/68181 | 330.0 | 12.00 |
| *SS588F4 | 66.27 | 22.23 | 30.40 | 11.11 | 60.0 | 32.00 | 4.8 | 90.00/20454 | 103.0 | 5.05 |
| MXS882 | 66.27 | 22.23 | 28.58 | 11.10 | 68.5 | 28.50 | 6.4 | 115.60/26272 | 124.8 | 5.30 |
| SS588 | 66.27 | 22.23 | 28.60 | 11.11 | 63.7 | 28.60 | 6.4 | 130.00/29545 | 144.0 | 5.46 |
| SS588F1 | 66.27 | 22.23 | 27.00 | 11.11 | 62.0 | 28.60 | 6.4 | 88.90/20205 | 97.8 | 5.39 |
| SS588F2 | 66.27 | 22.23 | 27.00 | 9.53 | 59.0 | 25.40 | 5.6 | 84.46/19195 | 91.2 | 4.26 |
| *MX603 | 76.20 | 22.50 | 38.00 | 14.00 | 88.0 | 40.00 | 8.0 | 147.00/33408 | 161.0 | 9.20 |
| *MXS3011F1 | 77.90 | 31.75 | 39.60 | 19.05 | 100.0 | 57.00 | 9.7 | 407.50/18363 | 468.0 | 17.68 |
| 2512(MXS3011) | 77.90 | 41.28 | 39.60 | 19.05 | 100.0 | 57.00 | 9.7 | 340.00/77272 | 367.2 | 18.40 |
| 2512F2 | 77.90 | 41.28 | 38.50 | 19.05 | 103.4 | 60.00 | 10.0 | 400.00/90909 | 420.0 | 20.28 |
| 2512F3 | 77.90 | 41.28 | 40.00 | 18.60 | 104.2 | 46.70 | 11.0 | 340.00/77271 | 391.0 | 18.15 |
| 2512F4 | 77.90 | 41.28 | 39.60 | 19.05 | 110.0 | 60.00 | 12.0 | 407.50/92612 | 468.0 | 23.60 |
| SS568H | 77.90 | 41.30 | 39.70 | 19.05 | 97.6 | 57.00 | 9.5 | 340.00/77272 | 367.2 | 19.80 |
| SS568HF2 | 77.90 | 31.75 | 39.70 | 19.05 | 98.5 | 57.00 | 9.5 | 447.00/101588 | 491.0 | 16.90 |
*Bush chain: d1 in the table indicates the external diameter of the bush.
Heavy duty cranked-link transmission chains
|
Chain No. |
Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | d1 max |
b1 min |
d2 max |
L max |
h2 | T | Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| SS568HF3 | 77.90 | 41.30 | 39.70 | 19.05 | 104.1 | 57.00 | 11.0 | 489.3/111203 | 562.0 | 20.85 |
| 2510 | 78.10 | 31.75 | 36.90 | 16.00 | 94.8 | 40.00 | 8.0 | 271.0/61590 | 292.6 | 10.72 |
| 2510F1 | 78.10 | 31.75 | 36.60 | 16.00 | 88.9 | 38.10 | 8.0 | 124.5/28295 | 137.0 | 9.93 |
| 2510F1-CF1 | 78.10 | 31.75 | 36.60 | 16.00 | 88.9 | 38.10 | 8.0 | 124.5/28295 | 137.0 | 10.00 |
| 2510F2 | 78.10 | 31.75 | 36.60 | 15.75 | 88.0 | 38.10 | 8.0 | 225.0/51135 | 248.0 | 11.70 |
| 2510H | 78.10 | 31.75 | 36.90 | 16.50 | 95.3 | 45.00 | 9.5 | 280.4/63727 | 302.8 | 12.70 |
| MXS3075 | 78.10 | 31.75 | 38.10 | 16.46 | 93.5 | 44.50 | 9.7 | 334.0/75907 | 365.8 | 13.45 |
| MXS3075F1 | 78.10 | 33.00 | 38.10 | 16.46 | 94.5 | 44.50 | 9.7 | 334.0/75907 | 365.8 | 14.00 |
| MXS3075F1SH | 78.10 | 33.00 | 38.10 | 16.46 | 94.5 | 44.45 | 9.7 | 360.0/81817 | 414.0 | 13.96 |
| MXS3075F2 | 78.10 | 31.75 | 38.10 | 17.81 | 90.0 | 45.00 | 8.0 | 333.2/75726 | 365.8 | 12.20 |
| MXS3075F3 | 78.10 | 33.30 | 38.10 | 16.46 | 94.5 | 44.50 | 9.7 | 334.0/75908 | 384.0 | 14.00 |
| MXS3075F4 | 78.10 | 33.30 | 38.10 | 17.15 | 94.5 | 44.50 | 9.7 | 360.0/81817 | 414.0 | 14.00 |
| SS40H(P) | 78.11 | 31.75 | 38.10 | 15.88 | 97.0 | 41.50 | 9.5 | 250.0/56818 | 280.0 | 12.60 |
| 3125 | 79.37 | 41.27 | 39.70 | 20.32 | 101.6 | 57.20 | 9.5 | 347.1/78885 | 400.0 | 20.10 |
| 3125F1 | 79.37 | 41.27 | 39.70 | 20.32 | 101.6 | 57.20 | 9.5 | 374.0/84998 | 430.0 | 20.10 |
| 3125F2 | 79.37 | 41.27 | 41.30 | 20.32 | 105.0 | 57.20 | 9.5 | 481.2/109362 | 529.0 | 20.44 |
| 3125HF1 | 79.37 | 43.00 | 41.00 | 22.23 | 108.0 | 57.20 | 11.0 | 400.0/90908 | 500.0 | 23.25 |
| 2814 | 88.90 | 44.45 | 36.60 | 22.23 | 117.6 | 58.00 | 12.7 | 471.0/105955 | 507.6 | 25.70 |
| 2814F1 | 88.90 | 44.45 | 36.90 | 22.23 | 117.6 | 60.00 | 13.5 | 556.0/126358 | 611.0 | 24.20 |
| 2814F2 | 88.90 | 44.45 | 38.60 | 22.23 | 119.6 | 58.00 | 12.7 | 559.0/127040 | 614.9 | 25.40 |
Specifications
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | d1 max |
b1 min |
d2 max |
L max |
h2 | T | Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| RO1644F1 | 96.000 | 44.80 | 39.00 | 23.80 | 119.00 | 60.00 | 14.0 | 530.0/120453 | 609.0 | 27.45 |
| *MX604 | 101.600 | 25.00 | 57.00 | 16.00 | 117.00 | 50.00 | 10.0 | 227.0/51590 | 261.0 | 13.63 |
| SB1254 | 103.124 | 45.21 | 30.48 | 23.81 | 107.95 | 57.15 | 12.7 | 400.0/90908 | 460.0 | 22.67 |
| 3214 | 103.200 | 44.45 | 48.00 | 22.00 | 123.50 | 55.00 | 13.0 | 476.0/108180 | 514.0 | 23.60 |
| 3214F1 | 103.200 | 44.45 | 49.20 | 23.90 | 129.00 | 60.00 | 14.0 | 666.4/151450 | 700.0 | 26.70 |
| 3214F2 | 103.200 | 44.45 | 39.70 | 19.05 | 97.60 | 57.20 | 9.5 | 456.0/103635 | 500.0 | 17.67 |
| 3214F3 | 103.200 | 46.00 | 49.20 | 23.90 | 123.50 | 60.00 | 13.0 | 539.0/122498 | 619.0 | 26.16 |
| MXS1242 | 103.200 | 44.45 | 49.20 | 22.23 | 124.50 | 57.00 | 12.8 | 623.0/141591 | 672.8 | 24.63 |
| MXS1242F1 | 103.200 | 44.45 | 55.00 | 22.23 | 128.80 | 57.00 | 12.8 | 623.0/141589 | 716.0 | 24.16 |
| SS124 | 103.200 | 44.45 | 49.20 | 22.23 | 127.20 | 57.00 | 12.7 | 560.0/127272 | 590.0 | 22.57 |
| 3315 | 103.450 | 45.24 | 49.30 | 23.85 | 130.00 | 63.50 | 14.2 | 550.0/125000 | 594.0 | 27.71 |
| 3315F1 | 103.450 | 45.24 | 47.60 | 23.85 | 134.00 | 60.00 | 15.0 | 650.0/147725 | 747.0 | 27.34 |
| 3315F2 | 103.450 | 50.00 | 49.30 | 25.00 | 142.50 | 63.50 | 16.0 | 620.0/140907 | 713.0 | 32.50 |
| SH1245 | 103.450 | 45.30 | 49.60 | 23.80 | 130.00 | 60.00 | 14.5 | 722.0/164084 | 794.0 | 31.00 |
| SS1245 | 103.450 | 45.20 | 49.60 | 23.80 | 129.40 | 60.00 | 14.5 | 550.0/125000 | 605.0 | 31.19 |
| SS1245F1 | 103.450 | 45.20 | 49.60 | 25.60 | 132.30 | 60.00 | 14.5 | 530.0/120453 | 609.0 | 28.53 |
| SS1245F2 | 103.450 | 46.20 | 52.00 | 23.80 | 139.20 | 60.00 | 16.0 | 530.0/120453 | 609.0 | 31.15 |
| 3618 | 114.300 | 57.15 | 52.30 | 27.97 | 138.00 | 79.20 | 14.2 | 760.0/172727 | 820.8 | 41.20 |
| SS635H | 114.300 | 57.20 | 52.40 | 27.94 | 137.00 | 76.20 | 14.5 | 760.0/172727 | 836.0 | 37.80 |
| SS635HF1 | 114.300 | 57.20 | 52.40 | 27.94 | 137.00 | 76.20 | 17.5 | 964.0/219085 | 1060.0 | 37.90 |
*Bush chain: d1 in the table indicates the external diameter of the bush.
Details
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | d1 max |
b1 min |
d2 max |
L max |
h2 | T | Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| SS635HF2 | 114.300 | 57.20 | 52.40 | 27.94 | 137.0 | 76.20 | 7.5 | 964.0/219088 | 1108.0 | 37.90 |
| 4020 | 127.000 | 63.50 | 69.90 | 31.78 | 165.7 | 88.90 | 15.7 | 987.0/224300 | 1069.2 | 48.60 |
| 4020F1 | 127.000 | 63.50 | 68.30 | 31.78 | 168.1 | 90.00 | 17.0 | 1100.0/249997 | 1265.0 | 50.60 |
| 4020F2 | 127.000 | 69.85 | 68.30 | 35.05 | 173.0 | 95.25 | 19.0 | 1100.0/249997 | 1265.0 | 59.08 |
| 4020F3 | 127.000 | 63.50 | 69.90 | 34.93 | 176.0 | 91.00 | 19.0 | 1410.0/320450 | 1551.0 | 58.40 |
| 4020HF1 | 127.000 | 63.50 | 69.90 | 34.93 | 176.0 | 88.90 | 19.0 | 1300.0/295451 | 1495.0 | 54.50 |
| 4020HF2 | 127.000 | 63.50 | 65.02 | 34.93 | 171.0 | 88.90 | 19.0 | 1300.0/295451 | 1430.0 | 38.58 |
| 4020SHF1 | 127.000 | 63.50 | 69.90 | 31.78 | 165.7 | 88.90 | 15.7 | 1333.0/302905 | 1532.0 | 48.60 |
| RO1205 | 127.000 | 63.50 | 65.00 | 31.75 | 147.6 | 82.50 | 14.2 | 872.0/198177 | 955.0 | 42.93 |
| 2184 | 152.400 | 76.20 | 35.00 | 22.20 | 96.0 | 51.00 | 9.5 | 330.0/75000 | 378.0 | 18.17 |
| 4824 | 152.400 | 76.20 | 74.60 | 38.10 | 186.0 | 100.00 | 20.0 | 1600.0/363632 | 1700.0 | 69.80 |
| 6060 | 152.400 | 88.90 | 101.00 | 47.63 | 228.7 | 114.30 | 22.0 | 1700.0/386359 | 1955.0 | 97.59 |
| DH6042F1 | 152.400 | 76.35 | 76.30 | 38.05 | 188.0 | 101.60 | 19.0 | 1400.0/318178 | 1610.0 | 58.36 |
| RO6042F1 | 152.400 | 76.20 | 76.30 | 44.00 | 184.0 | 120.00 | 19.0 | 1500.0/340900 | 1600.0 | 63.60 |
| P153 | 153.619 | 34.93 | 53.98 | 17.48 | 107.0 | 44.50 | 9.5 | 150.0/34090 | 165.0 | 10.90 |
| P153F1 | 153.619 | 34.93 | 53.98 | 17.48 | 100.0 | 44.50 | 8.0 | 150.0/34090 | 165.0 | 9.74 |
| P153F2 | 153.619 | 34.93 | 53.98 | 17.48 | 100.0 | 44.50 | 8.0 | 150.0/34090 | 165.0 | 9.80 |
| 5628 | 177.800 | 88.90 | 82.60 | 44.45 | 210.0 | 133.00 | 22.0 | 1890.0/429540 | 2173.0 | 99.50 |
| 5628F1 | 177.800 | 88.90 | 82.60 | 44.45 | 210.0 | 127.00 | 22.0 | 2224.0/505448 | 2557.0 | 96.80 |
Heavy-Duty Cranked-Link Transmission Chains Advantages
The advantages of Heavy Duty Cranked-Link Transmission Chains are their extreme wear resistance, high accuracy, fatigue resistance, and specific cranked-link joint structure. It is an ideal choice for work environments involving heavy impact load and frequent change-overs. This kind of drive chain is commonly used in large machines, mining, and metallurgical industries. They are typically packaged in plywood cases or custom carton boxes.
Offset links, also known as 1/2 links, are typically used when the chain has an odd number of pitches. They are also typically used to shorten the chain by one pitch. Offset links come in single and double-pitch configurations. The single-pitch offset link is furnished with a slip-fit pin that fits into the linkplate. The offset link is not recommended for performance-oriented drives.
Heavy-duty cranked-link transmission chains are made from high-grade alloy steels with hardened round parts. They are designed to withstand heavy loads and adverse conditions. In addition, their low-wear design and cranked-link structure make them suitable for large-impact transmission. Side bow roller chains are commonly used in mining, metallurgical, and engineering machinery industries. They are easy to lengthen and can be repaired easily.
Sprockets For Chains
There are many different types of sprockets for chains. Some are making of stainless steel, while others are making of non-stainless steel. Stainless steel sprockets are ideal for harsh environments and are usually 304-grade stainless steel. You can also find 316-grade stainless steel sprockets, which are ideal for extreme corrosive conditions. In addition to standard sizes, you can also find idler sprockets with a ball bearing pressed in.
There are two standards for sprockets: ISO and metric. ISO sprockets are working in most American, European, and Asian machines. In the United States, ISO sprockets are according to stringent standards, while metric sprockets are more flexible and interchangeable with European-style chains. For the most part, sprockets are interchangeable, although there is still a small number of exceptions to this rule.
The most common type of sprockets are making from metal or reinforced plastic. These devices are closely related to gears, and their wheel-shaped design with teeth allows them to span greater distances than their mating gears. Most sprocket and chain systems are similar to bicycle chain assemblies.
To choose sprockets for chains, it’s essential to get the size and pitch of the chain. Depending on your requirements, you may want to select one that has wide teeth or a sprocket with small teeth. In addition to pitch, you should also consider the size of the drive shaft. For example, if the chain is large, you will need a sprocket that is wide. For smaller chains, you’ll need a sprocket with smaller teeth. Likewise, you should consider the sprocket bore.
