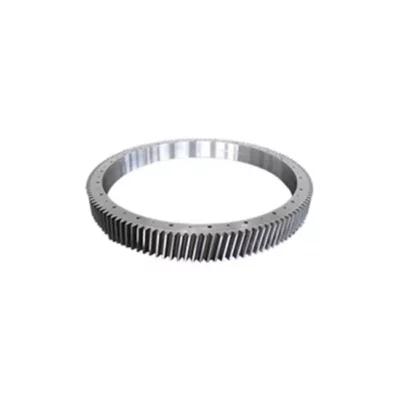

Helical angle 7 Internal Helical Ring Gear Gear/Spline Capability
Internal gears and internal splines(Helical angle 7 Internal Helical Ring Gear)
|
|||
Teeth Milling
|
Teeth Shaping
|
Teeth grinding
|
|
Maximum O.D.
|
2500mm
|
2500mm
|
2500mm
|
Minimum I.D.
|
650mm
|
50mm
|
100mm
|
Maximum Face Width
|
500mm
|
500mm
|
500mm
|
Maximum Diametral Pitch
|
DP1
|
DP1
|
DP0.5
|
Maximum Module
|
26mm
|
26mm
|
45mm
|
AGMA Grade / DIN Grade
|
DIN grade 8
|
DIN grade 8
|
DIN grade 4
|
Tooth Finish
|
Ra 3.2
|
Ra 3.2
|
Ra 0.6
|
Maximum Helix Angle
|
±22.5°
|
±22.5°
|
±45°
|
External gears and external splines
|
|||
Maximum O.D.
|
1250mm
|
2500mm
|
2500mm
|
Minimum I.D.
|
20mm
|
200mm
|
20mm
|
Maximum Face Width
|
500mm
|
500mm
|
1480mm
|
Maximum Diametral Pitch
|
DP 1
|
DP 1
|
DP 0.5
|
Maximum Module
|
26 mm
|
26 mm
|
45 mm
|
AGMA Grade / DIN Grade
|
DIN grade 8
|
DIN grade 8
|
DIN grade 4
|
Tooth Finish
|
Ra 3.2
|
Ra 3.2
|
Ra 0.6
|
Maximum Helix Angle
|
±45°
|
±45°
|
±45°
|
