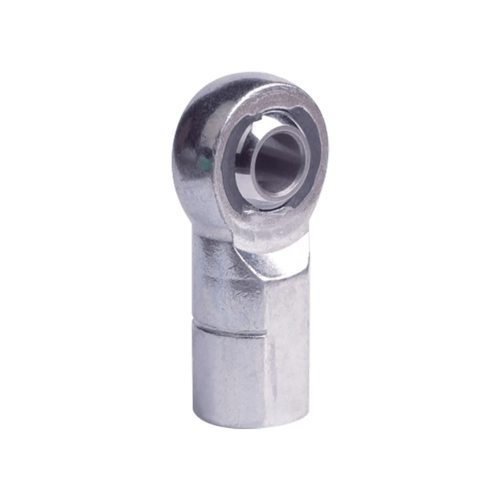

High Loaded Injection Rod Ends PMXF
High Loaded Injection Rod Ends PMXF
 |
Rod Ends PMXF Material and surface treatments:
– Body: alloy steel 35CrMo with heat treating. Alternative stainless steel with surface passivation. – Steel ball: bearing steel GCr15 with hard chrome plating. Alternative stainless steel 440C. – Race: nylon. – For left-hand thread, please add suffix “L”，e.g.PMXFL 8. |

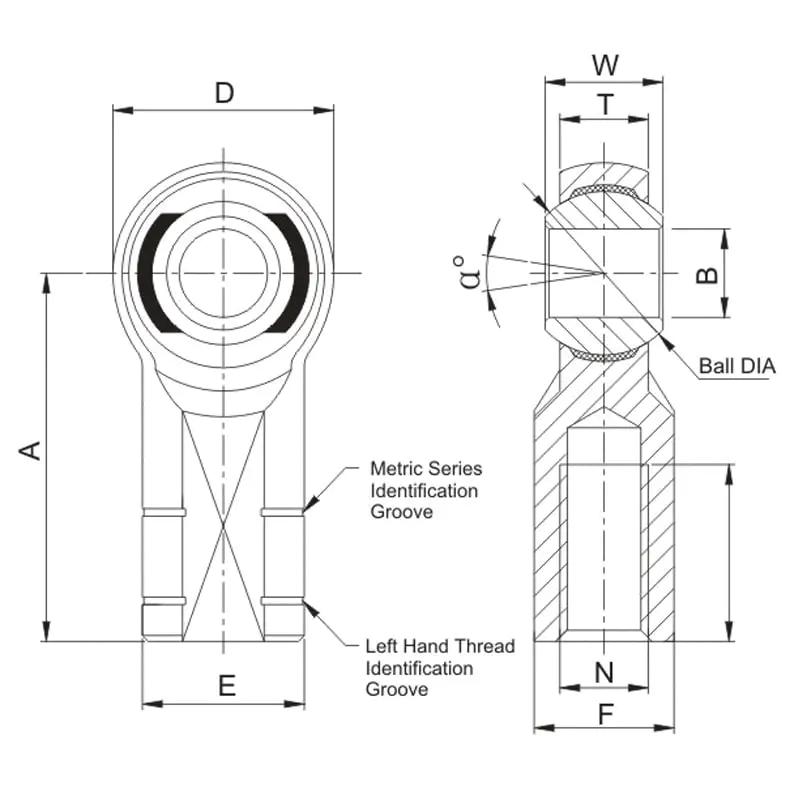

| Part No. | Dimensions | Weight | ||||||||||
| N
Thread 6H |
A
±0.4 |
D
±0.25 |
E
±0.25 |
C
+1.50 -0.75 |
F
+0.05 -0.25 |
T
±0.12 |
W
±0.12 |
B
+0.065 -0.012 |
a°
Misalign ANGLE |
Ball DIA
REF |
Kg
≈ |
|
| PMXF5 | M5x0.8 | 27.00 | 16.00 | 11.00 | 14.00 | 9.00 | 6.25 | 8.00 | 5.00 | 14° | 11.10 | 0.019 |
| PMXF6 | M6X1.0 | 30.00 | 19.00 | 13.00 | 14.00 | 11.00 | 7.00 | 9.00 | 6.00 | 13° | 12.70 | 0.029 |
| PMXF8 | M8x1.25 | 36.00 | 22.25 | 16.00 | 17.00 | 14.00 | 8.75 | 12.00 | 8.00 | 18° | 15.88 | 0.051 |
| PMXF10 | M10x1.5 | 43.00 | 27.00 | 19.00 | 21.00 | 17.00 | 10.50 | 14.00 | 10.00 | 17° | 19.05 | 0.086 |
| PMXF12 | M12x1.75 | 50.00 | 30.00 | 22.00 | 24.00 | 19.00 | 12.00 | 16.00 | 12.00 | 17° | 22.23 | 0.124 |
| PMXF14 | M14x2.0 | 57.00 | 34.75 | 25.00 | 27.00 | 22.00 | 13.50 | 19.00 | 14.00 | 21° | 25.40 | 0.184 |
| PMXF16 | M16x2.0 | 64.00 | 38.00 | 27.00 | 33.00 | 22.00 | 14.25 | 21.00 | 16.00 | 23° | 28.58 | 0.223 |
| PMXF20 | M20x1.5 | 77.00 | 46.00 | 34.00 | 40.00 | 30.00 | 18.00 | 25.00 | 20.00 | 20° | 34.93 | 0.436 |
