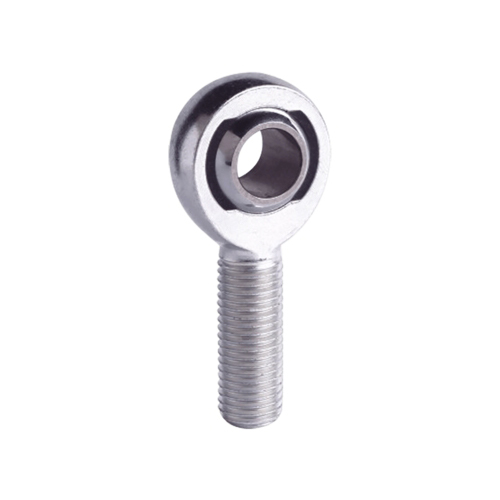

High Loaded Injection Rod Ends PMXM
High Loaded Injection Rod Ends PMXM
 |
Injection Rod Ends PMXM Material and surface treatments:
1.- Body: alloy steel 35CrMo with heat treating. Alternative stainless steel with surface passivation. 2.- Steel ball: bearing steel GCr15 with hard chrome plating. Alternative stainless steel 440C. 3.- Race: nylon. 4.- For left-hand thread, please add suffix“L” , e.g.PMXML 8. |

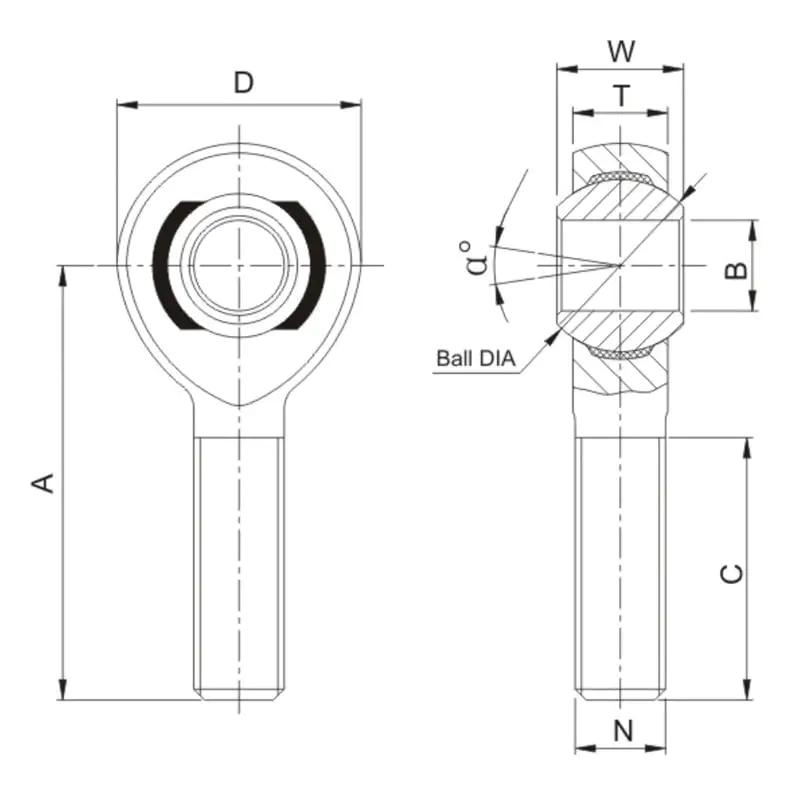

Specifications
| Part No. | Dimensions | Weight | ||||||||
| N
Thread 6g |
A
±0.4 |
D
±0.25 |
C
+ 1.50 -075 |
T
±0.12 |
W
±0.12 |
B
+0.065 -0.012 |
a°
Misalign ANGLE |
Ball DIA
REF |
Kg≈ | |
| PMXM5 | M5x0.8 | 33.00 | 16.00 | 20.00 | 6.25 | 8.00 | 5.00 | 14° | 11.10 | 0.012 |
| PMXM6 | M6x1.0 | 36.00 | 19.00 | 22.00 | 7.00 | 9.00 | 6.00 | 13° | 12.70 | 0.019 |
| PMXM8 | M8x1.25 | 42.00 | 22.25 | 25.00 | 8.75 | 12.00 | 8.00 | 18° | 15.88 | 0.034 |
| PMXM10 | M10x1.5 | 48.00 | 27.00 | 29.00 | 10.50 | 14.00 | 10.00 | 17° | 19.05 | 0.058 |
| PMXM12 | M12x1.75 | 54.00 | 30.00 | 33.00 | 12.00 | 16.00 | 12.00 | 170 | 22.23 | 0.083 |
| PMXM14 | M14x2.0 | 60.00 | 34.75 | 36.00 | 13.50 | 19.00 | 14.00 | 21° | 25.40 | 0.127 |
| PMXM16 | M16x2.0 | 66.00 | 38.00 | 40.00 | 14.25 | 21.00 | 16.00 | 23° | 28.58 | 0.170 |
| PMXM20 | M20x1.5 | 78.00 | 46.00 | 47.00 | 18.00 | 25.00 | 20.00 | 20° | 34.93 | 0.318 |
