Standard OEM HP series hollow pin chains
HP series hollow pin chains
OEM hollow pin chains
Advantages of Hollow Pin Roller Chains
- Reduced Weight: The hollow pins decrease the chain’s weight. Which can contribute to energy savings and less wear on drive components.
- Customization: The ability to add extended pins or attachments allows for flexibility in designing conveyor systems and handling solutions.
- Enhanced Performance: Suitable for applications requiring the transport of products or components, especially where customization is beneficial.

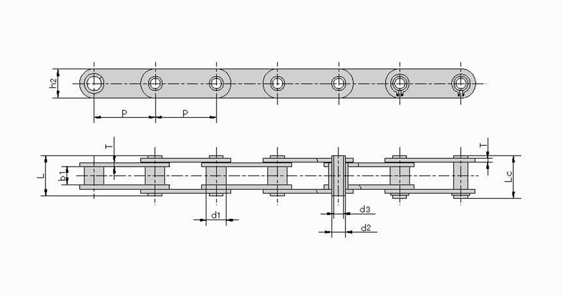

Diameter Data
| Chain No. | Pitch | Bush diameter | Width between inner plates | Pin diameter |
Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | ||
| d1 | b1 mn | d2 mak | d5 | max | h2 max | max | mm | |||||
| mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | kN | kgm | ||
| HP12.5 | 12.500 | 8.51 | 8.20 | 6.65 | 4.50 | 16.4 | 17.6 | 11.60 | 1.5/.3 | 8.0/1819 | 8.8 | 0.61 |
| C08B HP | 12.700 | 8.51 | 7.75 | 6.55 | 4.50 | 16.4 | 17.6 | 11.80 | 1.6/.3 | 11.0/2500 | 11.5 | 0.62 |
| CAOHR | 12.700 | 7.95 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.00 | 1.50 | 11.0/2500 | 12.2 | 0.64 |
| C50H P | 15.875 | 10.16 | 9.40 | 7.03 | 5.13 | 20.7 | 21.9 | 15.09 | 2.03 | 20.0/4545 | 22.6 | 1.05 |
| C60HP | 19.050 | 11.91 | 12.70 | 8.31 | 6.00 | 25.8 | 26.8 | 18.00 | 2.42 | 24.0/5455 | 26.9 | 1.52 |
| CB0H P | 25.400 | 15.88 | 15.75 | 11.40 | 8.05 | 32.5 | 338 | 24.00 | 3.25 | 50. 0/11364 | 52.0 | 2.63 |
| C2040HP | 25.400 | 7.95 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.00 | 1.50 | 11.0/2500 | 12.6 | 0.46 |
| C2040H PF1 | 25.400 | 7.95 | 7.85 | 5.63 | M4 | 16.5 | 17.6 | 12.00 | 1.50 | 9.0/2045 | 9.9 | 0.44 |
| C2050HP | 51.750 | 10.16 | 9.40 | 7.22 | 5.12 | 20.5 | 21.8 | 15.00 | 2.03 | 20.4/4636 | 22.8 | 0.76 |
C2060HP |
38.100 | 11.91 | 12.70 | 8.31 | 6.00 | 25.8 | 26.8 | 17.00 | 2.42 | 24.0/5455 | 27.1 | 1.02 |
| C2060H-HP | 38.100 | 11.91 | 12.70 | 8.31 | 6.00 | 29.2 | 30.2 | 17.00 | 3.25 | 24.0/5455 | 27.1 | 129 |
| HB58.1FB | 38.100 | 10.16 | 965 | 7.10 | 5.40 | 20.4 | 16.00 | 2.03 | 13.0/2954 | 14.3 | 067 | |
| HP40F1 | 40.000 | 18.00 | 22.00 | 12.00 | 8.00 | 47.5 | 482 | 35.00 | 5.00 | 57.0/13049 | 63.B | 538 |
| HP40F 2 | 40.000 | 18.00 | 22.00 | 12.00 | 8.20 | 47.5 | 48.2 | 35.00 | 5.00 | 57.0/13049 | 63.0 | 5.37 |
| HP50F 1 | 50.000 | 26.00 | 14.50 | 20.00 | 14.70 | 35.3 | 362 | 40.00 | 3.10 | 30.0/6818 | 33.6 | 3.98 |
| HP50F7 | 50.000 | 18.00 | 15.00 | 14.00 | 10 20 | 36.0 | 37.5 | 26.00 | 4.00 | 40.0/9091 | 43.2 | 2.56 |
| HP50F10 | 50.000 | 18.00 | 22.00 | 12.10 | 8.30 | 39.5 | 40.6 | 30.00 | 3.00 | 45.0/10227 | 48.0 | 2.73 |
| C2080HP | 50.800 | 15.88 | 15.75 | 11.40 | 8.05 | 32.5 | 33.8 | 24.00 | 3.25 | 50.0/11564 | 52.0 | 1.81 |
| HB55 | 55.000 | 18.00 | 22.00 | 14.00 | 10.00 | 43.4 | 44.5 | 30.00 | 4.00 | 50.0/11364 | 52.0 | 3.31 |
| HB55F1 | 55.000 | 24.00 | 24.00 | 17.00 | 12.00 | 52.0 | 53.5 | 40.00 | 5.00 | 90.0/20455 | 100.0 | 6.54 |
