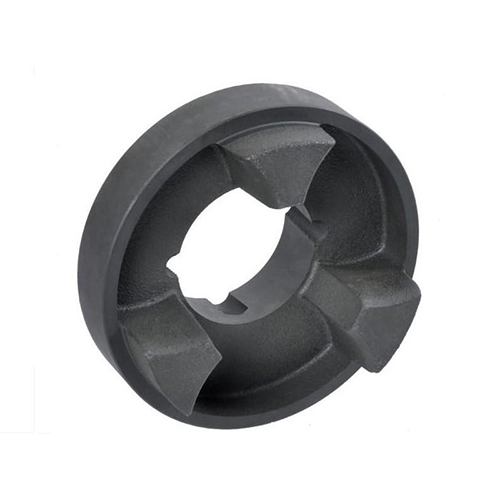

HRC coupling
HRC coupling
 |

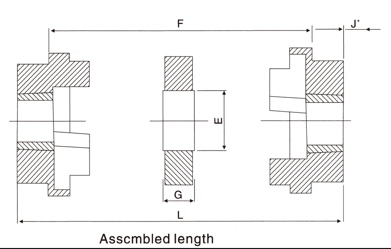

L1 is the lenglh with assembly combinalionsF.F-HH-F. L2 is the lenglh with assembly combinalions F.B-H.B. L3 is the lenglh with assembly combinalions B.B. J*Is the wrench clenrance repuired for tightening and lossening the bush on the shoft.The use of a shontcncd key will sllow this dimcnsion to bc coduccd. |
Benifits
- Straightforward Installation: Known for its simplicity, this coupling offers easy fitting facilitated by straight edge and machined outside diameters, ensuring straightforward alignment.
- Fail-Safe Design: The design includes interacting dogs, ensuring reliability and safety even under demanding conditions.
- Misalignment Tolerance: It accommodates incidental misalignment, providing flexibility during operation.
- Cost-Effective Performance: Offers exceptional performance at a competitive cost, making it a cost-efficient choice for various applications.
- Standard Motor Compatibility: Power ratings are specifically matched to standard motor sizes, ensuring compatibility and efficient operation.
- Element Varieties: Available in standard and FRAS (Fire Resistant Anti-Static) elements, catering to different environmental and safety requirements.
- Versatile Configurations: Variants include options for flywheel fixing and pilot bore designs, enhancing flexibility and adaptability to different installation needs.
Diameter Data
| Type F&H | Bored to size | |||||||||||||||||
| SIZE | BUSH | Bore
MAX MIN |
C | D | Bore
MAX MIN |
C | D | A | B | E | F | G | L1 | L2 | L3 | J4 | ||
| 70 | 1008 | 25 | 9 | 20.0 | 23.5 | 32 | 10 | 20 | 23.5 | 69 | 60 | 31 | 25 | 18 | 65 | 66.5 | 68 | 29 |
| 90 | 1108 | 28 | 9 | 19.5 | 23.5 | 42 | 10 | 26 | 30.5 | 85 | 70 | 32 | 30.5 | 22.5 | 69.5 | 76 | 82.5 | 29 |
| 110 | 1610 | 42 | 14 | 18.5 | 26.5 | 55 | 10 | 37 | 45.5 | 112 | 100 | 45 | 45 | 29 | 82 | 101 | 119 | 38 |
| 130 | 1610 | 42 | 14 | 18.5 | 26.5 | 60 | 20 | 39 | 47.5 | 130 | 105 | 50 | 53 | 35 | 89 | 118 | 146 | 38 |
| 150 | 2012 | 50 | 14 | 23.5 | 33.5 | 65 | 28 | 46 | 56.0 | 150 | 115 | 62 | 60 | 40 | 107 | 134 | 160 | 42 |
| 180 | 2517 | 60 | 16 | 34.5 | 46.5 | 80 | 28 | 58 | 70.0 | 180 | 125 | 77 | 73 | 49 | 142 | 165 | 189 | 48 |
| 230 | 3020 | 75 | 25 | 39.5 | 52.5 | 100 | 48 | 77 | 90.0 | 225 | 155 | 99 | 85.5 | 59.5 | 165 | 202 | 240 | 55 |
| 280 | 3525 | 100 | 35 | 51.0 | 66.5 | 115 | 60 | 90 | 105.5 | 175 | 206 | 119 | 105.5 | 74.5 | 208 | 247 | 286 | 67 |
