HS series conveyor chain for mine machinery
Features of Conveyor Chains for Mining Machinery
1. High Strength and Durability
- Robust Construction: Engineered to endure the extreme stresses and heavy loads typical in mining operations, ensuring reliable performance in demanding environments.
- Wear Resistance: Crafted from high-strength materials and often coated or treated to resist abrasion and impact, extending the chain’s lifespan and minimizing wear.
2. Corrosion and Temperature Resistance
- Durability in Harsh Conditions: Designed to withstand exposure to moisture, dust, and corrosive substances commonly found in mining settings, ensuring long-term durability.
- High-Temperature Tolerance: Capable of operating efficiently in high-temperature environments, such as those in processing plants, without performance degradation.
3. Low Maintenance
- Reliability: Constructed for a long service life with minimal maintenance, reducing downtime and lowering operational costs through dependable, continuous operation.
- Easy Maintenance: Features that facilitate straightforward inspection and maintenance, ensuring quick and easy adjustments and repairs.
4. Customizable Designs
- Tailored Solutions: Conveyor chains can be customized to meet specific operational needs, including adjustments in chain type, size, and material composition to suit various applications.
- Adaptability: Designed to fit different types of mining equipment and configurations, offering flexibility to accommodate a range of operational requirements.

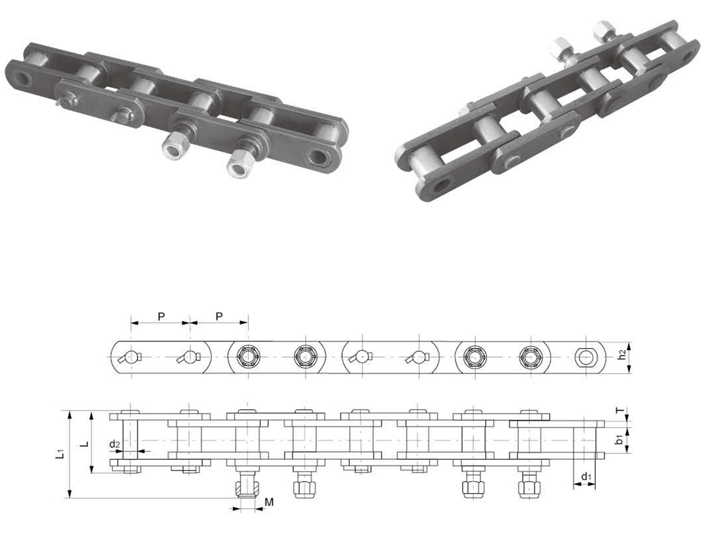

Diameter Data
| China
No. |
Pitch
P mm |
Inner Width of
Inner Link b1(min) mm |
Diameter of
Bushing d1 mm |
Pin | Extended Pin | Sidebar | Min. Tensile Strength Q(min)
KN |
|||
| d2
mm |
L
mm |
L1
mm |
M
mm |
T
mm |
h2
mm |
|||||
| HS1535-D2.6P | 78.1 | 34.75 | 31.75 | 19.05 | 90.3 | 119.6 | 3/4-10NC | 9.5 | 44.5 | 223 |
| 2162M | 78.1 | 34.98 | 31.75 | 19.05 | 90.73 | 123.7 | 3/4-10NC | 9.5 | 44.5 | 223 |
| 9835M | 88.9 | 39.8 | 44.45 | 23.85 | 117.4 | 156.5 | 14/16-14NC | 12.7 | 63.5 | 388 |
| 0111M | 120.9 | 65.6 | 36.52 | 18.95 | 126.3 | 155.8 | 5/8-11NC | 9.5 | 50.8 | 283 |
| 0110M | 152.4 | 52.83 | 31.75 | 15.75 | 107.92 | 146.0 | 5/8-11NC | 9.5 | 38.1 | 169 |
| 5225M | 57.15 | 49.53 | 28.44 | 19.05 | 107.52 | 133.02 | 5/8-11NC | 9.6 | 50.8 | 283 |
| 0146M | 152.4 | 35.1 | 38.1 | 17.33 | 93.2 | 128.05 | 5/8-11NC | 9.5 | 38.1 | 169 |
