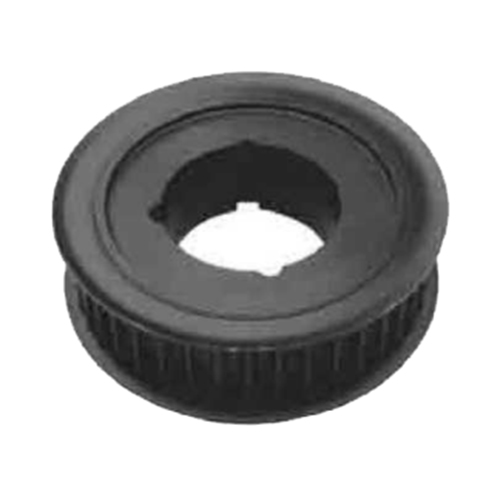

HTD taper bushes

Category: Timing pulleys

Description

HTD taper bushes

Taper Bushes(HTD)

Configuration of timing belt pulleys

HTD5M-15

Part Code	Number ofTeeth	Type	Mat	Bush Number	Dp	De	Df	Dm	Di	F	s	R	Flange Code
TL34-5M-15	34	3F		1008	54.11	52.97	57	–	–	22	22	–	20
TL36-5M-15	36	3F		1108	57.30	56.15	60	–	_	22	22	–	21
TL38-5M-15	38	3F		1108	60.48	59.34	66.5	–	–	22	22	–	24
TL40-5M-15	40	3F		1108	63.66	62.52	71	–	–	22	22	–	25
TL44-5M-15	44	3F		1108	70.03	66.89	75	–	–	22	22	–	27
TL48-5M-15	48	8F		1210	76.39	75.25	83	59	–	22	25	3	29
TL56-5M-15	56	8F	STEEL	1210	89.13	87.39	93	70	–	22	25	3	33
TL64-5M-15	64	8F		1210	101.86	100.72	106	80	–	22	25	3	38
TL72-5M-15	72	8		1610	114.59	113.45		92	–	22	25	3	–
TL80-5M-15	80	8		1610	127.32	126.18		92	–	22	25	3	–
TL90-5M-15	90	8		1610	143.24	142.10		92	–	22	25	3	–
TL112-5M-15	112	8		2012	178.25	177.11		110	–	20	32	12	–
TL136-5M-15	136	7A		2012	216.45	215.31		110	199	20	32	6	–

HTD 8M-20

Part Code	Number ofTeeth	Type	Mat	Bush Number	Dp	De	Df	Dm	Di	F	s	R	Flanges Code
TL22-8M-20	22	5F		1108	56.02	54.45	60	–	37	28	22	6	53
TL24-8M-20	24	5F		1108	61.12	59.75	66	–	44	28	22	6	69
TL26-8M-20	26	5F		1108	66.21	64.84	70	–	45	28	22	6	61
TL28-8M-20	28	5F		1108	71.30	70.08	75	–	50	28	22	6	79
TL30-8M-20	30	5F		1108	76.39	75.13	83	–	58	28	22	6	73
TL32-8M-20	32	5F		1610	81.49	80.16	87	–	63	28	25	3	76
TL34-8M-20	34	5F		1610	86.58	85.22	91	–	64	28	25	3	66
TL36-8M-20	36	5F	STEEL	1610	91.67	90.30	97	–	68	28	25	3	68
TL38-8M-20	38	5F		1610	96.77	95.39	102	–	72	28	25	3	70
TL40-8M-20	40	5F		1610	101.86	100.49	106	–	76	28	25	3	77
TL44-8M-20	44	8F		2012	112.05	110.67	120	93	–	28	32	4	75
TL48-8M-20	48	8F		2012	122.23	120.86	128	96	–	28	32	4	78
TL56-8M-20	56	8F		2012	142.60	141.23	150	110	–	28	32	4	85
TL64-8M-20	64	8WF		2012	162.97	161.60	168	110	137	28	32	4	90
TL72-8M-20	72	8WF		2012	183.35	181.97	192	110	158	28	32	4	97
TL80-8M-20	80	8W	CAST IRON	2012	203.72	202.35	–	110	180	28	32	4	–
TL90-8M-20	90	8A		2012	229.18	227.81	–	110	204	28	32	4	–
TL144-8M-20	144	8A		2517	366.69	365.32	–	125	336	28	32	4	–

HTD 8M-30

Part Code	Number ofTeeth	Type	Mat	Bush Number	Dp	Do	Df	Dm	Di	F	s	R	Flange Code
TL22-8M-30	22	5F	STEEL	1108	56.02	54.45	60	–	37	38	22	16	53
TL24-8M-30	24	5F		1108	61.12	59.75	66	–	44	38	22	16	69
TL26-8M-30	26	5F		1108	00.21	64.84	70	–	44	38	22	16	61
TL28-8M-30	28	5F		1210	71.30	70.08	75	–	SO	38	25	13	79
TL30-8M-30	30	3F		1615	76.39	75.13	83	–	–	38	38	–	73
TL32-8M-30	32	3F		1615	81.49	80.16	87	–	–	38	38	–	76
TL34-8M-30	34	3F		1615	86.58	85.22	91	–	–	38	38	–	66
TL36-8M-30	36	3F		1615	91.67	90.30	97	–	–	38	38	–	68
TL38-8M-30	38	3F		1615	96.77	95.39	102	–	–	38	38	–	70
TL40-8M-30	40	3F		1015	101.86	100.49	106	–	–	38	32	3	77
丁 L44-8M-30	44	4F		2012	112.05	110.67	120	–	86	38	32	3	75
TL48-8M-30	48	4F		2012	122.23	120.86	128	–	90	38	32	3	78
TL56-8M-30	56	4F		2012	142.60	141.23	150	–	110	38	45	7	85
TL64-8M-30	64	8F		2517	162.97	161.60	168	125	–	38	45	7	90
TL72-8M-30	72	8WF		2517	183.35	181.97	192	125	158	38	45	7	97
TL80-8M-30	60	8W	CAST IRON	2517	203.72	202.35	–	125	180	38	45	7	–
TL90-8M-30	90	8A		2517	229.18	227.81	–	125	204	38	45	7	–
TL112-8M-30	112	8A		2517	285.21	283.83	–	125	254	38	45	7	–
TL144-8M-30	144	8A		2517	366.69	365.32	–	125	336	38	45	7	–

HTD 8M-50

Part Code	Number ofTeeth	Type	Mat	Bush Number	Dp	De	Df	Dm	Di	F	s	R	Flange Code
TL28-8M-50	28	4F	STEEL	1210	71.30	70.00	75	–	50	60	25	17.5	79
TL30-8M-50	30	5F		1615	76.39	75.13	83	–	58	60	38	22	73
TL32-8M-50	32	5F		1615	81.49	80.16	87	–	62	60	38	22	76
TL34-8M-50	34	5F		1015	86.58	85.22	91	–	65	60	38	22	66
TL36-8M-50	36	5F		1615	91.67	90.30	97	–	68	60	38	22	68
TL38-8M-50	38	5F		1615	96.77	95.39	102	–	72	60	38	22	70
TL40-8M-50	40	4F		2012	101.86	100.49	106	–	82	60	32	14	77
TL44-8M-50	44	4F		2012	112.05	110.67	120	–	91	60	32	14	75
TL48-8M-50	48	4F		2012	122.23	120.86	128	–	95	60	32	14	78
TL56-8M-50	56	4F		2517	142.60	141.23	150	–	116	60	45	7.5	85
TL64-8M-50	64	4F		2517	162.97	161.60	168	–	137	60	45	7.5	90
TL72-8M-50	72	9WF		2517	183.35	181.97	192	125	158	60	45	7.5	97
TL80-8M-50	80	4	CAST IRON	3020	203.72	202.35	–	–	180	60	51	4.5	–
TL90-8M-50	90	9W		3020	229.18	227.81	–	170	204	60	51	4.5	–
TL112-8M-50	112	9W		3020	285.21	283.83	–	170	260	60	51	4.5	–
TL144-8M-50	144	9A		3020	366.69	365.32	–	170	341	60	51	4.5	–
TL168-8M-50	166	7A		3525	427.81	426.44	–	198	395	60	65	2.5	–
TL192-8M-50	192	7A		3525	488.92	487.55	–	198	455	60	65	2.5	–

HTD 8M-85

Part Code	Number ofTeeth	Type	Mat	Bush Number	Dp	De	Df	Dm	Di	F	s	R	Flange Code
TL34-8M-85	34	4F		1615	86.58	85.22	91	–	65	95	38	28.5	66
TL36-8M-85	36	4F		1615	91.67	90.30	97	–	68	95	38	28.5	68
TL38-8M-85	38	4F		1615	96.77	95.39	102	–	72	95	38	28.5	70
TL40-8M-85	40	4F		2012	101.86	100.49	106	–	82	95	32	31.5	77
TL44-8M-85	44	4F	STEEL	2012	112.05	110.67	120	–	91	95	32	31.5	75
TL48-8M-85	48	4F		2517	122.23	120.86	128	–	100	95	45	25	78
TL56-8M-85	56	4F		2517	142.60	141.23	150	–	117	95	45	25	85
TL64-8M-85	64	4F		2517	162.97	161.60	168	–	137	95	45	25	90
TL72-8M-85	72	4F		3020	183.35	181.97	192	–	158	95	51	22	97
TL80-8M-85	80	4		3020	203.72	202.35	–	–	180	95	51	22	–
TL90-8M-85	90	9W		3020	229.18	227.81	–	170	204	95	51	22	–
TL112-8M-85	112	9W	CAST	3020	285.21	283.83	–	170	260	95	51	22	–
TL144-8M-85	144	9A	IRON	3525	366.69	365.32	–	198	336	95	65	15	–
TL168-8M-85	168	9A		3525	427.81	426.44	–	198	395	95	65	15	–
TL192-8M-85	192	9A		3525	488.92	487.55	–	198	455	95	65	15	–

HTD 14M-40

Part Code	Number ofTeeth	Type	Mat	Bush Number	Dp	De	Df	Dm	Di	F	s	R	Flange Code
TL28-14M-40	28	4F		2012	124.78	122.12	128		94	54	32	11	153
TL29-14M-40	29	4F		2012	129.23	120.57	138		98	54	32	11	154
TL30-14M-40	30	4F		2012	133.69	130.99	138		98	54	32	11	154
TL32-14M-40	32	4F		2012	142.60	139.88	154	–	108	54	32	11	160
TL34-14M-40	34	4F		2517	151.52	148.79	160		110	54	45	4.5	166
TL36-14M-40	36	4F	STEEL	2517	160.43	157.68	168		120	54	45	4.5	168
TL38-14M-40	38	4F		2517	169.34	166.60	183	–	130	54	45	4.5	172
TL40-14M-40	40	4F		2517	178.25	175.49	188		138	54	45	4.5	162
TL44-14M-40	44	4F		3020	196.08	193.28	211		155	54	51	1.5	175
TL48-14M-40	48	4F		3020	213.90	211.11	226		170	54	51	1.5	180
TL56-14M-40	56	9WF		3020	249.55	246.76	256	170	208	54	51	1.5	182
TL64-14M-40	64	9WF		3020	285.21	282.41	296	170	240	54	51	1.5	184
TL72-14M-40	72	9W		3020	320.86	318.06	–	170	280	54	51	1.5	–
TL80-14M-40	80	9A		3020	356.51	353.71	–	170	315	54	51	1.5	–
TL90-14M-40	90	9A	CAST IRON	3020	401.07	398.28	–	170	360	54	51	1.5	–
TL112-14M-40	112	9A		3020	499.11	496.32	–	170	457	54	51	1.5	–
TL144-14M-40	144	9A		3020	641.71	638.92	–	170	600	54	51	1.5	–
TL168-14M-40	168	9A		3020	748.66	745.87	–	170	706	54	51	1.5	–
TL192-14M-40	192	9A		3020	855.62	852.82	–	170	813	54	51	1.5	–
TL216-14M-40	210	9A		3020	962.57	959.76	–	170	920	54	51	1.5	–

HTD 14M—55

Part Code	Number of Teeth	Type	Mat	Bush Number	Dp	De	Df	Dm	Di	F	s	R	Flange Code
TL28-14M-55	28	4F		2012	124.78	122.12	128	–	94	70	32	19	153
TL29-14M-55	29	4F		2012	129.23	126.57	138	–	100	70	32	19	154
TL30-14M-55	30	4F		2517	133.69	130.99	138	–	100	70	45	12.5	154
TL32-14M-S5	32	4F		2517	142.60	139.88	154	–	108	70	45	12.5	160
TL34-14M-55	34	4F		2517	151.52	148.79	160	–	110	70	45	12.5	166
TL36-14M-55	36	4F	STEEL	2517	160.43	157.68	168	–	120	70	45	12.5	168
TL38-14M-55	38	4F		2517	169.34	166.60	183	–	130	70	45	12.5	172
TL40-14M-55	40	4F		2517	178.25	175.49	188	–	138	70	45	12.5	162
TL44-14M-55	44	4F		3020	196.08	193.28	211	–	155	70	51	9.5	175
TL48-14M-55	48	4F		3020	213.90	211.11	226	–	170	70	51	9.5	180
TL56-14M-55	56	9WF		3020	249.55	246.76	256	170	208	70	51	9.5	182
TL64-14M-55	64	9WF		3020	285.21	282.41	296	170	240	70	51	9.5	184
TL72-14M-55	72	9W		3020	320.86	318.06	–	170	280	70	51	9.5	–
TL80-14M-55	80	9A		3020	356.51	353.71	–	170	315	70	51	9.5	–
TL90-14M-55	90	9A	CAST IRON	3020	401.07	398.28	–	170	360	70	51	9.5	–
TL112-14M-55	112	9A		3020	499.11	496.32	–	170	457	70	51	9.5	–
TL144-14M-55	144	9A		3020	641.71	638.92	–	170	600	70	51	9.5	–
TL168-14M-55	168	9A		3020	748.66	745.87	–	170	706	70	51	9.5	–
TL192-14M-55	192	9A		3020	855.62	852.82	–	170	813	70	51	9.5	–
TL216-14M-55	216	7A		3535	962.57	959.76	–	170	920	70	89	9.5	–

HTD 14M-85

Part Code	Number ofTeeth	Type	Mat	Bush Nwnber	DP	De	Df	Dm	Di	F	s	R	Flange Code
TL28-14M-85	28	4F	STEEL	2517	124.78	122.12	128	–	98	102	45	28.5	153
TL29-14M-85	29	4F		2517	129.23	126.57	138	–	100	102	45	28.5	154
TL30-14M-85	30	4F		2517	133.69	130.99	138	–	100	102	45	28.5	154
TL32-14M-85	32	4F		2517	142.60	139.88	154	–	108	102	45	28.5	160
TL34-14M-85	34	4F		2517	151.52	148.79	160	–	110	102	45	28.5	166
TL36-14M-85	36	4F		3020	160.43	157.68	168	–	120	102	51	25.5	168
TL38-14M-85	38	4F		3020	169.34	166.60	183	–	130	102	51	25.5	172
TL40-14M-85	40	4F		3020	178.25	175.49	188	–	138	102	51	25.5	162
TL44-14M-85	44	4F		3020	196.08	193.28	211	–	153	102	51	25.5	175
TL48-14M-85	48	4F		3020	213.90	211.11	226	–	170	102	51	25.5	180
TL56-14M-85	56	4F		3525	249.55	246.76	256	190	210	102	51	25.5	182
TL64-14M-85	64	9WF	CAST IRON	3525	285.21	262.41	296	190	240	102	65	18.5	184
TL72-14M-85	72	9W		3525	320.86	318.06	–	190	280	102	65	18.5	–
TL80-14M-85	80	9A		3525	356.51	353.71	–	190	315	102	65	18.5	–
TL90-14M-85	90	9A		3525	401.07	398.28	–	190	360	102	65	18.5	–
TL112-14M-85	112	9A		3525	499.11	496.32	–	190	457	102	65	18.5	–
TL144-14M-85	144	9A		3525	641.71	638.92	–	190	600	102	65	18.5	–
TL108-14M-85	168	9A		3525	748.66	745.87	–	190	706	102	65	18.5	–
TL192-14M-85	192	3A		4040	855.62	852.82	–	190	813	102	102	–	–
TL216-14M-85	216	3A		4040	962.57	959.76	–	190	920	102	102	–	–

HTD 14M-115

Part Code	Number ofTeeth	Type	Mat	Bush Number	Dp	De	Df	Dm	Di	F	s	R	Flange Code
TL28-14M-115	28	4F		2517	124.78	122.12	128	–	98	133	45	44	153
TL29-14M-115	29	4F		2517	129.23	126.57	138	–	100	133	45	44	154
TL30-14M-115	30	4F		2517	133.69	130.99	138	–	100	133	45	44	154
TL32-14M-115	32	4F		2517	142.60	139.88	154	–	108	133	45	44	160
TL34-14M-115	34	4F		2517	151.52	148.79	160	–	110	133	45	44	166
TL36-14M-115	36	4F	STEEL	3020	160.43	157.68	168	–	125	133	51	41	168
TL38-14M-115	38	4F		3020	169.34	166.60	183	–	130	133	51	41	172
TL40-14M-115	40	4F		3020	178.25	175.49	188	–	138	133	51	41	162
TL44-14M-115	44	4F		3020	196.08	193.28	211	–	155	133	76	28.5	175
TL48-14M-115	48	4F		3020	213.90	211.11	226	–	170	133	76	28.5	180
TL56-14M-115	56	4F		3535	249.55	246.76	256	–	208	133	89	22	182
TL64-14M-115	64	9WF		3535	285.21	282.41	296	100	240	133	89	22	184
TL72-14M-115	72	9W		3535	320.86	318.06	–	190	280	133	89	22	–
TL80-14M-115	80	9A		3535	356.51	353.71	–	190	315	133	89	22	–
TL90-14M-115	90	9A	CAST IRON	3535	401.07	398.28	–	190	360	133	89	22	–
TL112-14M-115	112	9A		3535	499.11	496.32	–	190	457	133	89	22	_
TL144-14M-115	144	9A		4040	641.71	638.92	–	230	600	133	102	15.5	–
TL168-14M-115	168	9A		4040	748.66	745.87	–	230	706	133	102	15.5	–
TL192-14M-115	192	9A		4040	855.62	852.82	–	230	813	133	102	15.5	–
TL216-14M-115	216	9A		4040	962.57	959.76	–	230	920	133	102	15.5	–

HTD14M-170

Part Code	Number ofTeeth	Type	m Mat	Bush Number	Dp	Da	Df	Dm	Di	F	s	R	Flange Code
TL38-14M-170	38	4F		3030	169.34	166.60	183	–	130	187	76	55.5	166
TL40-14M-170	40	4F	STEEL	3030	178.25	175.49	188	–	138	187	76	55.5	168
TL44-14M-170	44	4F	STEEL	3535	196.08	193.28	211	–	153	187	89	49	172
TL48-14M-170	48	4F		3535	213.90	211.11	226	–	170	187	89	49	162
TL56-14M-170	56	4F		3535	249.55	246.76	256	–	208	187	89	49	175
TL64-14M-170	64	4F		4040	285.21	282.41	296	–	240	187	102	42.5	180
TL72-14M-170	72	9W		4040	320.86	318.06	–	230	280	187	102	42.5	182
TL80-14M-170	80	9W		4040	356.51	353.71	–	230	315	187	102	42.5	184
TL90-14M-170	90	9A	CAST	4040	401.07	398.28	–	230	380	187	102	42.5	–
TL112-14M-170	112	9A	IRON	5050	499.11	496.32	–	265	457	187	127	30	–
TL144-14M-170	144	9A		5050	641.71	638.92	–	265	600	187	127	30	–
TL168-14M-170	168	9A		5050	748.66	745.87	–	265	706	187	127	30	–
TL192-14M-170	192	9A		5050	855.62	852.82	–	265	813	187	127	30	–
TL216-14M-170	216	9A		5050	962.57	959.76	–	265	920	187	127	30	–

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “HTD taper bushes”

Packing&Shipping & Delivery

Packing Shipping Delivery

Chains package: First we will use carton package the chains--------then put in wooden box.

We also can custom color package according to your demand

Company Profile

FAQ

How to choose power transmissions parts and industrial products which meet our requirement

Chains	Sprockets	Pulleys	Timing belt Pulley	V-belt Pulley
Sheaves	Coupings	Bush &Hub	Gear& Rack	V-Belt
Locking Assembly	Pulley	Gearbox	Reducer	Shaft Collar
Rod End Bearing	Clevis	PTO	Chain Guide	Belt Guide
Rubber Buffer	Chain Tensioner	PTO Drive Shafts	Universal Joints	Roller Chains
Conveyor Chains	V-Belts	Worm Gearbox	Helical Gear	Worm
Agricultural Chain	CNC Proces Parts	Casting	Stamping
Powder Metallurgy	CNC Proces Parts	Casting	Stamping

What Products Do you sell ?

We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.

What is the producing process?

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

How to control the products quality?

Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

What is the transportation?

-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.

Can we design packaging?

-Yes. Default is regular packing, and we can make customer's own packing.

Can you provide OEM service?

-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

Can you give me discount on Power Transmissions Parts and Industrial parts?

-Yes, of course. Pls. send me your Email, you'll get more

Q: Are You a trading company or a manufacturer?

A: We Are the factory and have our Own trading company

Q: How Can I get an offer?

A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.

Q: What is your minimum order size?

A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay the freight.

Q: What is the lead time for mass production?

A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.

Q: What if the parts don't Work?

A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.

Q: What are your terms of payment?

A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable

HTD taper bushes

HTD taper bushes

Configuration of timing belt pulleys

Reviews

Related products

Got a query for Power-Trans Power transmissions Part Product or Services?
