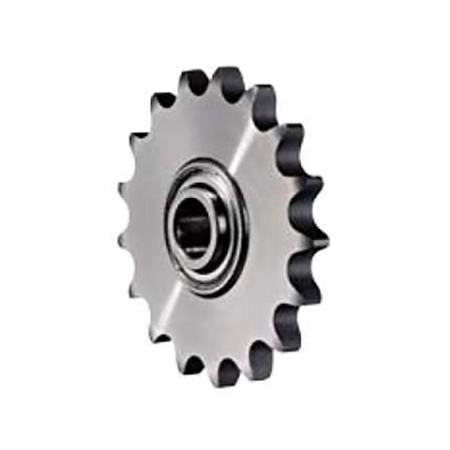

Idler sprockets 35BB20H 40BB17H 40BB18H 50BB15H 50BB17H 60BB13H 60BB15H 80BB12H
On a typical roller chain drive application, there is a drive sprocket and idler sprockets. Idler sprockets are designed in conveyor applications to essentially “carry” or guide a roller chain in a straight line, around a bend, or in a complete 360-degree directional change. If an idler sprocket fails while in use the result can be catastrophic depending on the application. Because of this it is always important to monitor the status of your idler sprockets and use a high-quality sprocket.

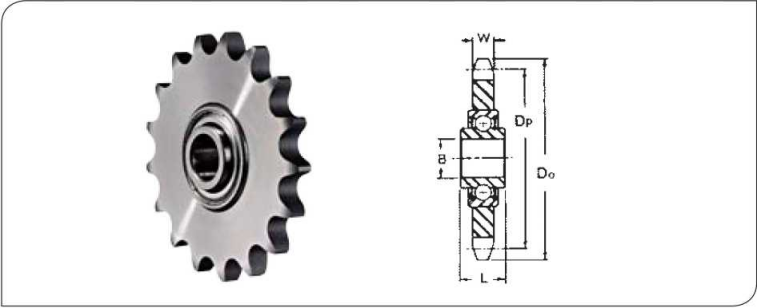

Diameter Data
No.of teeth | Catalog number | Sprocket
No. |
Outside
Dia Dp |
Bearing
bore B |
Bearing
thickness L |
Teeth
thickness W |
Weight
Kg |
20 | 35BB20H | 35 | 2.60 | 0.638 | 0.72 | 0.168 | 0.38 |
17 | 40BB17H | 40 | 2.97 | 0.638 | 0.72 | 0.284 | 0.52 |
18 | 40BB18H | 40 | 3.14 | 0.638 | 0.72 | 0.284 | 0.53 |
15 | 50BB15H | 50 | 3.32 | 0.638 | 0.72 | 0.343 | 0.75 |
17 | 50BB17H | 50 | 3.72 | 0.638 | 0.72 | 0.343 | 0.78 |
13 | 60BB13H | 60 | 3.51 | 0.638 | 0.72 | 0.459 | 0.76 |
15 | 60BB15H | 60 | 3.98 | 0.638 | 0.72 | 0.459 | 1.06 |
12 | 80BB12H | 80 | 4.36 | 0.750 | 0.61 | 0.575 | 1.50 |
Note: 0.638Dim.is(+0.005 /0.000 0.750Dim.is( +0.005/0.000 )
