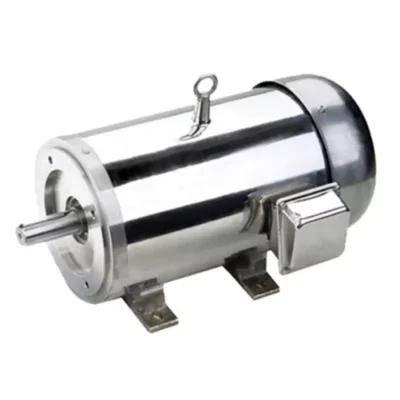

IEC Stainless Steel Motor B3 Foot Mounted TEFC

Stainless steel motor is hygienic in design, smooth in body, and IP66 in protection grade, suitable for all flushing and sanitary applications. Ours motor is designed to withstand frequent high pressure and high-temperature flushing. All external components, including the motor shaft, are 300 series stainless steel. This provides excellent corrosion resistance because there is no paint falling off, and it is resistant to the disinfection chemicals used in the cleaning process. It provides a lasting solution in which hygiene is crucial.

Category: Stainless Steel Electric Motors

Description

Description of stainless steel motor(TEFC B3 Foot Mounted Motor)

Stainless steel motor(TEFC B3 Foot Mounted Motor) is hygienic in design, smooth in body, and IP66 in protection grade, suitable for all flushing and sanitary applications. Motor is designed to withstand frequent high pressure and high-temperature flushing. All external components, including the motor shaft, are 300 series stainless steel. This provides excellent corrosion resistance because there is no paint falling off, and it is resistant to the disinfection chemicals used in the cleaning process. It provides a lasting solution in which hygiene is crucial.
Unlike standard motors, our stainless steel series has “clean lines” and no heat sinks. In the design, considering the cleanliness, it has no paint fragments or peeling, and no surface will rust. The waste can be easily washed away without leaving any residue, and the motor can be safely used in food processing. Even the nameplate is laser etched on the shell to reduce the area where bacteria are latent.

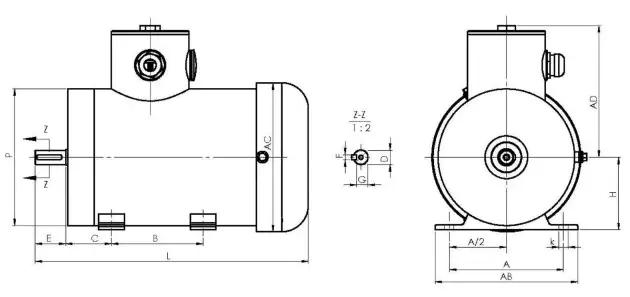

TEFC B3 Foot Mounted Motor Specifications

Frame Type	Poles	A	A/2	B	C	D	E	F	G	H	K	P	Shaft Hole	AB	AC	AD
71	2, 4, 6	112	56	90	45	14	30	5	11	71	7	134	M5	140	146	129
80	2, 4, 6	125	62.5	100	50	19	40	6	15.5	80	10	144	M6	150	156	135
90S	2, 4, 6	140	70	100	56	24	50	8	20	90	9	164	M8	164	176	147
90L	2, 4, 6	140	70	125	56	24	50	8	20	90	9	164	M8	164	176	147
100	2, 4, 6	160	80	140	63	28	60	8	24	100	12	190	M10	190	203	169
112	2, 4, 6	190	95	140	70	28	60	8	24	112	12	206	M10	220	218	174
132S	2, 4, 6	216	108	140	89	38	80	10	33	132	12	244	M12	246	256	192
132M	2, 4, 6	216	108	178	89	38	80	10	33	132	12	244	M12	246	256	192

Parameters of stainless steel motor

IEC Stainless steel motors have the detailed specifications as follows

No	IEC Frame size	Power (kW)	Mounted	Mounted
1	IEC63	0.18kw	B3, B5, B14, B34, B35	IP66, IP69K
2	IEC71	0.25kw, 0.37kw
3	IEC80	0.55kw, 0.75kw
4	IEC90	1.1kw, 1.5kw
5	IEC100	2.2kw, 3.0kw
6	IEC112	4.0kw
7	IEC132	5.5kw, 7.5kw

NEMA Stainless steel motors have the detailed specifications as follows

No	NEMA Power	NEMA Frame
1	1/3HP-2HP TEFC, TENV 3PH	56C foo (footless)
2	3HP-5HP TEFC, TENV 3PH	182TC, 184TC Foo (footless)
3	7.5HP-20HP TEFC 3PH	213-256TC Foot(footless)
4	1/3HP-5HP JM/JP TEFC, TENV 3PH	56C-184TC Foot(footless)
5	7.5HP-20HP JM/JP TEFC 3PH	213-256TC Foot(footless)

Application Of Stainless Steel Motor

Food and chemical processing plants, pharmaceutical applications, and other environments require corrosion-resistant, watertight motors. Consideration and any replacements must be quick and easy.
Stainless steel motor:

NEMA Stainless Steel Motor
Food Safe Stainless Steel Motor
Washdown duty motor
IEC Stainless steel motor

Types of Protection of Stainless Steel Motor

Overcurrent protection:
Overcurrent means that the working current of the motor exceeds its rated value. If it takes a long time, it will overheat the motor and damage it, so protective measures must be taken.
When overcurrent, the current still flows through the standard path, and its value is smaller than the short-circuit current value. Overcurrent is generally due to excessive load or incorrect startup. To avoid affecting the regular operation of the motor, the overcurrent protection action value should be slightly larger than the standard starting current.
Overcurrent protection also requires the protection device to be able to act instantaneously. Overcurrent protection generally uses overcurrent relays.

Stainless Steel Motor Manufacturer

We are a professional manufacturer with more than 30 years of motor production experience.
Export 500000 to 600000 motors to other countries every year.
We test the materials before production and conduct three to four tests during production to ensure good product quality,
We also produce according to your requirements
Best production capacity, best quality control, and best service
We can become your OEM manufacturer under your brand authorization.

Our certification:

Ul/CSA/CE/ccc certification
Ul/CSA/WTDP certified Laboratory
