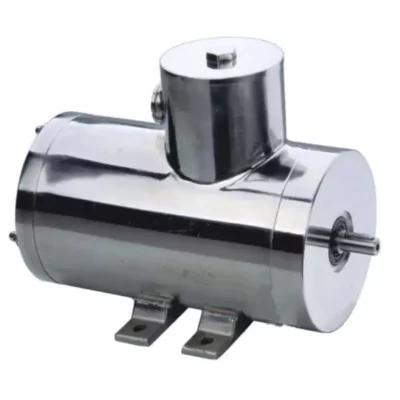

IEC Stainless Steel Motor B3 Foot Mounted-TENV
Description Of Stainless Steel Motor

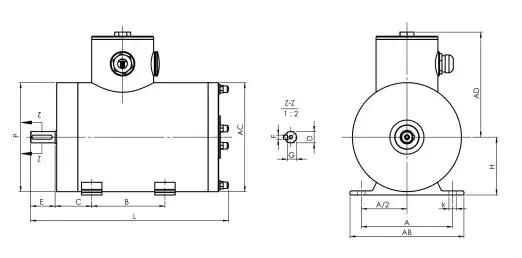

Stainless Steel Motor B3 Foot Mounted-TENV
Frame Type | Poles | A | A/2 | B | C | D | E | F | G | H | K | P | Shaft Hole | AB | AC | AD |
63 | 2, 4 | 100 | 50 | 80 | 40 | 11 | 23 | 23 | 8.5 | 63 | 7 | 114 | M4 | 125 | 114 | 117 |
71 | 2,4,6 | 112 | 56 | 90 | 45 | 14 | 30 | 30 | 11 | 71 | 7 | 134 | M5 | 140 | 134 | 129 |
80 | 125 | 62.5 | 100 | 50 | 19 | 40 | 40 | 15.5 | 80 | 10 | 144 | M6 | 150 | 144 | 135 | |
90S | 140 | 70 | 100 | 56 | 24 | 50 | 50 | 20 | 90 | 9 | 164 | M8 | 164 | 164 | 147 |
Specifications of IEC Stainless steel motor
Frame | KW | Mounting | IP |
63 | 0.18 | B3, B5, B14, B34, B35 | IP55 |
71 | 0.25, 0.37 | ||
80 | 0.55, 0.75 | ||
90 | 1.1, 1.5 | ||
100 | 2.2, 3.0 | ||
112 | 4.0 | ||
1332 | 5.5, 7.5 |
It is also available if you have any special requirements for the motor.
Features of IEC Stainless steel motor
*Stainless steel servo motor, static torque 0.45 to 20nm, peak torque 64nm
*Stainless steel servo reduction motor with planetary gear or bevel gear
*The shell adopts stainless steel V2a 1.4301 (AISI 304) or V4A 1.4404 (AISI 316L) or an anodized aluminum shell
*Surface and flange installation (imb5, IMB14)
*Protection grade up to ip66k / ip69k under flushing conditions
*Large speed regulation range
*Ul/CSA certification
*EHEDG certification is pending (expected in 2022)
*Feedback using a resolver or preface, EnDat, or drive clip encoder
*Single cable technology (OCT)
*Braking options
*AC servo motor, DC servo motor, and AC asynchronous motor
*Decentralized servo motor with integrated servo controller
*Delivered with servo controller or frequency converter
*Custom design
Other stainless steel motors
Stainless Steel Motor Manufacturer
To ensure reliable consumer protection, the design requirements for food and pharmaceutical machinery have always been high. All components in the machine must also meet these requirements.
Since its establishment, Power-trans has continuously developed stainless steel servo motors, gear motors, and torque motors with hygienic designs. A comprehensive range of products can be used with corrosive and effective cleaners and disinfectants as well as high-pressure cleaners to achieve CIP.
How to choose power transmissions parts and industrial products which meet our requirement
Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
What is the producing process?

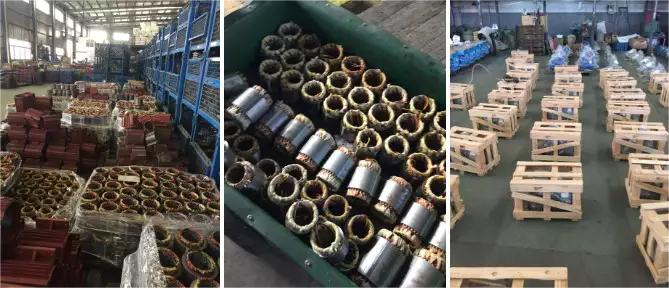

Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
Can you give me discount on Power Transmissions Parts and Industrial parts?
-Yes, of course. Pls. send me your Email, you'll get more
Q: Are You a trading company or a manufacturer?
A: We Are the factory and have our Own trading company
Q: How Can I get an offer?
A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.
Q: What is your minimum order size?
A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't pay the freight.
Q: What is the lead time for mass production?
A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.
Q: What if the parts don't Work?
A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.
Q: What are your terms of payment?
A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable
