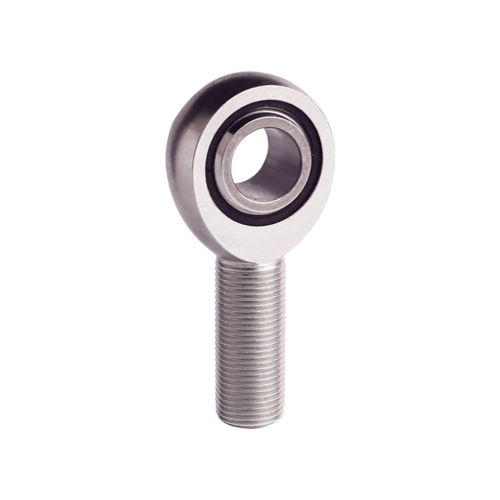

Inch dimensions Injection Molded Rod Ends PNM
Rod Ends PNM Material and surface treatments: – Body: medium carbon steel 45 , Zinc plating.Alternative stainless steel with surface passivation. – Steel ball: bearing steel GCr15 , Hard chrome plating.Alternative stainless steel 440C. – Race: nylon. – For left-hand thread , please add suffix“L” , e.g.PNML 8. |

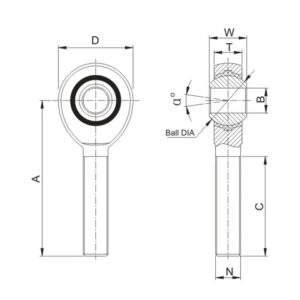

Part No. | Dimensions | Weight | ||||||||
N
Thread UNF-2A |
A
±0.015 |
B
+0.0025 -0.0005 |
C
+0.062 +0.031 |
D
±0.010 |
T
±0.005 |
W
+0.000 -0.005 |
Ball DIA
S∅ REF |
a°
Misalignment Angle |
Kg≈ | |
PNM3 | 10-32 | 1.250 | 0.1900 | 0.750 | 0.625 | 0.250 | 0.312 | 0.437 | 13 | 0.009 |
PNM4 | 1/4-28 | 1.562 | 0.2500 | 1.000 | 0.750 | 0.281 | 0.375 | 0.500 | 16 | 0.018 |
PNM5 | 5/16-24 | 1.875 | 0.3125 | 1.250 | 0.875 | 0.344 | 0.437 | 0.625 | 14 | 0.032 |
PNM6 | 3/8-24 | 1.938 | 0.3750 | 1.250 | 1.000 | 0.406 | 0.500 | 0.719 | 12 | 0.050 |
PNM7 | 7/16-20 | 2.125 | 0.4375 | 1.375 | 1.125 | 0.437 | 0.562 | 0.812 | 14 | 0.068 |
PNM8 | 1/2-20 | 2.438 | 0.5000 | 1.500 | 1.312 | 0.500 | 0.625 | 0.937 | 12 | 0.104 |
PNM10 | 5/8-18 | 2.625 | 0.6250 | 1.625 | 1.500 | 0.562 | 0.750 | 1.125 | 16 | 0.163 |
PNM12 | 3/4-16 | 2.875 | 0.7500 | 1.750 | 1.750 | 0.687 | 0.875 | 1.312 | 14 | 0.258 |
