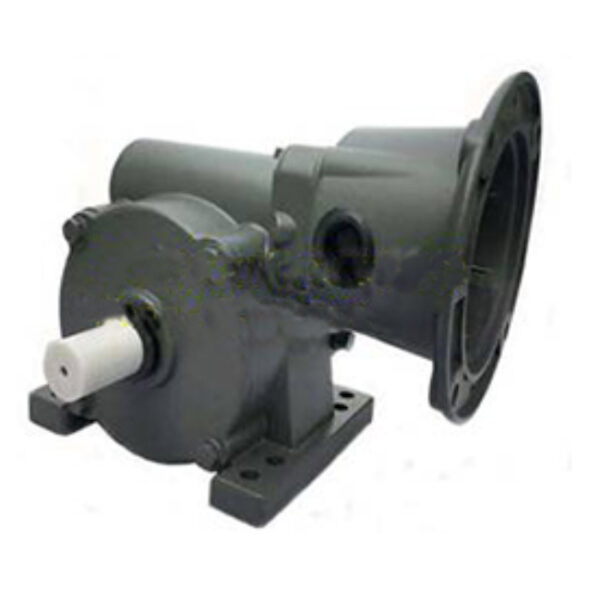

Irrigation Center-Drive Gearbox SYF-1 Series
This type of irrigation center-drive gearbox has been widely used on the driveline (drive train) of the center pivot irrigation system and the linear move (later move) irrigation system in North America, Europe area, and the Middle East. It employs an aluminum alloy case, and major transmission parts are made from high-strength alloy. By using a large number of sealing and dust-proof devices, it features light weight, long service life, and good tightness as well.
SYF-1 Series Irrigation Center-Drive Gearbox Model Numbers
SYF-1-20=87rpm(20:1 ratio)
SYF-1-30=58rpm(30:1 ratio)
SYF-1-40=43rpm(40:1 ratio)
SYF-1-50=35rpm(50:1 ratio)
SYF-1-58=30rpm(58:1 ratio)
SYF-1-60=29rpm(60:1 ratio)
(When input speed is 1740 rpm)
SYF-1 Series Irrigation Center-Drive Gearbox Performance
1. Torque capacity: 4,500 lb. in (510 N.m).
2. Ratio: 20:1, 30:1, 40:1, 50:1, 58:1, 60:1 (others available).
3. Accepts NEMA 56-C face motors with 0.625” shafts, 2” long with 0.19” key slot.
4. Multiple mount bolt patterns 5”×6”, 3.38” ×6.38” fit all pivots.
5. High-strength aluminum bronze worm gear.
6. Includes an easy-to-install shock-absorbing motor to worm gearbox coupler.
7. Both output shafts have 1/4” ×1-1/4” keyways.
8. Shipped with oil.
9. Includes special external crop guard seals.
10. Precision die-cast tempered aluminum housing.
11. Weight: 15.9 lbs (7.2 kg).
12. Oil capacity: 0.21 gal (0.8 L)

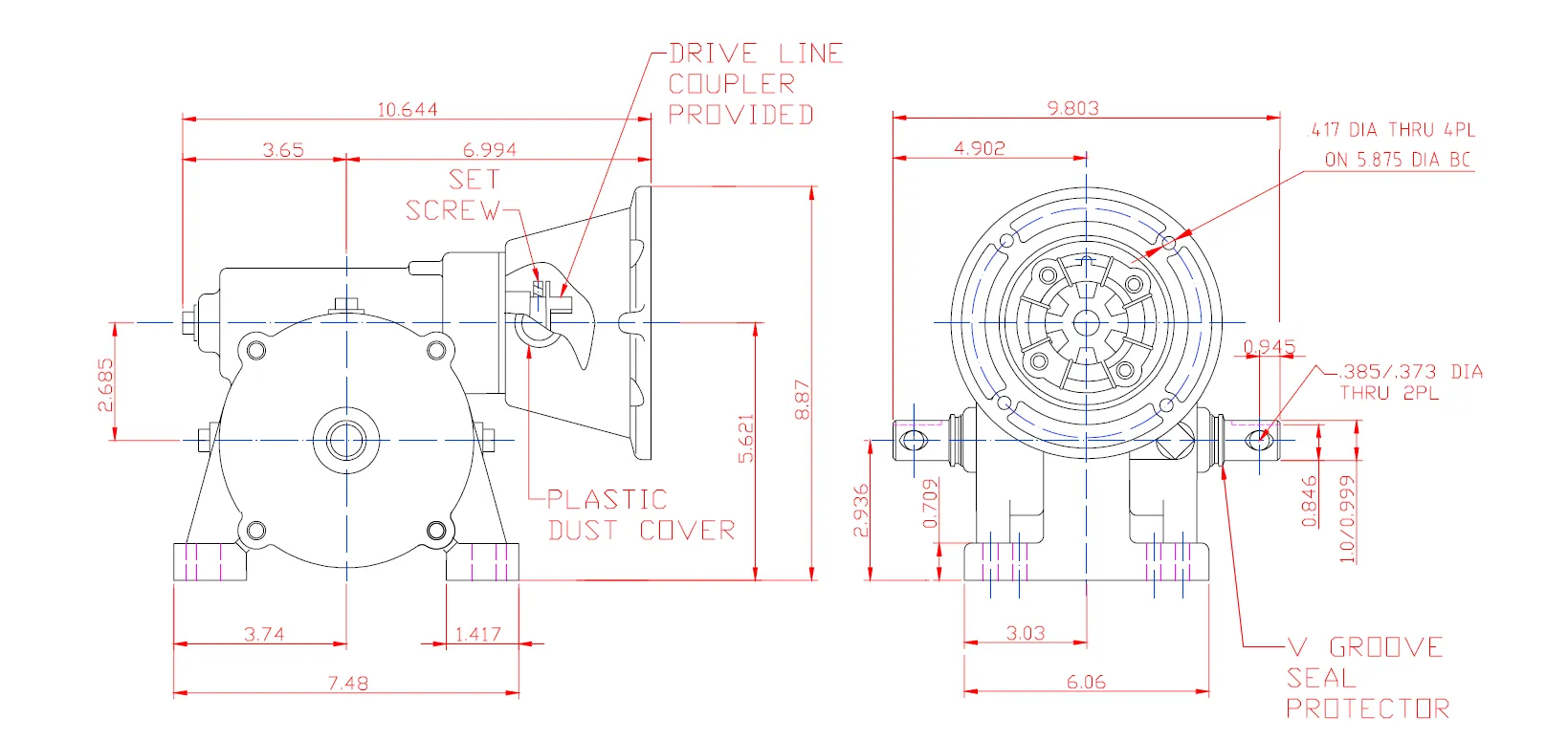

Irrigation Center-Drive Gearbox SYF-1 Series Installation and Contour Dimensions
Irrigation Center-Drive Gearbox SYF-1 Series Advantages
The Irrigation Center-Drive Gearbox SYF-1 Series offers several advantages that make it a preferred choice for irrigation systems. Here are some of its key advantages:
1. Efficient Power Transmission: The irrigation center-drive gearbox provides efficient power transmission from the motor to the irrigation system. It is designed to minimize energy loss and maximize the output torque, ensuring optimal performance and reduced energy consumption.
2. High Torque Output: This irrigation gearbox series is capable of delivering high torque output, allowing it to handle heavy loads and operate reliably even in demanding irrigation applications. The high torque output ensures efficient operation, reducing the risk of equipment failure or damage.
3. Compact and Space-Saving Design: The irrigation center-drive gearbox features a compact and space-saving design, making it suitable for installations where space is limited. It can be easily integrated into existing irrigation systems without requiring significant modifications or expansions.
4. Durability and Longevity: The gearbox is built with high-quality materials and precision engineering, ensuring durability and longevity. It is designed to withstand harsh environmental conditions, such as temperature variations, moisture, and dust, commonly encountered in irrigation systems.
5. Smooth and Quiet Operation: The irrigation center-drive gearbox is engineered to operate smoothly and quietly, minimizing noise and vibration during its operation. This is particularly important for irrigation systems located near residential areas or noise-sensitive environments.
6. Versatility and Compatibility: The irrigation gearbox is compatible with a wide range of irrigation systems, including center-pivot and linear-move systems. It offers versatility in terms of installation options and can be easily adapted to different irrigation configurations.

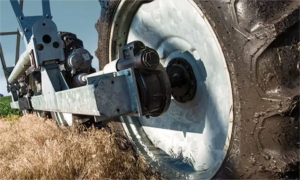

Irrigation Center-Drive Gearbox SYF-1 Series Applications
The Irrigation Center-Drive Gearbox SYF-1 Series is specifically designed for use in irrigation systems. It finds applications in various types of irrigation systems, including:
(1) Center-Pivot Systems: Center-pivot irrigation systems are widely used in large-scale agricultural operations. The irrigation center-drive gearbox is ideal for driving the center pivot towers, ensuring precise and efficient rotation of the irrigation system.
(2) Linear-Move Systems: Linear-move irrigation systems, also known as lateral move or lateral roll systems, require reliable and smooth movement along a linear path. The irrigation gearbox is suitable for driving the lateral move systems, providing consistent and accurate motion for uniform water distribution.
(3) Traveling Gun Systems: Traveling gun irrigation systems are commonly used for irrigating irregularly shaped fields or areas with obstacles. The gearbox can be utilized to drive the traveling gun, controlling its movement and ensuring proper coverage of the irrigated area.
(4) Hose Reel Systems: Hose reel irrigation systems involve the use of a large reel that carries a flexible hose for water distribution. The irrigation center-drive gearbox can be employed to drive the hose reel, enabling controlled and efficient retraction and extension of the hose.
(5) Drip Irrigation Systems: Drip irrigation is a precise and water-efficient method of irrigation. Although the irrigation gearbox may not be directly involved in the water delivery aspect of drip irrigation, it can be utilized in ancillary components, such as automated valves or pumps, for system control and operation.
(6) Irrigation Pump Drives: In some irrigation setups, pumps are required to supply water from a water source to the irrigation system. The gearbox can be used to drive the irrigation pumps, providing the necessary torque and speed for optimal pump performance.
