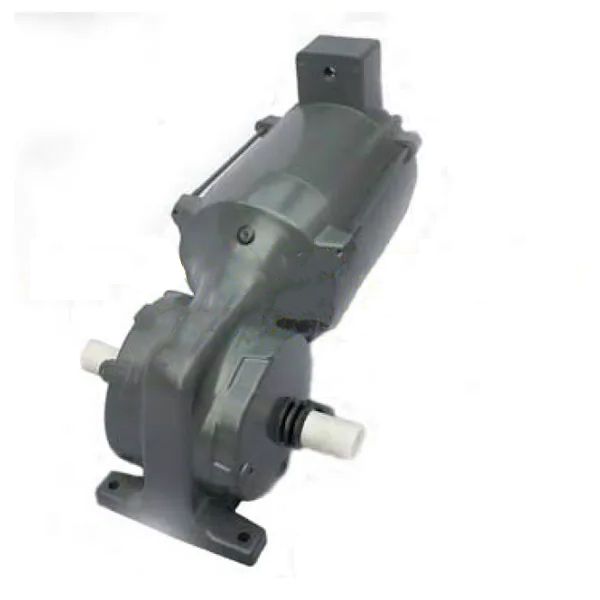

Irrigation Center-Drive Gearbox SYF-2M Series

Irrigation Center-Drive Gearbox SYF-2M Series

The SYF-2M Series Irrigation Center-Drive Gearbox is a type of gearbox specifically designed for use in irrigation systems. It is a crucial component that helps drive and control the movement of the irrigation system, ensuring efficient and effective water distribution in agricultural fields or landscape areas.

The gearbox is designed to be mounted at the center of the irrigation system, usually connected to a motor or engine that provides the power for operation. It is responsible for converting the rotational motion of the motor or engine into the desired output speed and torque required for the irrigation system.

The SYF-2M Series Irrigation Gearbox is known for its durability, reliability, and high efficiency. It is designed to withstand the harsh conditions often encountered in agricultural and irrigation applications, including exposure to dust, moisture, and varying temperatures.

Irrigation Center-Drive Gearbox SYF-2M Series Model Numbers

SYF-2M-20=87rpm(20:1 ratio,1-1/2 HP motor)
SYF-2M-30=58rpm(30:1 ratio, 1-1/2 HP motor)
SYF-2M-40=43rpm(40:1 ratio, 1 HP motor)
SYF-2M-50=35rpm(50:1 ratio, 1 HP motor)
SYF-2M-58=30rpm(58:1 ratio, 1 HP motor)
SYF-2M-60=29rpm(60:1 ratio, 1 HP motor)
(When input speed is 1740 rpm)

Irrigation Center-Drive Gearbox SYF-2M Series Performance

1. Ratio: 20:1, 30:1, 40:1, 50:1, 58:1, 60:1 (athers available).
2. Using a self-locking taper shaft connection (motor to worm shaft) allows on-site replacement without
removing the worm shaft or disconnecting the load. This ensures precision alignment and eliminates fretting
to expedite motor removal.
3. Mount bolt patterns 5” × 6”.
4. High-strength aluminum bronze worm gear.
5. Shipped with oil.
6. Includes special external crop guard seals.
7. Precision die-cast tempered aluminum housing.
8. All critical electrical connections are encapsulated to resist penetration of moisture.
9. Specially designed for rugged irrigation duty.
10. 460/380 volt, 3 phase, 60/50 HZ dual voltage.
11. Thermally protected; automatic reset.
12. Internal fin cooled.
13. Totally enclosed light weight easy-to-access top junction box.
14. Class F-rated insulation.
15. Minimal AMP draw: full load current at rated voltage, 2.3 AMPS.
16. Weight: 43.2 lbs (19.6 kg).
17. Oil capacity: 0.21 gal (0.8 L)

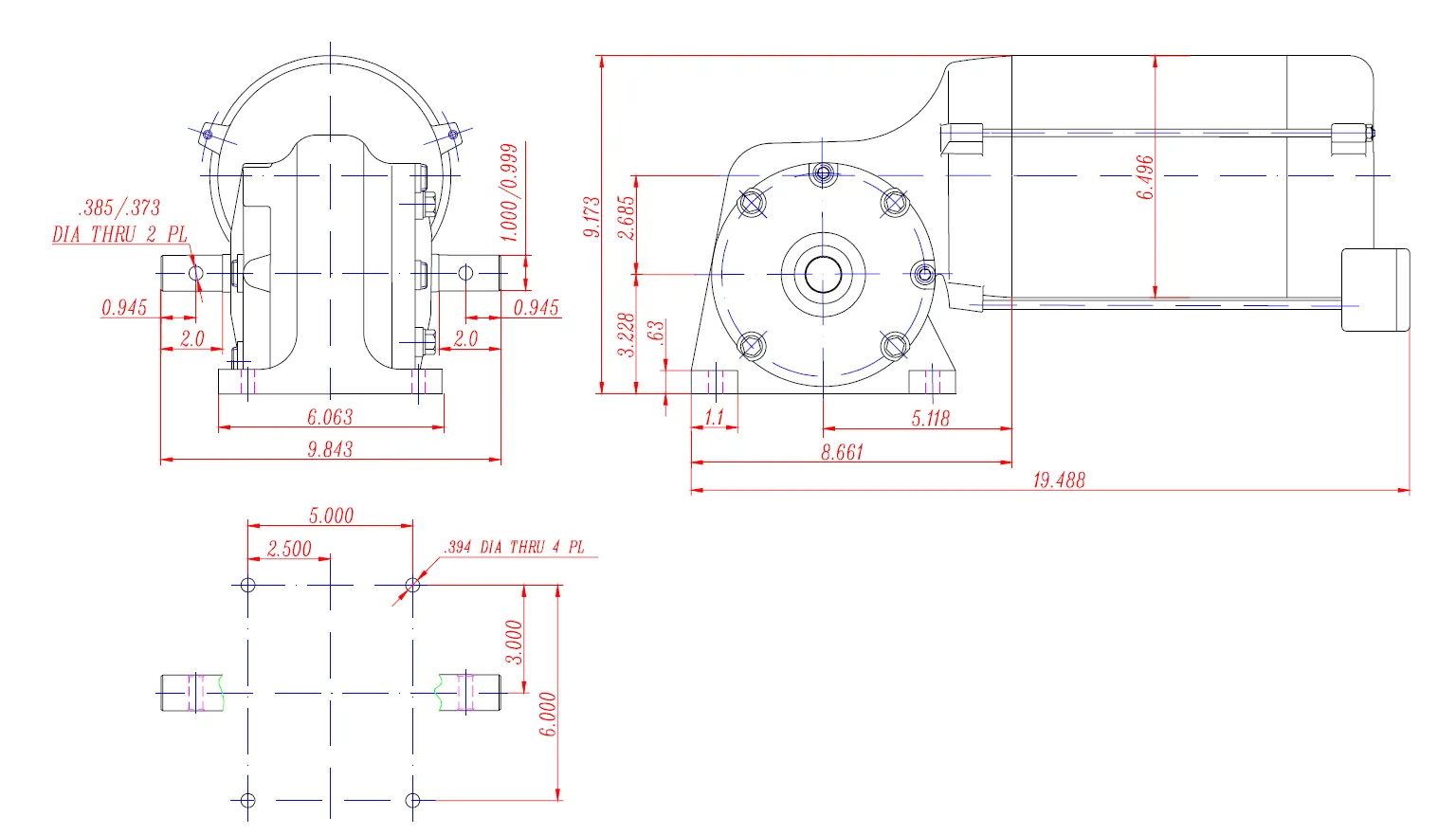

Irrigation Center-Drive Gearbox SYF-2M Series Installation and Contour Dimensions

Benefits of Irrigation Center-Drive Gearbox SYF-2M Series

The SYF-2M Series Irrigation Center-Drive Gearbox offers several benefits for irrigation systems. Here are some of the key advantages:

1. Efficient Water Distribution: The gearbox ensures efficient water distribution by converting the rotational motion from the motor or engine into the desired output speed and torque. This allows for precise control over the movement of the irrigation system, ensuring uniform coverage and minimizing water wastage.

2. Customizable Gear Ratios: The irrigation center-drive gearbox provides multiple gear ratios, allowing users to adjust the output speed to match the specific requirements of their irrigation system. This flexibility enables optimal water distribution based on factors such as soil type, crop needs, and weather conditions.

3. High Torque Capacity: The irrigation gearbox is designed to handle high torque loads effectively. This capability is crucial for overcoming resistance in the irrigation system, such as when operating in challenging terrains or when encountering obstacles. The high torque capacity ensures smooth operation and minimizes the risk of system failures.

4. Durability and Reliability: The gearbox is built with durable materials and precision engineering, making it highly reliable and capable of withstanding the demanding conditions often encountered in agricultural and irrigation environments. Its robust construction helps minimize downtime and maintenance requirements, ensuring uninterrupted operation.

5. Easy Installation and Maintenance: The irrigation center-drive gearbox is designed for easy installation and maintenance. It typically comes with user-friendly interfaces and mounting brackets that simplify the setup process. Additionally, routine maintenance tasks such as lubrication and inspection can be performed efficiently, reducing overall downtime and ensuring the longevity of the gearbox.

6. Compatibility with Various Systems: The irrigation gearbox is compatible with different types of irrigation systems, including center-pivot and linear-move systems. This compatibility allows it to be seamlessly integrated into existing setups or incorporated into new installations without significant modifications.

Applications of Irrigation Center-Drive Gearbox SYF-2M Series

The SYF-2M Series Irrigation Center-Drive Gearbox finds application in various irrigation systems. Some of the common applications include:

(1) Center-Pivot Irrigation Systems: Center-pivot irrigation systems consist of a central pivot point from which water is distributed using rotating sprinklers. The SYF-2M Series Gearbox is often used in these systems to drive the central pivot and control the rotation of the sprinklers, ensuring even water distribution across the field.

(2) Linear-Move Irrigation Systems: Linear-move systems are similar to center-pivot systems but operate on a straight path instead of a circular one. The irrigation center-drive gearbox is employed in these systems to drive the linear movement and control the speed and direction of the irrigation equipment.

(3) Lateral Move Irrigation Systems: Lateral move systems distribute water through a series of pipes mounted on wheeled structures that move laterally across the field. The gearbox can be used to drive the lateral movement of these systems, ensuring precise control over the water distribution path.

(4) Boom Irrigation Systems: Boom systems feature a series of pipes or arms that extend over the field and distribute water through nozzles. The gearbox can be employed to drive the movement and positioning of the boom arms, ensuring precise water application and coverage.

(5) Automated Drip Irrigation Systems: In automated drip irrigation systems, the irrigation gearbox can be utilized to control the movement of the irrigation lines, ensuring accurate placement of the drip emitters and efficient water delivery to the plants’ root zones.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.

Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
