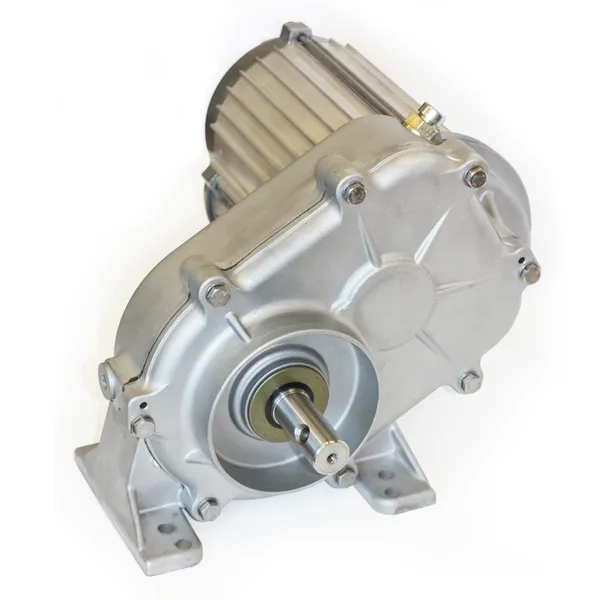

Irrigation Center-Drive Gearbox SYF-3M Series
The SYF-3M series irrigation center-drive gearbox that is designed to provide reliable and efficient power transmission in irrigation systems. It is specifically engineered for use in center pivot irrigation machines, which are commonly utilized in agricultural applications to efficiently distribute water over large fields.
The center-drive gearbox is a critical component of a center pivot irrigation system. It is responsible for transmitting power from the main drive motor to the central pivot point of the irrigation machine. This allows the irrigation system to rotate around the pivot point, effectively covering a circular area with water.
The SYF-3M series gearbox is known for its durability and high-performance capabilities. It is designed to withstand the demanding operating conditions typically encountered in agricultural irrigation, including exposure to moisture, dust, and varying temperatures. The gearbox is constructed using high-quality materials to ensure long-lasting performance and resistance to wear and tear.
Irrigation Center-Drive Gearbox SYF-3M Series Model Numbers
SYF-3M-20=87rpm(20:1 ratio, 1-1/2 HP motor)
SYF-3M-30=58rpm(30:1 ratio, 1HP motor)
SYF-3M-40-4P=43rpm(40:1 ratio, 3/4 HP and 4 poles motor)
SYF-3M-40-6P=28rpm(40:1 ratio, 1/2 HP and 6 poles motor)
SYF-3-20=87rpm(20:1 ratio, without motor)
SYF-3-30=58rpm(30:1 ratio, without motor)
SYF-3-40=43rpm(40:1 ratio, without motor)
(When input speed is 1740 rpm)
Irrigation Center-Drive Gearbox SYF-3M Series Performance
1. Ratio: 20:1, 30:1, 40:1 (others available).
2. Mount bolt patterns 5” × 6”.
3. High-strength alloy steel gear all gear are heat treated.
4. Shipped with oil.
5. Includes special external crop guard seals.
6. Precision die cast tempered aluminum housing.
7. All critical electrical connections are encapsulated to resist penetration of moisture.
8. Specially designed for rugged irrigation duty.
9. 460/380 volt, 3 phase, 60/50 HZ dual voltage.
10. Thermally protected; automatic reset.
11. Internal fin cooled.
12. Totally enclosed weight easy to access top junction box.
13. Class F-rated insulation.
14. Minimal AMP draw: full load current at rated voltage, 2.3 AMPS.
15. Weight: 60 lbs (27 Kg).
16. Oil capacity: 0.53 gal (2.0 L)
17. Efficiency 90%

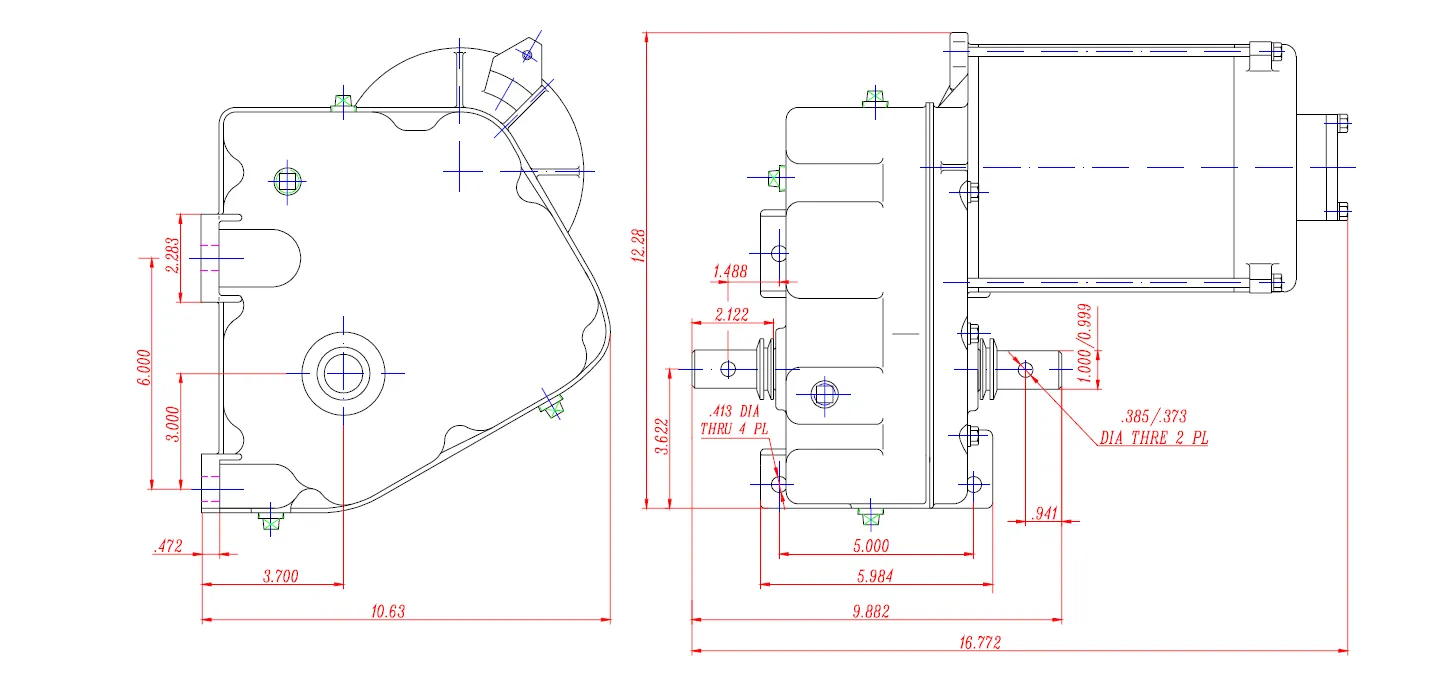

Irrigation Center-Drive Gearbox SYF-3M Series Installation and Contour Dimensions

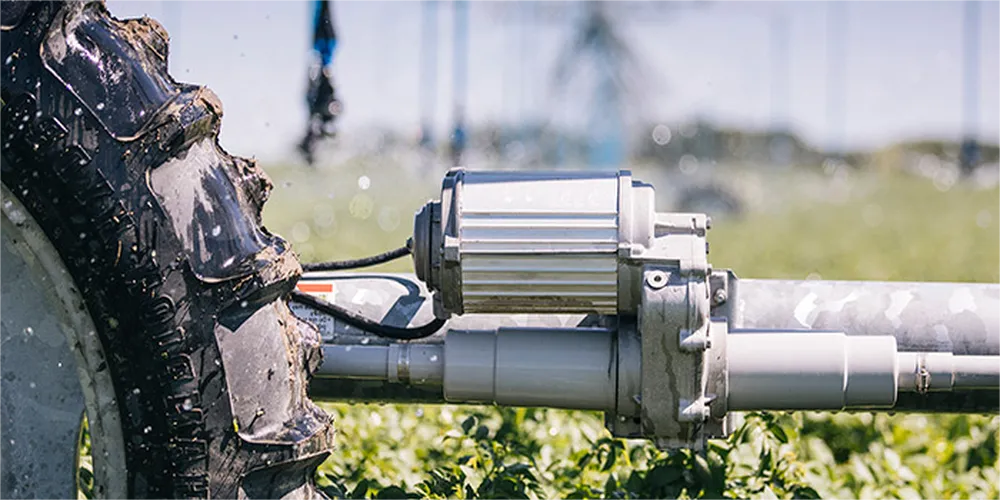

Benefits of Irrigation Center-Drive Gearbox SYF-3M Series
The SYF-3M series irrigation center-drive gearbox offers several benefits that make it a preferred choice for center pivot irrigation systems. Here are some key advantages of using this gearbox:
1. Reliable Power Transmission: The SYF-3M series gearbox provides reliable power transmission from the main drive motor to the center pivot point of the irrigation system. This ensures consistent and efficient rotation of the irrigation system, enabling even water distribution across the field.
2. Enhanced Efficiency: The irrigation center-drive gearbox is designed to optimize power transmission, resulting in improved energy efficiency. By minimizing power losses, the SYF-3M series gearbox helps reduce the overall energy consumption of the irrigation system, leading to cost savings and environmental benefits.
3. Durable Construction: The SYF-3M series irrigation gearbox is built to withstand the harsh operating conditions encountered in agricultural environments. It is constructed using high-quality materials that offer excellent durability, corrosion resistance, and protection against moisture and dust. This ensures a long lifespan and minimizes the need for frequent repairs or replacements.
4. Flexible Gear Ratio Options: The gearbox offers a range of gear ratio options, allowing users to adjust the rotational speed of the irrigation system according to specific requirements. This flexibility enables farmers to optimize the irrigation process based on factors such as crop type, soil conditions, and water availability, resulting in improved water management and crop yield.
5. Easy Maintenance: The SYF-3M series irrigation center-drive gearbox is designed for easy maintenance and servicing. It features accessible inspection points and serviceable components, making routine maintenance tasks straightforward. This reduces downtime and ensures that the irrigation system operates at its peak performance for longer periods.
6. Compatibility and Versatility: The SYF-3M series irrigation gearbox is compatible with a wide range of center pivot irrigation systems. It can be easily integrated into both new installations and existing systems, offering versatility and flexibility for farmers and irrigation professionals.

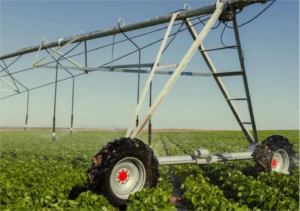

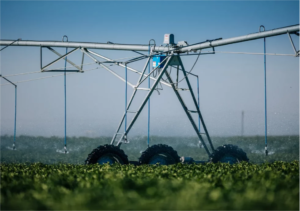

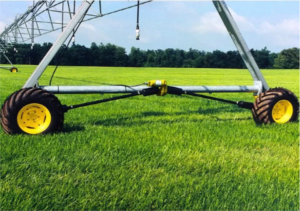

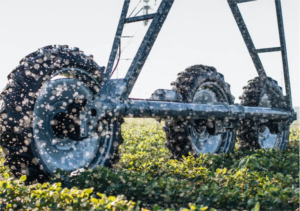

Irrigation Center-Drive Gearbox SYF-3M Series Agricultural Applications
The SYF-3M series irrigation center-drive gearbox is widely used in various agricultural applications where center pivot irrigation systems are employed. Here are some of the agricultural applications where the SYF-3M series gearbox finds utility:
(1) Field Crops: The SYF-3M series gearbox is commonly used in the irrigation of field crops such as corn, wheat, soybeans, and cotton. Its reliable power transmission and efficient rotational capabilities ensure even water distribution across large fields, promoting healthy crop growth and maximizing yield.
(2) Orchards and Vineyards: In orchards and vineyards, where precise irrigation is crucial for optimal plant health and fruit production, the SYF-3M series irrigation center-drive gearbox provides the necessary power transmission for center pivot irrigation systems. It enables controlled watering of trees and vines, ensuring uniform moisture distribution and supporting the growth of high-quality fruits.
(3) Pastures and Forage Crops: Livestock farmers rely on irrigated pastures and forage crops to provide nutritious feed for their animals. The SYF-3M series gearbox facilitates efficient irrigation of these grazing lands, helping to maintain healthy pastures and sustain a consistent food supply for livestock.
(4) Vegetable Farms: Vegetable farming often requires precise and timely irrigation to support the growth and development of crops. The SYF-3M series irrigation gearbox delivers the necessary power transmission for center pivot irrigation systems used in vegetable farms, ensuring uniform watering and enabling farmers to optimize crop production and quality.
(5) Nurseries and Greenhouses: Nurseries and greenhouses require controlled irrigation systems to nurture young plants and create optimal growing conditions. The SYF-3M series irrigation center-drive gearbox is utilized in center pivot irrigation setups in these settings, enabling efficient water distribution and promoting healthy plant growth in controlled environments.
Irrigation Center-Drive Gearbox SYF-3M Series Proper Maintenance
Proper maintenance of the SYF-3M series irrigation center-drive gearbox is essential to ensure its optimal performance and longevity. Here are some key maintenance practices to follow:
1. Regular Inspection: Conduct regular visual inspections of the gearbox to identify any signs of wear, damage, or leaks. Inspect the housing, seals, bearings, gears, and shafts for any abnormalities. Look for excessive play, corrosion, or any other visible issues. Pay attention to unusual noises or vibrations during operation, as they may indicate potential problems.
2. Cleanliness: Keep the gearbox clean and free from dirt, debris, and moisture. Regularly remove any accumulated dirt or foreign particles from the exterior surfaces. Use compressed air or a soft brush to clean hard-to-reach areas. Avoid using high-pressure water or harsh chemicals that may damage the gearbox components.
3. Lubrication: Proper lubrication is crucial for the smooth operation and longevity of the gearbox. Follow the manufacturer’s recommendations for lubrication intervals and use the specified lubricant type and grade. Apply lubricant to all the necessary lubrication points, including bearings, gears, and shafts. Ensure that the lubricant is distributed evenly.
4. Lubricant Level: Monitor the lubricant level regularly and maintain it within the recommended range. Check the gearbox’s oil sight glass or dipstick to ensure the proper amount of lubricant. If the level is low, add the appropriate lubricant until it reaches the recommended level.
5. Seal Inspection: Check the seals for any signs of leakage or damage. Replace worn or damaged seals promptly to prevent contamination and loss of lubricant. Ensure that the seals are properly seated and functioning effectively.
6. Temperature Monitoring: Monitor the operating temperature of the gearbox regularly. If the temperature exceeds the recommended range, investigate and address the underlying causes, such as inadequate lubrication, excessive load, or improper ventilation. High temperatures can lead to accelerated wear and reduced gearbox life.
We Also Offer Other Agricultural Gearboxes
We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.
Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
