Irrigation Center-Drive Gearbox SYF-4 Series

Irrigation Center-Drive Gearbox SYF-4 Series

The SYF-4 Series Irrigation Center-Drive Gearbox is a specialized component used in irrigation systems to drive the center pivot or linear irrigation machines. It is designed to provide reliable and efficient power transmission, ensuring smooth operation and precise control of the irrigation system.

The SYF-4 Series gearbox is specifically engineered to meet the demanding requirements of agricultural irrigation applications. It offers high torque capacity and durability to withstand the harsh operating conditions typically encountered in the field. The gearbox is capable of handling heavy loads and is designed to operate efficiently even under continuous use.

One of the key features of the SYF-4 Series irrigation center-drive gearbox is its compact and robust design. It is constructed using high-quality materials that provide excellent strength and resistance to wear and tear. The gearbox is also designed to be weatherproof, protecting it from the elements and ensuring reliable performance in various environmental conditions.

The irrigation gearbox incorporates precision gears and bearings to ensure smooth and reliable power transmission. It is equipped with a high-performance motor that delivers sufficient torque to drive the irrigation system effectively. The gearbox’s design also minimizes energy losses, maximizing the overall efficiency of the irrigation system.

Irrigation Center-Drive Gearbox SYF-4 Series Model Numbers

SYF-4M=4.75rpm
(254:1 ratio, 1/8 HP 48V DC motor)
(When input speed is 1200 rpm)
SYF-4=6.8rpm (254:1 ratio, without motors)
(Accepts NEMA 48-C face motors with 1/2” shafts 1-9/16” long)
(When input speed is 1740 rpm)

Irrigation Center-Drive Gearbox SYF-4 Series Performance

1. Ratio: 254:1 (others available).
2. Torque capacity: 3,500 lb. in (395 N.m).
3. Mount bolt patterns 3.375” ×4.5”.
4. High-strength alloy steel gear, all gear are heat treated.
5. Shipped with oil.
6. Includes special external crop guard seals.
7. Precision die cast tempered aluminum housing.
8. Includes easy installing shock absorbing motor to gearbox coupler.
9. Accepts NEMA 48-C face motors with 0.5” shafts, 1-9/16” long.
10. Weight: 15.5 lbs (7.1 Kg).
11. Oil capacity: 0.13 gal (0.5 L)
12. Efficiency 90%

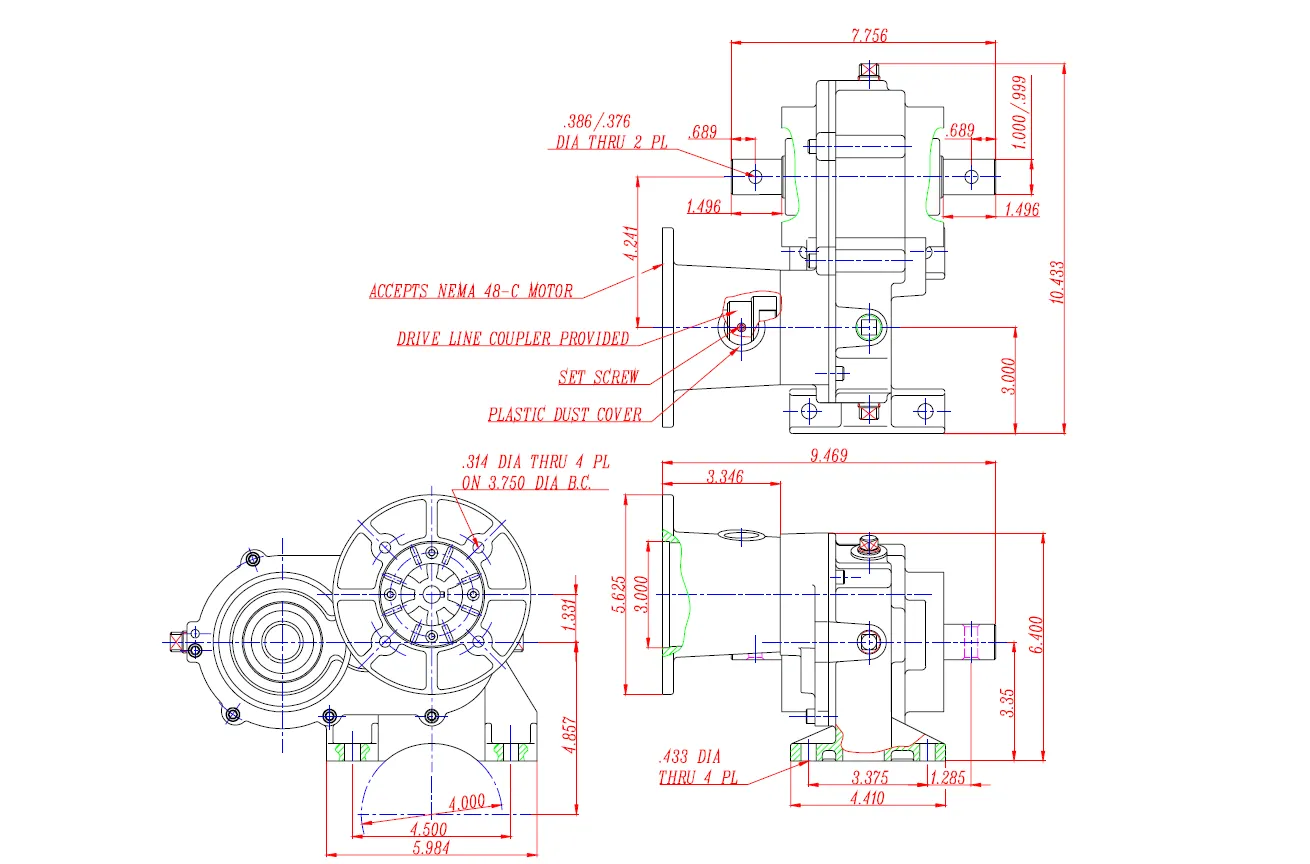

Irrigation Center-Drive Gearbox SYF-4 Series Installation and Contour Dimensions

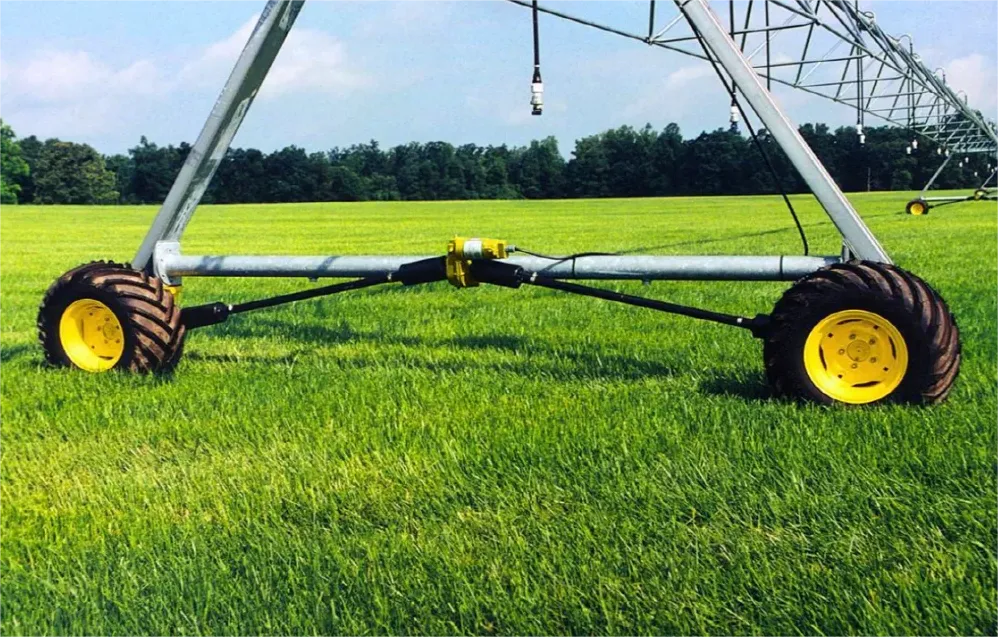

Irrigation Center-Drive Gearbox SYF-4 Series Features

The SYF-4 Series Irrigation Center-Drive Gearbox offers several advantages that make it a preferred choice for irrigation systems. Here are some key advantages of the SYF-4 Series gearbox:

1. High Torque Capacity: The gearbox is designed to handle high torque loads, making it suitable for driving center pivot and linear irrigation machines. It can effectively transmit power to move heavy irrigation equipment, ensuring smooth and efficient operation.

2. Durability and Reliability: The SYF-4 Series irrigation gearbox is constructed using high-quality materials and precision engineering, providing excellent durability and long-term reliability. It is designed to withstand the challenging conditions of agricultural irrigation, including exposure to dust, moisture, and varying temperatures.

3. Efficient Power Transmission: The irrigation gearbox incorporates high-performance gears and bearings, ensuring efficient power transmission with minimal energy losses. This translates to improved overall system efficiency, reducing energy consumption and operating costs.

4. Compact and Robust Design: The SYF-4 Series gearbox features a compact and robust design, making it suitable for installation in limited spaces and harsh environments. Its weatherproof construction protects it from the elements, ensuring consistent performance and longevity.

5. Low Maintenance: The SYF-4 Series irrigation center-drive gearbox requires minimal maintenance, reducing downtime and maintenance costs. Its robust construction and high-quality components contribute to its long-term reliability, allowing for uninterrupted irrigation operations.

6. Versatility: The SYF-4 Series gearbox is versatile and can be used with different types of irrigation machines, including center pivot and linear systems. Its adaptability makes it suitable for a wide range of agricultural applications.

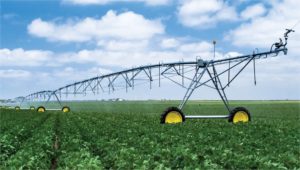

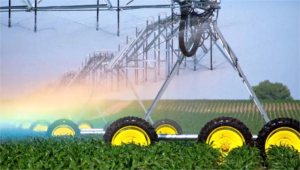

Irrigation Center-Drive Gearbox SYF-4 Series Applications

The SYF-4 Series Irrigation Center-Drive Gearbox is specifically designed for use in various irrigation applications. Here are some common irrigation applications where the SYF-4 Series gearbox can be utilized:

(1) Center Pivot Irrigation Systems: Center pivot irrigation systems are widely used in large-scale agricultural operations. The SYF-4 Series gearbox can efficiently drive the center pivot towers, ensuring uniform water distribution over a circular area. It provides the necessary torque and control to move the irrigation system smoothly and accurately.

(2) Linear Irrigation Systems: Linear irrigation systems are commonly used in rectangular or square fields. The SYF-4 Series gearbox is suitable for driving linear irrigation machines, allowing for precise movement along the field’s length. It helps in achieving consistent water application and coverage across the entire field.

(3) Crop Irrigation: The SYF-4 Series gearbox can be employed in various crop irrigation applications, including field crops, orchards, vineyards, and vegetable production. It enables efficient water distribution to crops, ensuring optimal moisture levels for growth and maximizing yield.

(4) Sports Fields and Turf Irrigation: Sports fields, golf courses, and turf areas require precise irrigation to maintain their quality and health. The SYF-4 Series gearbox can drive the irrigation equipment used in these applications, providing accurate water distribution and coverage to keep the playing surfaces in optimal condition.

(5) Pasture and Forage Irrigation: Livestock operations often rely on irrigated pastures and forage crops for animal feed. The SYF-4 Series gearbox can be used in irrigation systems for these applications, ensuring consistent water supply to support healthy and nutritious forage growth.

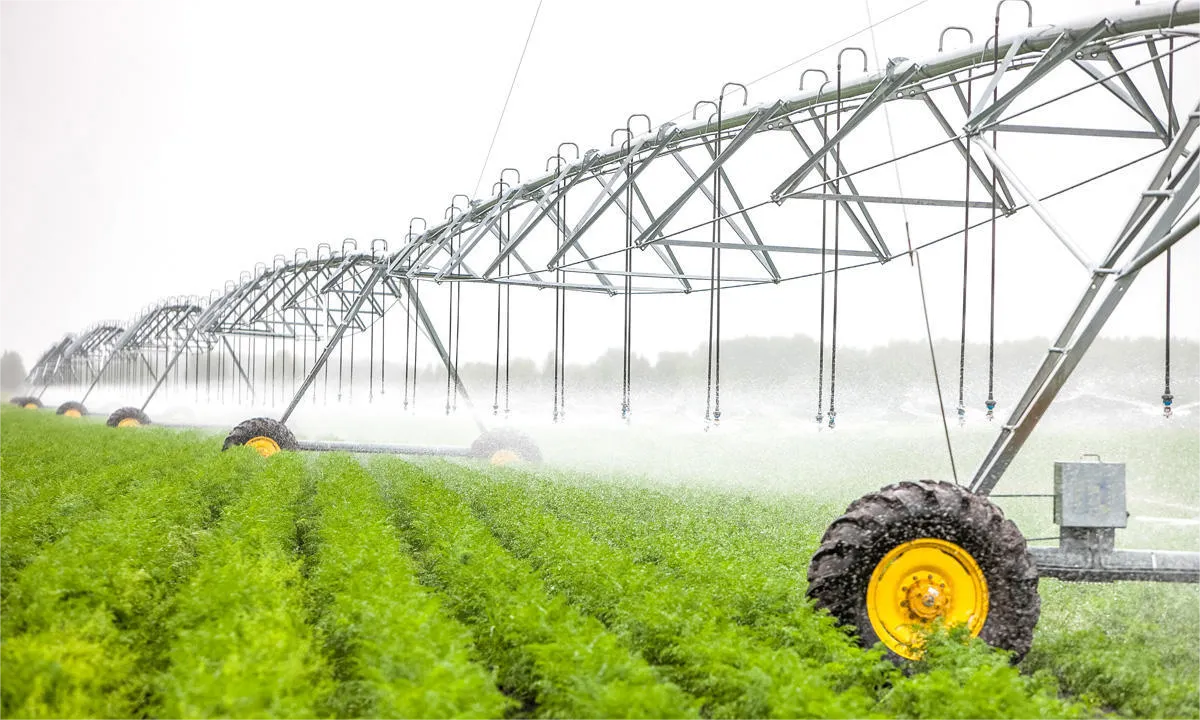

Irrigation Center-Drive Gearbox SYF-4 Series Common Troubleshooting

While the SYF-4 Series Irrigation Center-Drive Gearbox is designed to provide reliable performance, there can be instances where troubleshooting is required to address any issues that may arise. Here are some common troubleshooting steps for the SYF-4 Series gearbox:

1. Inspect for Mechanical Obstructions: Check for any physical obstructions or debris that may be hindering the movement of the gearbox or the irrigation system. Clear away any obstructions and ensure that the gearbox and associated components have free and unobstructed movement.

2. Check Electrical Connections: Examine the electrical connections of the gearbox, including the motor and control wiring. Loose or faulty connections can cause operational issues. Make sure all connections are secure and properly tightened.

3. Lubrication: Insufficient or improper lubrication can lead to increased friction and wear in the gearbox. Check the lubrication levels and ensure that the gearbox is properly lubricated according to the manufacturer’s recommendations. If necessary, add or replace the lubricant.

4. Motor Overheating: If the motor of the gearbox is overheating, it may indicate an electrical or mechanical problem. Check for excessive load on the motor or any issues with the power supply. Ensure that the motor is properly sized for the intended application.

5. Noise and Vibration: Unusual noise or excessive vibration from the gearbox may indicate misalignment, worn components, or other mechanical issues. Inspect the gearbox for any signs of damage or wear, and address the issue accordingly. It may be necessary to realign or replace components.

6. Gearbox Seal Leakage: Leakage of lubricant or water from the gearbox seals can cause damage and affect the performance of the gearbox. Inspect the seals for any signs of leakage and replace them if needed.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.

Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
