The SYF-4M Series Irrigation Center-Drive Gearbox is an advanced and efficient mechanism designed specifically for irrigation systems. It plays a crucial role in controlling the movement and operation of center-pivot irrigation systems, ensuring precise and reliable water distribution across large agricultural fields.

Center-pivot irrigation is a widely used method for watering crops, especially in large-scale farming. It involves a long-spanning arm with sprinklers that rotate around a central pivot, creating a circular pattern of water distribution. The SYF-4M Series Gearbox serves as the central drive system that powers and controls the movement of the irrigation system.

The gearbox is built with high-quality materials and precision engineering to withstand the demanding conditions of agricultural operations. It is designed to be durable, reliable, and resistant to corrosion and wear. The SYF-4M Series Irrigation Center-Drive Gearbox delivers high torque output, enabling it to efficiently drive the entire center-pivot irrigation system. This ensures smooth and consistent rotation, allowing for uniform water distribution across the field.

Irrigation Center-Drive Gearbox SYF-4M Series Model Numbers

SYF-4M=4.75rpm
(254:1 ratio, 1/8 HP 48V DC motor)
(When input speed is 1200 rpm)
SYF-4=6.8rpm (254:1 ratio, without motors)
(Accepts NEMA 48-C face motors with 1/2” shafts 1-9/16” long)
(When input speed is 1740 rpm)

Irrigation Center-Drive Gearbox SYF-4M Series Performance

1. Ratio: 254:1 (others available).
2. Mount bolt patterns 3.375” × 4.5”.
3. High-strength alloy steel gear, all gear are heat treated.
4. Shipped with oil.
5. Includes special external crop guard seals.
6. Precision die cast tempered aluminum housing.
7. All critical electrical connections are encapsulated to resist penetration of moisture.
8. Specially designed for rugged irrigation duty.
9. Permanent magnet DC motor, 1/8 HP, 48Volt.
10. Class F-rated insulation.
11. Minimal AMP draw: full load current at rated voltage, 2.45 AMPS.
12. Weight: 21.5 lbs (9.8 Kg).
13. Oil capacity: 0.13 gal (0.5 L)
14. Efficiency 90%

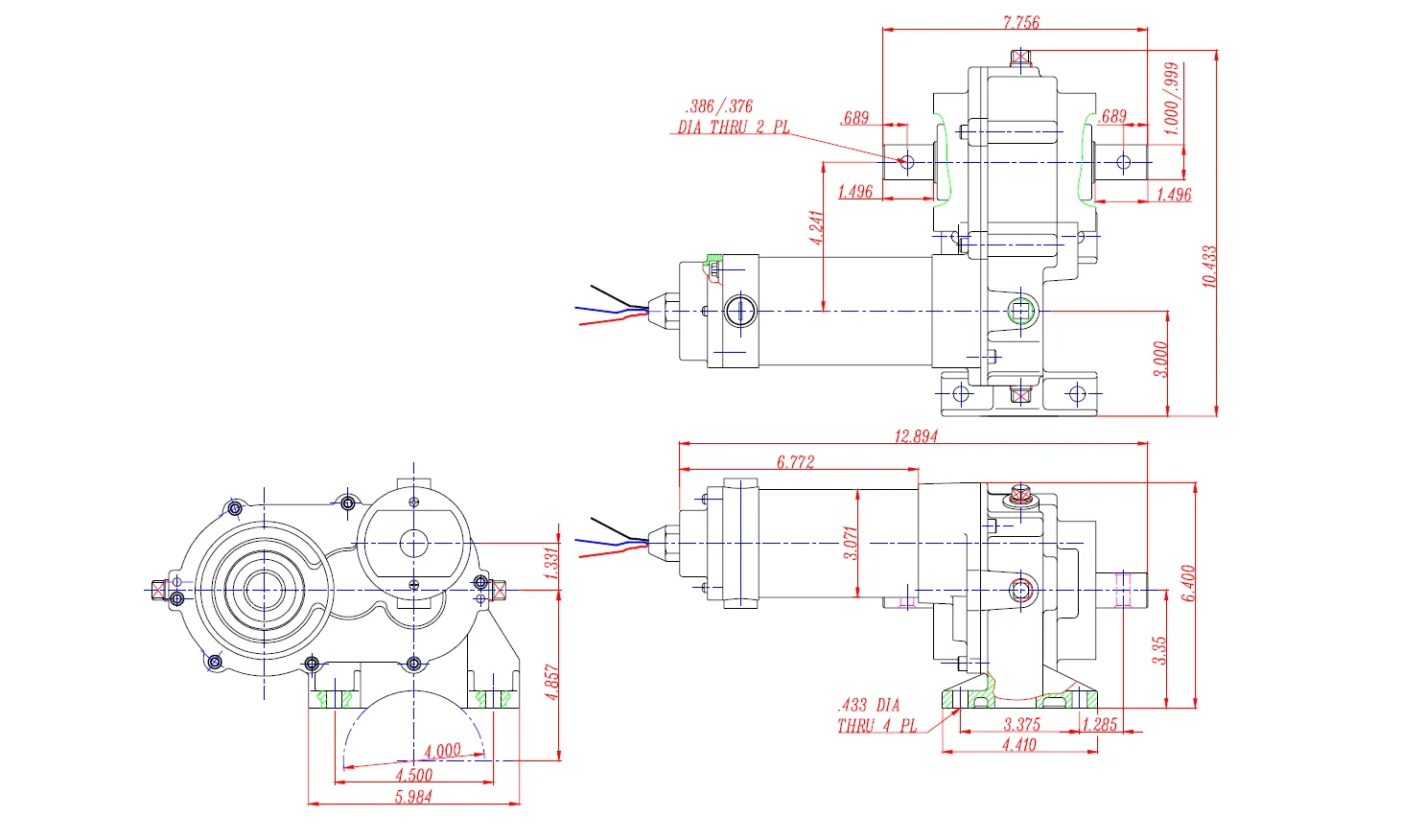

Installation and Contour Dimensions

Advantages

The SYF-4M Series Irrigation Center-Drive Gearbox offers several advantages when used in center-pivot irrigation systems. Here are the key advantages of using the SYF-4M Series gearbox:

1. Precise Water Distribution: The gearbox enables precise control over the rotational speed of the center-pivot irrigation system. This allows farmers to distribute water evenly across the field, ensuring uniform coverage and minimizing the risk of overwatering or underwatering. Precise water distribution promotes optimal crop growth and reduces water waste.

2. Enhanced Crop Yield: By providing consistent and uniform water distribution, the SYF-4M Series Gearbox helps optimize crop yield. Proper moisture levels throughout the field contribute to healthier plants, improved nutrient absorption, and more efficient photosynthesis. This leads to increased crop productivity and higher yields.

3. Water Conservation: With precise speed control, the gearbox helps farmers optimize water usage by tailoring it to the specific needs of crops and soil conditions. By avoiding excessive water application and reducing runoff, the SYF-4M Series Irrigation Gearbox supports water conservation efforts, ensuring sustainable use of this vital resource.

4. Energy Efficiency: The SYF-4M Series Gearbox is designed to be energy-efficient, minimizing power consumption during operation. By reducing energy requirements, farmers can achieve cost savings and environmental benefits, contributing to sustainable farming practices.

5. Increased System Reliability: The gearbox’s robust construction and durability ensure reliable operation even under challenging conditions. This reliability minimizes downtime, maintenance needs, and potential system failures, allowing farmers to maintain consistent irrigation schedules and optimize crop growth.

6. Adaptability to Different Field Configurations: The SYF-4M Series Irrigation Center-Drive Gearbox is compatible with various center-pivot irrigation system setups, making it adaptable to different field configurations. This versatility allows farmers to implement the gearbox in diverse farming landscapes, ensuring effective water distribution regardless of the field’s size or shape.

Common Applications

The SYF-4M Series Irrigation Center-Drive Gearbox is specifically designed for irrigation applications, particularly in center-pivot irrigation systems. It plays a crucial role in driving and controlling the movement of the irrigation system, ensuring efficient water distribution across agricultural fields. Here are the main irrigation applications of the SYF-4M Series Gearbox:

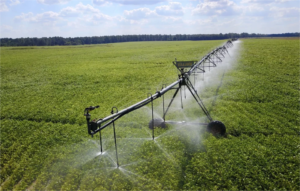

(1) Center-Pivot Irrigation Systems: The SYF-4M Series Gearbox is primarily used in center-pivot irrigation systems, which are widely employed in large-scale agricultural operations. It serves as the central drive system that powers the movement of the irrigation system, allowing for uniform water distribution over a circular area.

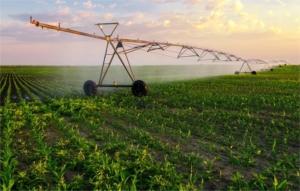

(2) Field Irrigation: The Irrigation Center-Drive Gearbox is utilized for irrigating various field crops, such as grains, oilseeds, vegetables, and fruits. It enables precise control over the speed and rotation of the center-pivot irrigation system, ensuring optimal moisture levels and promoting healthy crop growth.

(3) Pasture Irrigation: The SYF-4M Series Gearbox is suitable for irrigating pastures, ensuring consistent water supply for grasses and other forage crops. This promotes healthy forage growth, supporting livestock feed production and maintaining the overall health of grazing animals.

(4) Orchard and Vineyard Irrigation: Center-pivot irrigation systems powered by the SYF-4M Series Gearbox are commonly used in orchards and vineyards. The gearbox enables precise water distribution to fruit trees and grapevines, ensuring optimal growth, fruit development, and vineyard health.

(5) Greenhouse Irrigation: The irrigation gearbox can be employed in greenhouse operations, where controlled irrigation is essential for nurturing plants in a controlled environment. It enables efficient water distribution to greenhouse-grown crops, helping maintain ideal moisture levels and supporting healthy plant growth.

(6) Large-Scale Irrigation Projects: Suitable for large-scale irrigation projects, where efficient water distribution over expansive fields is necessary. It provides reliable movement and control to center-pivot irrigation systems, supporting efficient irrigation practices and maximizing productivity.

Irrigation Center-Drive Gearbox SYF-4M Series Installation Operations

Installing the SYF-4M Series Irrigation Center-Drive Gearbox requires careful attention to ensure proper installation and reliable operation. Here are the general steps:

Prepare the Mounting Location:

Choose a suitable location for mounting the gearbox on a stable and level surface. Ensure that the area provides adequate space for the gearbox and allows for easy access during installation and future maintenance.

Position the Gearbox:

Place the gearbox in the desired location, aligning it with the center-pivot irrigation system. Properly aligned with the drive mechanism of the irrigation system.

1. Secure the Gearbox:

Use appropriate mounting brackets and hardware to secure the gearbox in place. Follow the manufacturer’s guidelines and recommendations for the specific gearbox model being installed. Firmly fixed and properly supported to prevent movement during operation.

2. Connect the Drive Shaft:

Align the drive shaft of the gearbox with the drive mechanism of the center-pivot irrigation system. Connect the drive shaft of the gearbox to the drive mechanism, ensuring a secure and proper fit. Follow the manufacturer’s instructions for connecting the drive shaft, as it may vary depending on the specific system and gearbox design.

3. Verify Alignment:

Check the alignment of the gearbox and drive mechanism to ensure. Misalignment can lead to operational issues and premature wear. Make any necessary adjustments to ensure proper alignment, following the manufacturer’s guidelines.

4. Check Lubrication:

Some gearboxes require proper lubrication for optimal performance and longevity. Check the manufacturer’s recommendations for lubrication, if applicable. Properly lubricated according to the specified intervals and requirements.

4. Electrical Connections:

If the gearbox has electrical components, such as motors or sensors, follow the manufacturer’s instructions for making the necessary electrical connections. Ensure that all electrical connections are secure and comply with applicable electrical codes and safety standards.

5. Test the Gearbox:

Once the installation is complete, conduct a thorough test of the gearbox and center-pivot irrigation system. Verify that the gearbox is operating smoothly and the irrigation system is functioning as intended. Make any necessary adjustments or troubleshooting as required.
