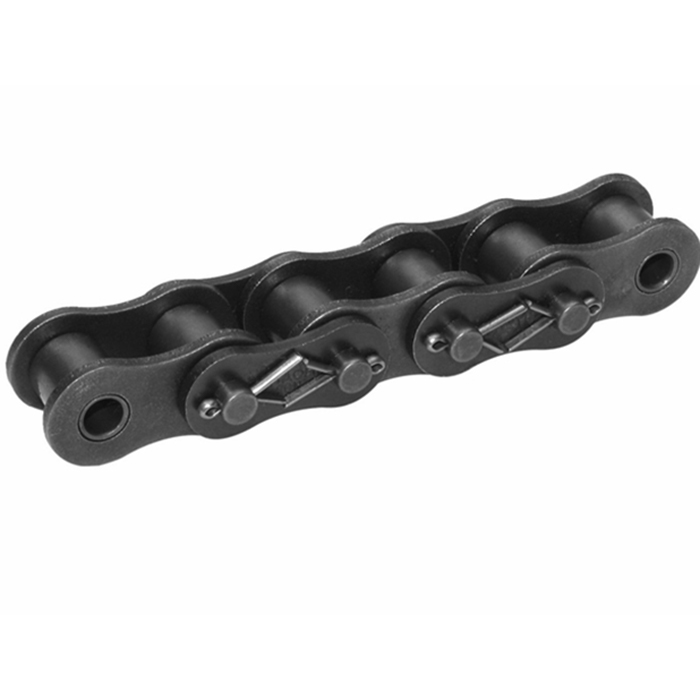

ISO|DIN ANSI heavy duty series cottered type roller chains

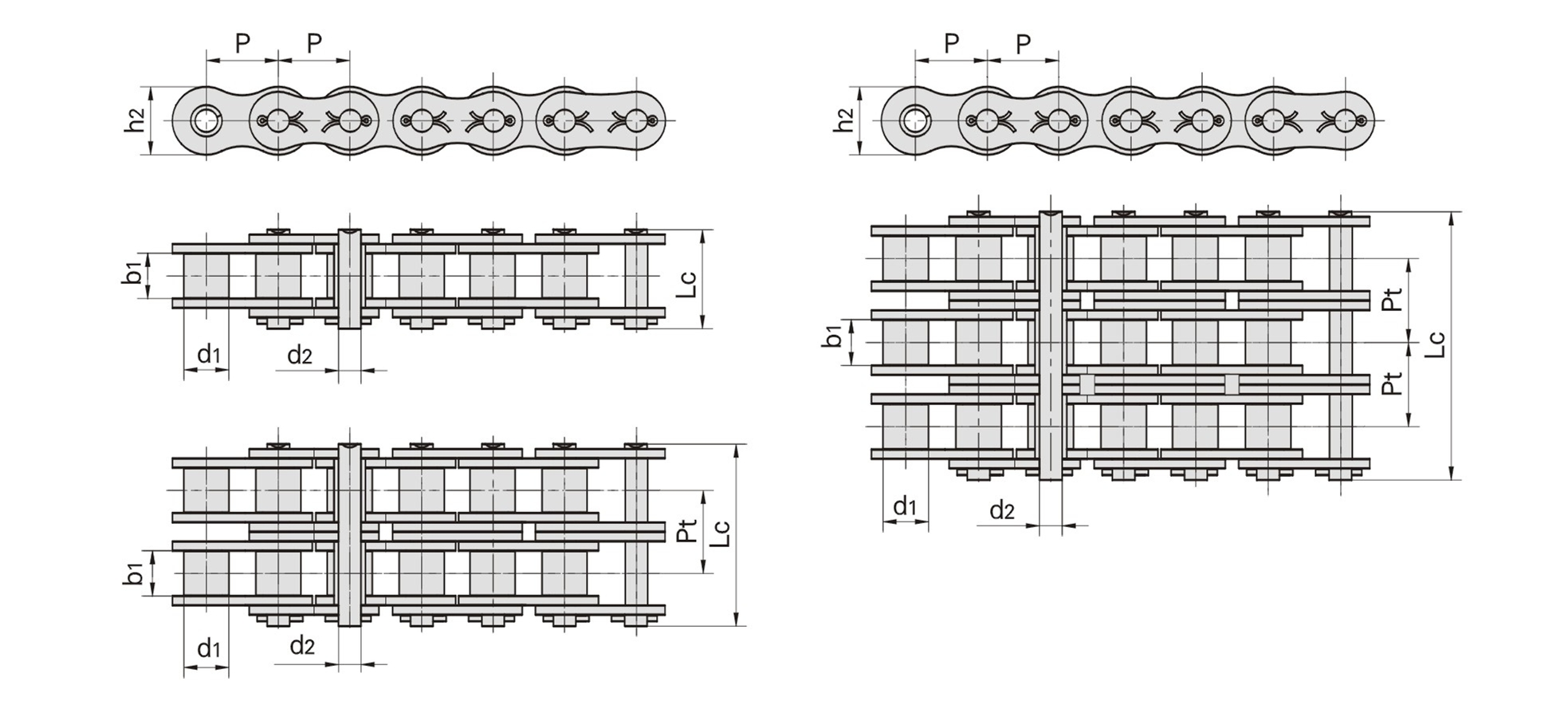

Dimensional parameters
DIN ISO CHAIN NO. | ANSI CHAIN NO. | PITCH | ROLLER DIA. | WIDTH BETWEEN INNER PLATES | PIN DIA. | PIN LENGTH | INNER CHAIN PLATE DEPTH | ROW SPACING | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
P | D1 MAX | B1 MIN | D2 MAX | L MAX | LC MAX | H2 MAX | PT | Q MIN | Q0 | Q | ||
MM | MM | MM | MM | MM | MM | MM | MM | KN | KN | KG/M | ||
10AH-1 | 50H | 15.875 | 10.16 | 9.4 | 5.08 | 22.1 | 23.4 | 150.9 | 22.2 | 27.7 | 1.25 | |
12AH-1 | 60H | 19.05 | 11.91 | 12.57 | 5.94 | 29.2 | 31 | 18 | 31.8 | 39.8 | 1.87 | |
16AH-1 | 80H | 25.4 | 15.88 | 15.75 | 7.92 | 36.2 | 37.7 | 24 | 56.7 | 67.6 | 3.1 | |
20AH-1 | 100H | 31.75 | 19.05 | 18.9 | 9.53 | 43.6 | 46.9 | 30 | 88.5 | 105.5 | 4.52 | |
24AH-1 | 120H | 38.1 | 22.23 | 25.22 | 11.1 | 53.5 | 57.5 | 35.7 | 127 | 150.4 | 6.6 | |
28AH-1 | 140H | 44.45 | 25.4 | 25.22 | 12.7 | 57.6 | 62.2 | 41 | 172.4 | 204.4 | 8.3 | |
32AH-1 | 160H | 50.8 | 28.58 | 31.55 | 14.27 | 68.2 | 73 | 47.8 | 226.8 | 266.8 | 10.3 | |
12AH-2 | 60H-2 | 19.05 | 11.91 | 12.57 | 5.94 | 55.3 | 57.1 | 18 | 26.11 | 63.6 | 84.2 | 13.71 |
16AH-2 | 80H-2 | 25.4 | 15.88 | 15.75 | 7.92 | 68.8 | 70.3 | 24 | 32.59 | 113.4 | 142.5 | 6.15 |
20AH-2 | 100H-2 | 31.75 | 19.05 | 18.9 | 9.53 | 82.7 | 86 | 30 | 39.09 | 117 | 209.9 | 9.03 |
24AH-2 | 120H-2 | 38.1 | 22.23 | 25.22 | 11.1 | 102.4 | 106.4 | 35.7 | 48.87 | 254 | 296.4 | 13.13 |
28AH-2 | 140H-2 | 44.45 | 25.4 | 25.22 | 12.7 | 109.8 | 114.4 | 41 | 52.2 | 344.8 | 399.5 | 16.6 |
32AH-2 | 160H-2 | 50.8 | 28.58 | 31.55 | 14.27 | 130.1 | 134.9 | 47.8 | 61.9 | 453.6 | 528.6 | 20.2 |
12AH-3 | 60H-2 | 19.05 | 11.91 | 12.57 | 5.94 | 81.4 | 83.2 | 18 | 26.11 | 95.4 | 113.9 | 5.54 |
16AH-3 | 80H-2 | 25.4 | 15.88 | 15.75 | 7.92 | 101.4 | 102.9 | 24 | 32.59 | 170.1 | 203.4 | 9.42 |
20AH-3 | 100H-2 | 31.75 | 19.05 | 18.9 | 9.53 | 121.8 | 125.1 | 30 | 39.09 | 265.5 | 314.8 | 12.96 |
24AH-3 | 120H-2 | 38.1 | 22.23 | 25.22 | 11.1 | 151.2 | 155.2 | 35.7 | 48.87 | 381 | 444.4 | 19.64 |
28AH-3 | 140H-2 | 44.45 | 25.4 | 25.22 | 12.7 | 162 | 166.6 | 41 | 52.2 | 517.2 | 598.4 | 24.9 |
32AH-3 | 160H-2 | 50.8 | 28.58 | 31.55 | 14.27 | 192 | 196.8 | 47.8 | 61.9 | 680.4 | 787.3 | 30.1 |
