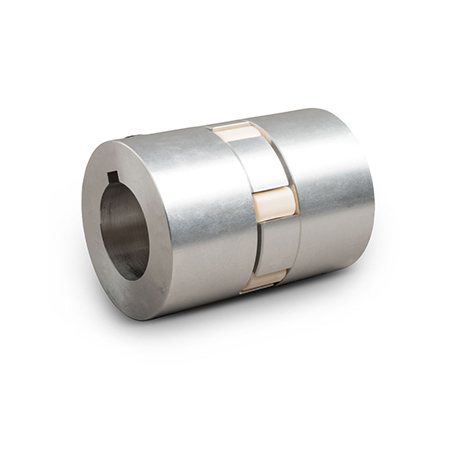

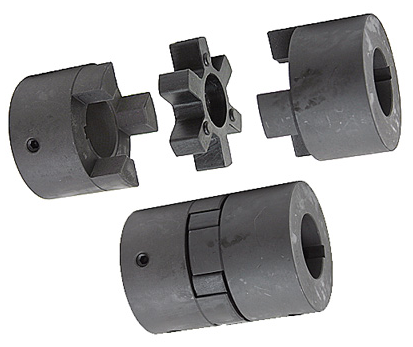

Power-trans offers a comprehensive lineup of Jaw Type couplings tailored for diverse industrial needs, ensuring dependable performance without the need for lubrication. These couplings feature the industry’s widest selection of stock bore/keyway combinations, including spline bore options, and adhere to AGMA, SAE, and DIN standards. Constructed with hubs available in materials like sintered metal, aluminum, bronze, steel, stainless steel, and ductile iron, they cater to various application requirements such as corrosion resistance and strength.

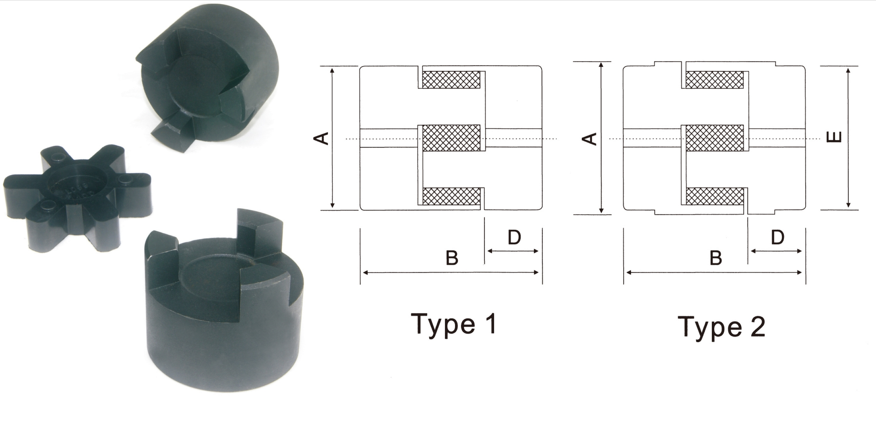

Diameter Data
| SIZE | TYPE | A | B | D | E | Std bore | Bore metric Min Max | Bore inch Min Max | weight
(kg) |
||
| L035 | 1 | 16 | —— | 3 | 3 | 8 | 1/8″ | 3/8″ | 0.12 | ||
| L050 | 1 | 28 | 43.2 | 15.6 | —— | 6 | 6 | 15 | 3/16″ | 5/8″ | 0.16 |
| L070 | 1 | 35 | 50.8 | 19 | —— | 9 | 9 | 19 | 3/16″ | 3/4__ | 0.4 |
| L075 | 1 | 45 | 54.7 | 21 | —— | 9 | 9 | 25 | 3/16″ | 1″ | 0.55 |
| L090 | 1 | 54 | 54.7 | 21 | —— | 9 | 9 | 28 | 3/16″ | 11/8″ | 0.8 |
| L095 | 1 | 54 | 63.7 | 25.5 | —— | 9 | 9 | 28 | 3/8″ | 11/8″ | 0.88 |
| L099 | 1 | 64.5 | 72.5 | 27 | —— | 12 | 12 | 35 | 7/16″ | 13/8″ | 1.37 |
| L100 | 1 | 64.5 | 88.5 | 35 | —— | 12 | 12 | 35 | 7/16″ | 13/8″ | 1.75 |
| L110 | 1 | 85 | 108 | 43 | —— | 15 | 15 | 48 | 1/2″ | 17/8″ | 3.62 |
| L150 | 1 | 96 | 115.4 | 45 | —— | 15 | 15 | 48 | 5/8″ | 17/8″ | 4.9 |
| L190 | 2 | 115 | 133.4 | 54 | 101.6 | 19 | 19 | 55 | 5/8″ | 21/4″ | 7.7 |
| L225 | 2 | 127 | 153.4 | 64 | 108 | 19 | 19 | 65 | 5/8″ | 25/8″ | 10 |
Key Features
Versatility in Bore/Keyway Combinations:
- Largest variety available in the industry, covering AGMA, SAE, and DIN standards.
- Includes spline bore configurations for specific needs.
Material Diversity:
- Hubs crafted from diverse materials to match application demands.
Torque and Size Range:
- Available in 24 sizes, spanning a broad torque spectrum:
1.From 3.5 in-lbs (0.4 Nm) to 170,004 in-lbs (19,209 Nm) maximum torque rating.
2.Bore sizes range from 0.125 inches (4.45 mm) up to 7 inches (178 mm), accommodating various shaft dimensions.
Applications:
Ideal for light, medium, and heavy-duty electrical motor and internal combustion power transmission applications.
Commonly deployed in industrial equipment such as pumps, gearboxes, compressors, blowers, mixers, and conveyors.
Advantages:
Maintenance-Free Operation: Eliminates the need for lubrication, reducing maintenance efforts.
Reliability: Ensures consistent and dependable performance.
Wide Application Range: Suitable for a diverse array of industrial sectors and equipment types.
High Torque Handling: Capable of managing substantial torque loads, making them suitable for heavy-duty operations.
Power-trans Jaw Type couplings are engineered to meet rigorous industrial demands, offering durability, ease of installation, and minimal maintenance. Their extensive range of sizes, torque capacities, and bore configurations makes them a versatile choice across a wide spectrum of industrial applications.
