JF Type large Heavy Load Ball Screw
JF Type large Heavy Load Ball Screw

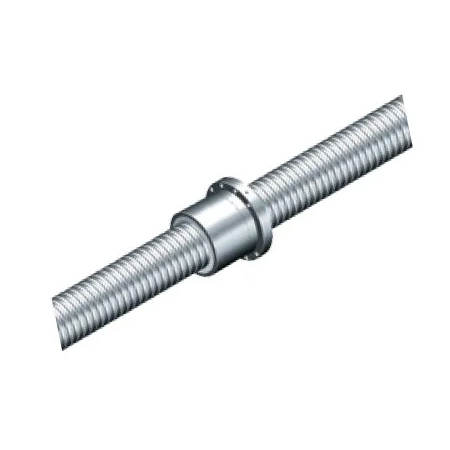

The JF-type large heavy-load ball screw is a game-changing linear motion component designed to deliver exceptional power and precision in a wide range of industrial applications. With its robust construction and advanced ball screw technology, this product is the perfect solution for industries that require high-load capacity and precise linear motion.
The JF-type large, heavy-load ball screw offers power, precision, and reliability for industrial applications that demand high-load capacity and precise linear motion. With its high load capacity, precision ball screw technology, and robust construction, it provides exceptional performance in demanding operating conditions. By following the recommended usage methods and maintenance guidelines, users can maximize the lifespan and efficiency of the JF-type large, heavy-load ball screw, making it an essential component for their industrial processes. Experience the power and precision of the JF-type large, heavy-load ball screw and elevate your linear motion applications to new levels of performance and productivity.

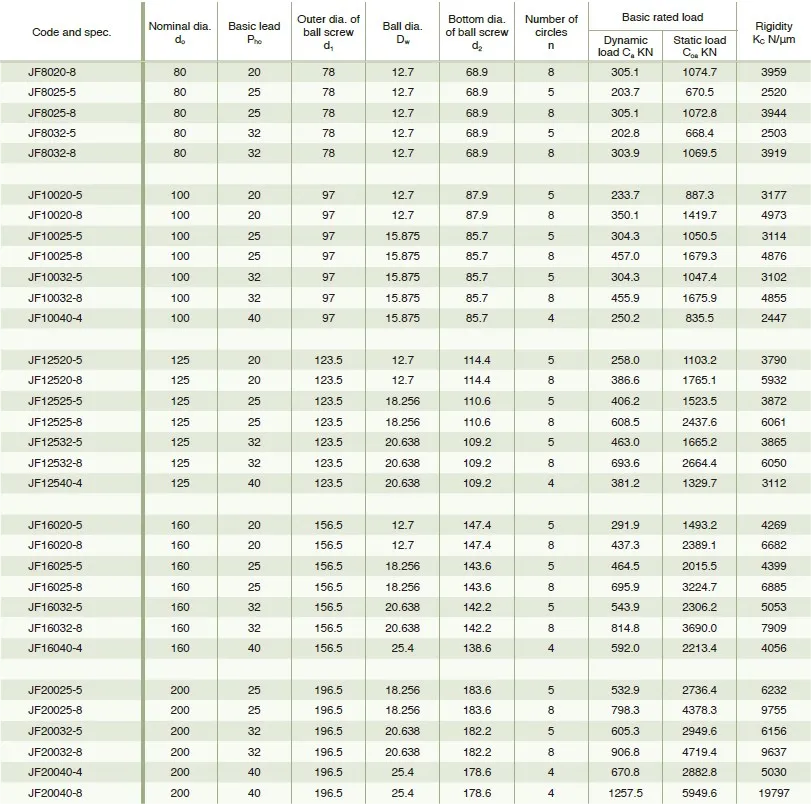

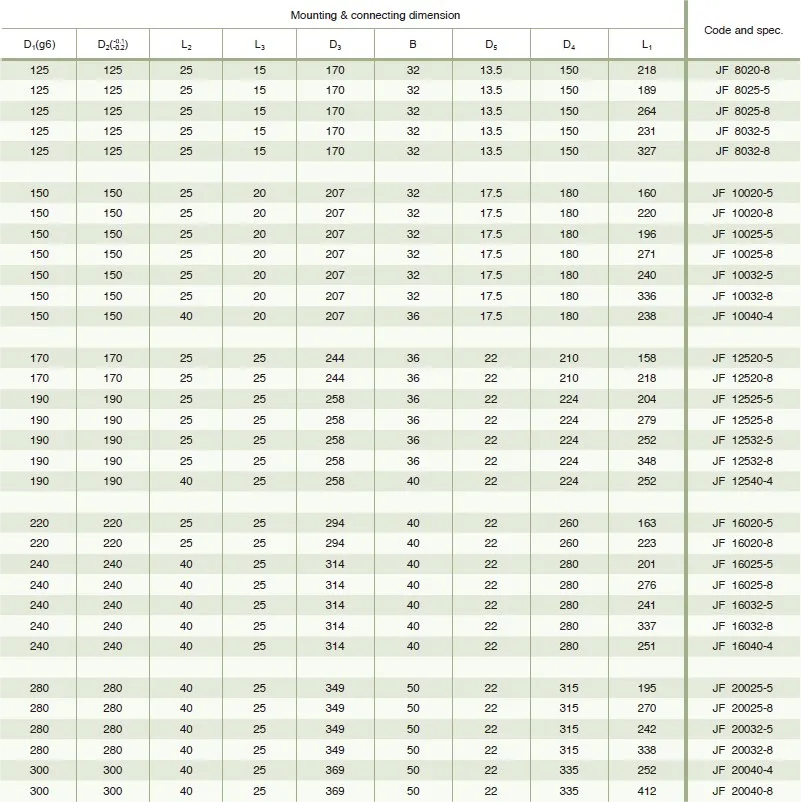

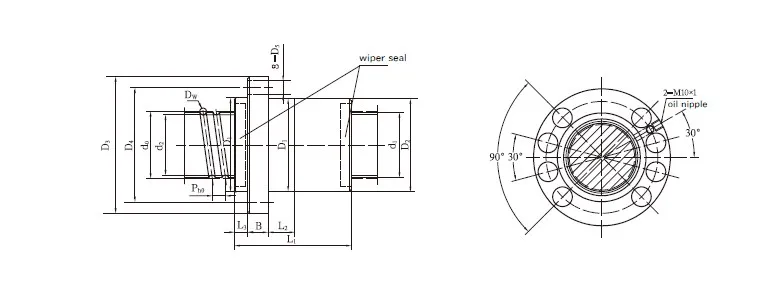

Parameter :
Notes:
1. Kc is the theoretical calculation value when preload Fp is 0,1 Ca and axial load F is 0.3Ca.
2. When axial load F is not equal to 0.3Ca,
In formula:
K is the rigidity value shown in Table.
3. This type of ball screw can be used in high-temperature working environments.
Usage Method :
Installation: To install the Ball Screw, securely mount it onto the designated machine frame or surface using appropriate fasteners. Ensure proper alignment and parallelism with other components for optimal performance.
Lubrication: Apply the recommended lubricant to the ball screw assembly to reduce friction and ensure smooth motion. Follow the manufacturer’s guidelines for lubrication intervals and use the appropriate type of lubricant to maintain optimal performance.
Load Distribution: When applying loads to the ball screw, distribute the weight evenly to prevent excessive stress on specific areas. This ensures optimal load-bearing performance and extends the product’s lifespan.
Motion Control: Utilize compatible motion control systems, such as servo motors or stepper motors, to drive Ball Screw. Ensure proper alignment and synchronization between the driving mechanism and the ball screw for precise and efficient linear motion.
