HY-VO Inverted tooth chains
- Hy-Vo silent chains are installed the camshafts of mid- to large-size motorcycles and vehicles.
- Hy-Vo chains can be used as a direct replacement for a stock motorcycle roller chain, serving as an aftermarket upgrade on a high-performance motorcycle camshaft to increase the chain’s tension capacity.
- Hy-Vo chains are suitable for high-speed transmissions.
Dimensional parameters
节距 | 链宽 | 销轴长度 | 孔中心到齿尖 距离 | 链板高度 | 链板厚度 | 导向型式 | 片数 | 极限拉伸载荷 | 平均拉伸载荷 | 每米长重 | |
链号 Chain No. | P itch | Chain
width |
Pin
length |
Distence from hole center to tooth | Plate depth | Plate thickness | Guide type | Number of
plates |
UItimate tensile strength | Average
tensile strength |
Weight per meter |
P | b
max |
L
max |
h1 | h2
max |
T | n | Q
min |
Qo | q | ||
mm | mm | mm | mm | mm | mm | kN/bf | kN | kg/m | |||
HV6 | 19.05 | 73.5 | 813 | 10.50 | 20.90 | 2.0 | 外 Outsit 17X18 | 174/39100 | 200 | 7.4 | |
HV8 | 25.40 | 48.5 | 56.9 | 14.06 | 27.74 | 3.0 | 外 Outsit | 7X8 | 187 /42022 | 200 | 7.0 |

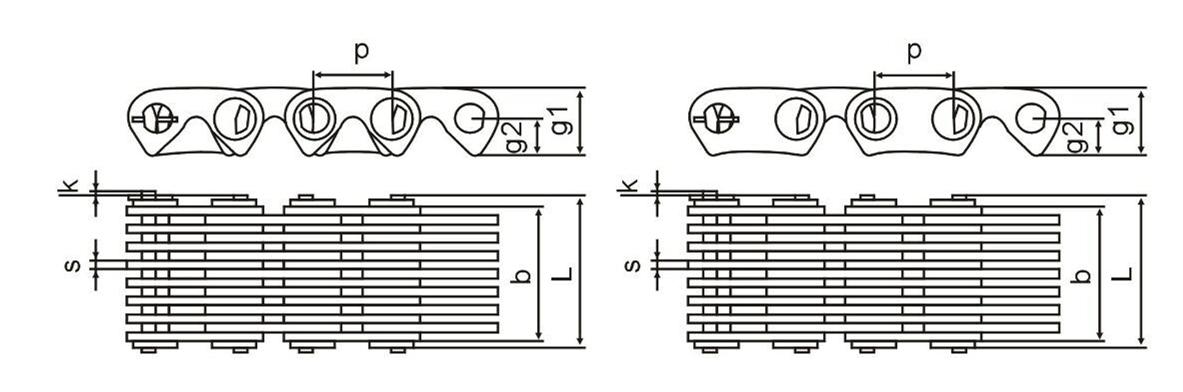

KH series HY-VO Inverted tooth chains
Dimensional parameters
链号 | 节距 | 工作宽度 | 销轴长度 | |||||
P | 片数 | b | I | g1 | g2 | S | K | |
mm | min | max | max | |||||
KH 015A | 9.525 | 10 | 12.5 | 19.9 | 9.2 | 5.2 | 1.5 | 2.0 |
KH 025 | 17 | 26.2 | 31.7 | |||||
KH 320A | 12.7 | 13 | 17.2 | 21.3 | 12.3 | 6.7 | 1.5 | 2.5 |
KH 335 | 25 | 39.1 | 44.7 | |||||
KH 425 | 13 | 26.7 | 33.2 | |||||
KH 440 | 15.875 | 21 | 43.0 | 49 | 15.4 | 8.4 | 2.0 | 3.0 |
KH 450 | 25 | 51.0 | 57.5 | |||||
KH 535 | 17 | 34.7 | 42 | |||||
KH 540 | 19.05 | 21 | 43.0 | 50 | 18.4 | 10 | 2.0 | 3.0 |
KH 550 | 25 | 51.0 | 58 | |||||
KH 650 | 25.4 | 17 | 51.0 | 59 | 25 | 13.1 | 3.0 | 4.5 |
KH6100 | 33 | 102.0 | 110 | |||||
KH 1065 | 38.1 | 21 | 64.0 | 74 | 36.6 | 19.7 | 3.0 | 6.0 |
