Angular Gearboxes – Replacement of Comer Code L-150J
Angular Gearboxes – Replacement of Comer Code L-150J

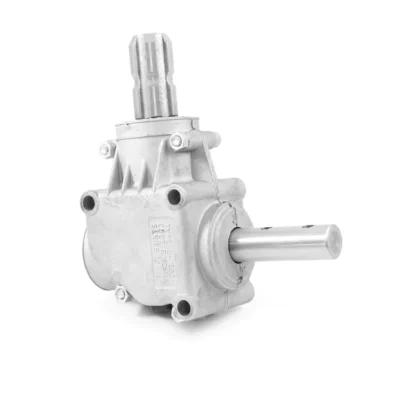

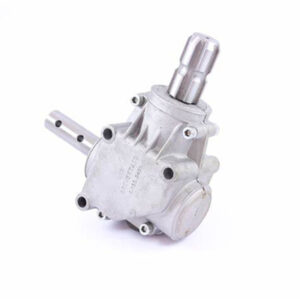

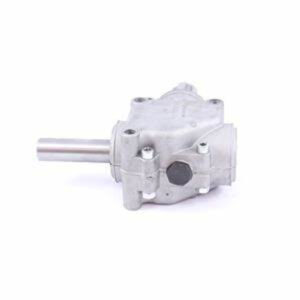

| L-150J Angular Gearboxes Model: T-L150J | |
 |
 |
| Rotation The rotation is defined as either clocwise or counter-clockwise by looking “into” the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component Albero Z: Rot. antioraria 1 3/8″z6 Albero X: Rot. oraria cilindrico Diam.25mm con doppio foro Diam.8mm Material: Aluminum Dry weight: Kg 3,8 Type of application: 1:1 Ratio Input power rate: 11Cv-8Kw (540RPM) Supplied without lubricantDifferent shafts rotation available (please ask our TECHNICAL DEPARTMENT |
|
Technical features:
- The T-L150J gearbox ratio is 1:1.93.
- The input shaft is 1-3/8″ round bore.
- The output shaft has tapered splines, bushing (15 spline bushingA-U0139700000).
- The gearbox is rated at 60 hp at 540 rpm and has a CCW (Counter clockwise) rotation.
- Fits Comer Rotary Cutters.
- Order output shaft has tapered splines, bushing separately. (15 spline bushing:U0139700000).
- Mounting pattern is 203.2mm.
- Application: Fertilizers
- Body Material: Aluminum
- Entry Shaft: ΡΤΟ Φ35/Ζ6 (13/8″ z6)
- Exit Shaft: Φ25mm with two vertical bores. Keyway not available.
- Entry Power at 540rpm: 8KW
- Lubrication: Grease. Not included.
PTO Shafts for Angular Gearboxes
Agricultural equipment includes a variety of PTO shafts. Each one is connectting with yokes at each end and rotates between 540 and 1,000 rpm. A safety shield is commonly installed on both ends of a PTO shaft to protect the operator. These protective shields are also working in tractors and agricultural implements, and they ensure maximum efficiency. Added safety is also working for the use of internal yokes.
Design the agricultural PTO gearbox to change the output speed of a PTO shaft. Used as a decreasing or increasing ratio gearbox. With the decrease ratio gearbox, it reduces the PTO shaft’s speed from 1000 rpm to 540 rpm, allowing you to use equipment designed for 540 rpm. On the other hand, an increasing ratio gearbox increases the speed of the PTO shaft from 540 rpm to 1000 rpm.
