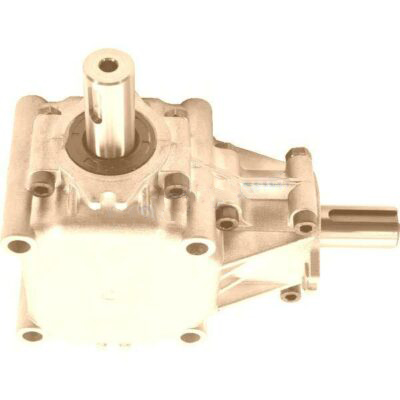

Angular Gearboxes – Replacement of Comer Code L-25A
Description |
Angular Gearbox – Replacement of Comer Code L-25A
|
---|---|
Application |
|
Consists of |
|
Technical information |
|
Max. output torque |
22.7 daNm
|
Contains oil |
No
|
Max. oil capacity |
0.35 l
|
Max. oil change interval |
500 h
|
Oil SAE viscosity grade |
80W-90
|
Housing material |
Aluminium
|
Weight |
4.1 kg
|
Gear arrangement Increasing |
33 – 34
|
Input power kW / HP Increasing |
11 / 15 kW/HP
|
Input shaft Increasing |
Z
|
Input shaft Reducing |
X – Y
|
Input power KW / HP Reducing |
7 / 9.5 kW/HP
|
Output Torque DaNm Increasing |
9.9 daNm
|
Ratio Increasing |
1 : 1,9
|
Ratio Reducing |
1,9 : 1
|
Shaft X |
25 (B)
|
Shaft Y |
25 (B)
|
Shaft Z |
1 3/8″ (6) (C)
|
